Transmission Control Module: Installation

NOTE: If transmission control module is being replaced with a new or replacement unit, the Pinion Factor and Quick Learn procedures must be performed. (Refer to STANDARD PROCEDURE  )

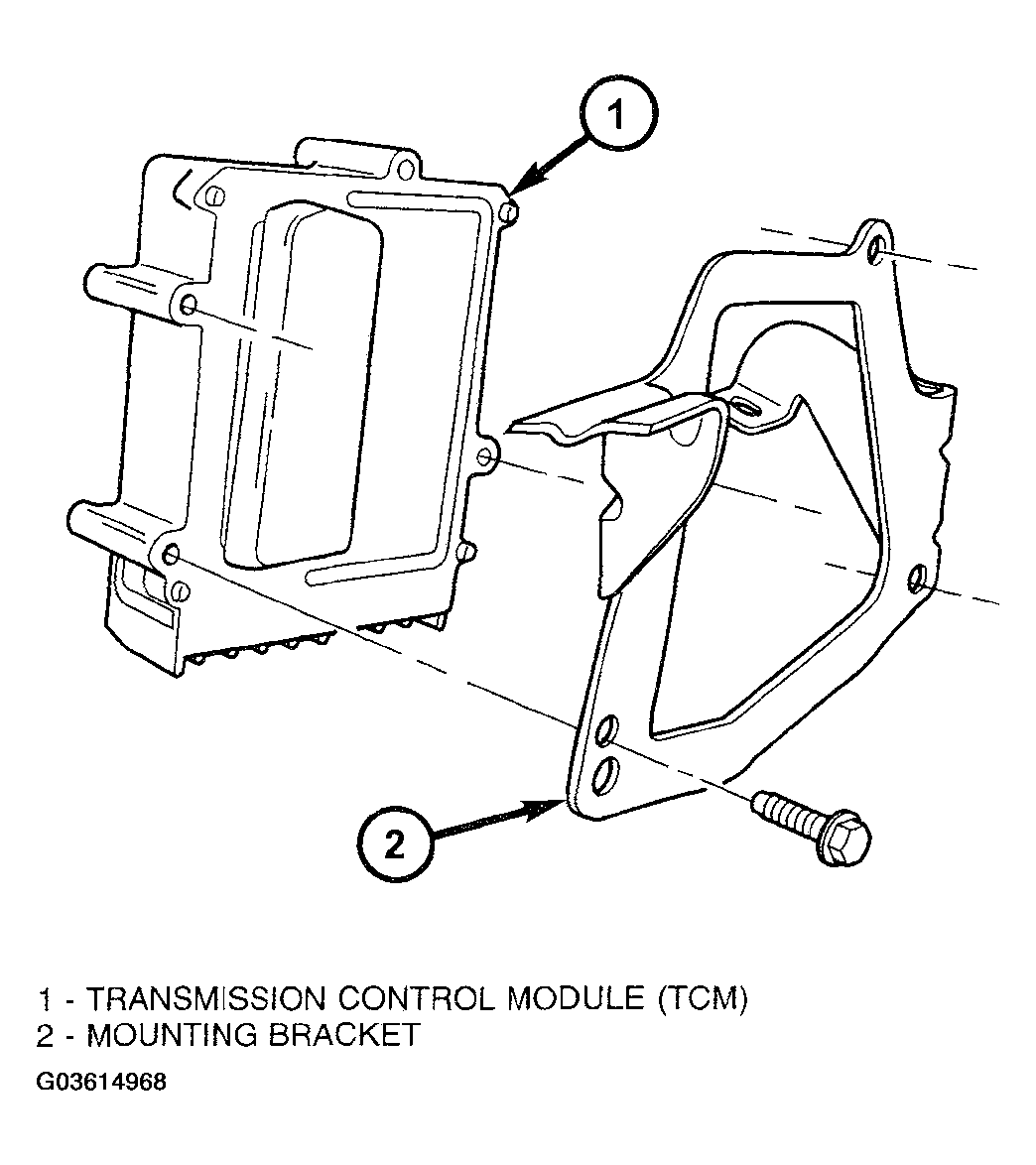

  1. Install TCM mounting bracket to TCM (Figure) and torque screws to 11 N.m (72 in. lbs.).
  2. Install TCM 60-way connector and torque to 4 N.m (35 in. lbs.).

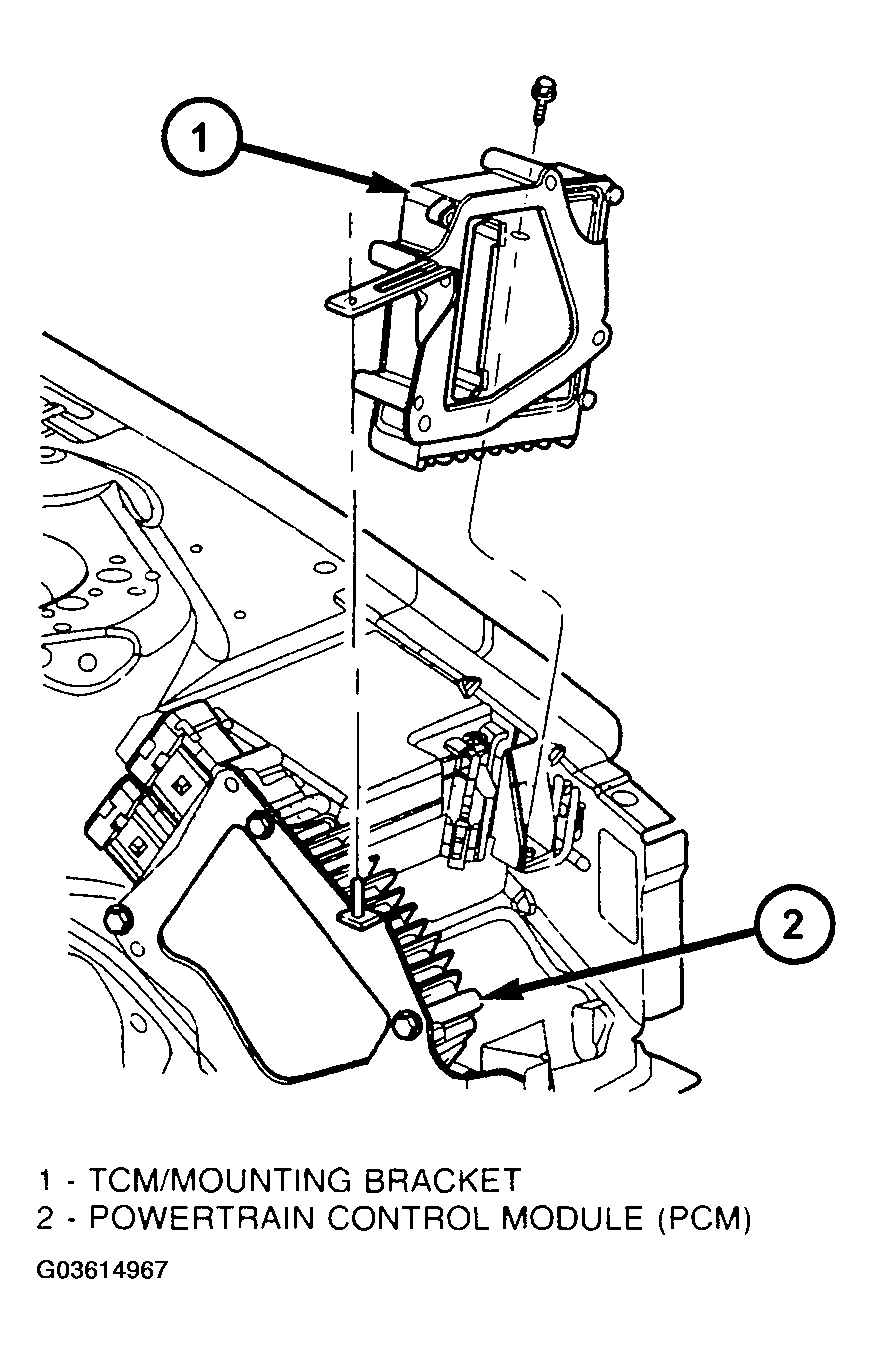

  3. Install TCM/bracket into position (Figure).
  4. Install and torque TCM bracket-to-PDC bracket mounting screw to 5 N.m (40 in. lbs.).
  5. Install air cleaner assembly into position.
  6. Install and torque air cleaner-to-PCM stud nut to 5 N.m (40 in. lbs.).
  7. Connect battery negative cable.
