Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C101 (2.7L) (Black, 14 Pin) | Left rear of engine compartment. See Figure. |
| C101 (3.5L) (Black, 14 Pin) | Left side of engine compartment. See Figure. |
| C103 (Black, 20 Pin) | Left rear of engine compartment. See Figure. |
| C104 (Green, 43 Pin) | Behind left kick panel. See Figure. |
| C105 (Dark Gray, 4 Pin) | Left front of engine compartment. See Figure. |
| C105 (Dark Gray, 4 Pin) | Left front of engine compartment. See Figure. |
| C108 (Light Gray, 34 Pin) | Left front of engine compartment. See Figure. |
| C108 (Light Gray, 34 Pin) | Left front of engine compartment. See Figure. |
| C111 (Green, 16 Pin) | Behind left kick panel. See Figure. |
| C113 (2.7L) (Black, 10 Pin) | Left rear of engine. See Figure. |
| C113 (3.5L) (Black, 10 Pin) | Left rear of engine. See Figure. |
| C114 (Black, 43 Pin) | At left kick panel. See Figure. |
| C115 (Black, 20 Pin) | Left rear of engine. See Figure. |
| C200 (Light Gray, 43 Pin) | Under left side of dash. See Figure. |
| C201 (Light Gray, 4 Pin) | At base of left "A" pillar. See Figure. |
| C202 (White, 2 Pin) | Behind right kick panel. See Figure. |
| C203 (Tan, 2 Pin) | Behind right kick panel. See Figure. |
| C204 (Light Gray, 20 Pin) | Under center of dash. See Figure. |

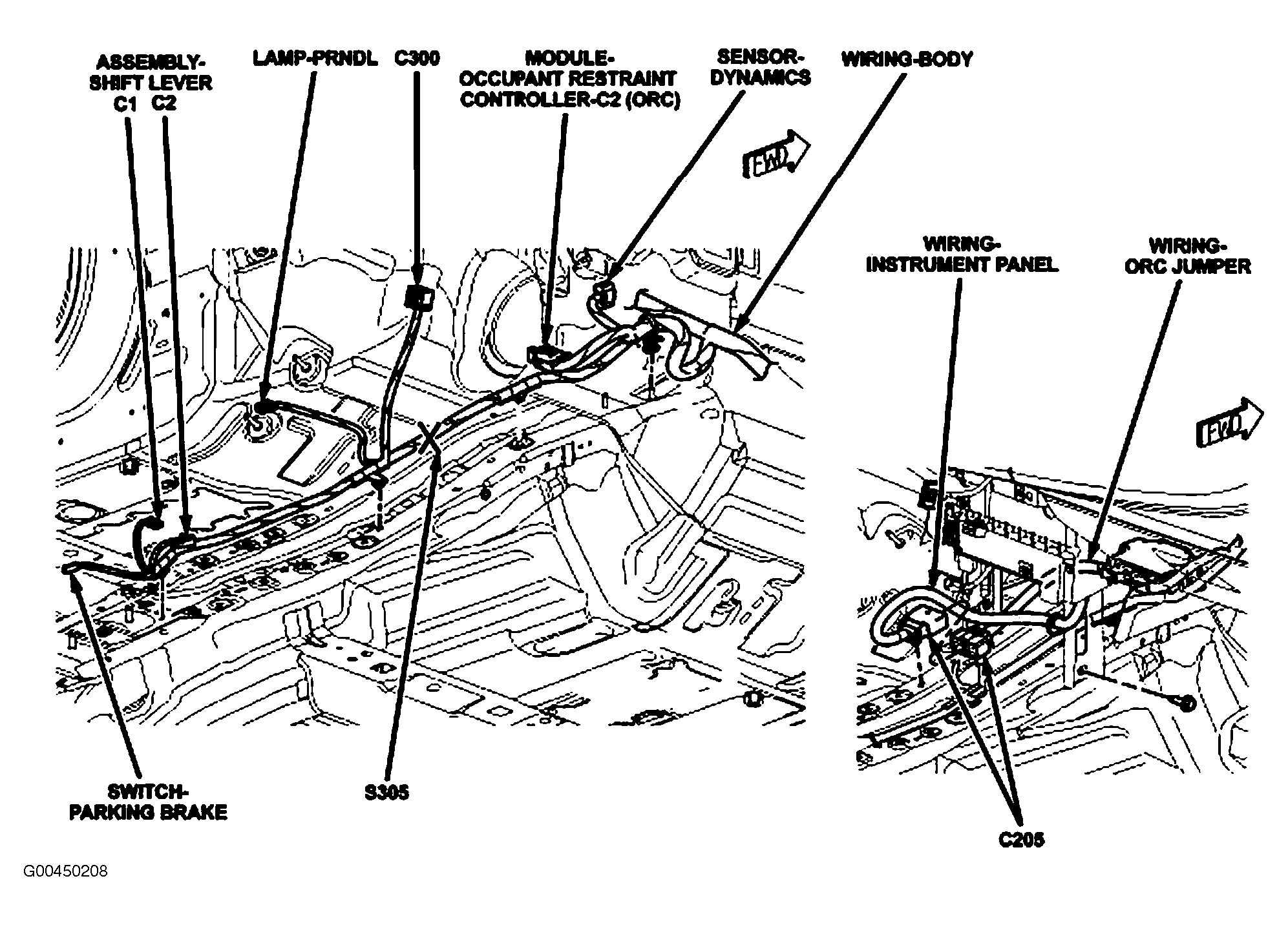

| C205 (Black, 16 Pin) | Under front of center console. See Figure. |
| C300 (Light Gray, 10 Pin) | Under front of center console. See Figure. |
| C301 (Green, 16 Pin) | Behind right kick panel. See Figure. |
| C302 (Black, 14 Pin) | Behind left kick panel. See Figure. |
| C303 (Black, 14 Pin) | Behind right kick panel. See Figure. |
| C304 (Green, 16 Pin) | Behind left kick panel. See Figure. |
| C305 (Black, 14 Pin) | Behind right kick panel. See Figure. |
| C306 (Black, 3 Pin) | Left rear corner of vehicle. See Figure. |
| C308 (White, 14 Pin) | At left "B" pillar. See Figure. |
| C309 (White, 14 Pin) | At right "B" pillar. See Figure. |
| C311 (Yellow, 4 Pin) | At base of left "B" pillar. See Figure. |
| C312 (Light Gray, 10 Pin) | At base of left "B" pillar. See Figure. |
| C313 (Yellow, 4 Pin) | At base of right "B" pillar. See Figure. |
| C314 (Light Gray, 12 Pin) | At base of right "B" pillar. See Figure. |
