Fuel Level Sending Unit Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE  in this section.

1. Depress retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector (Fig 1).

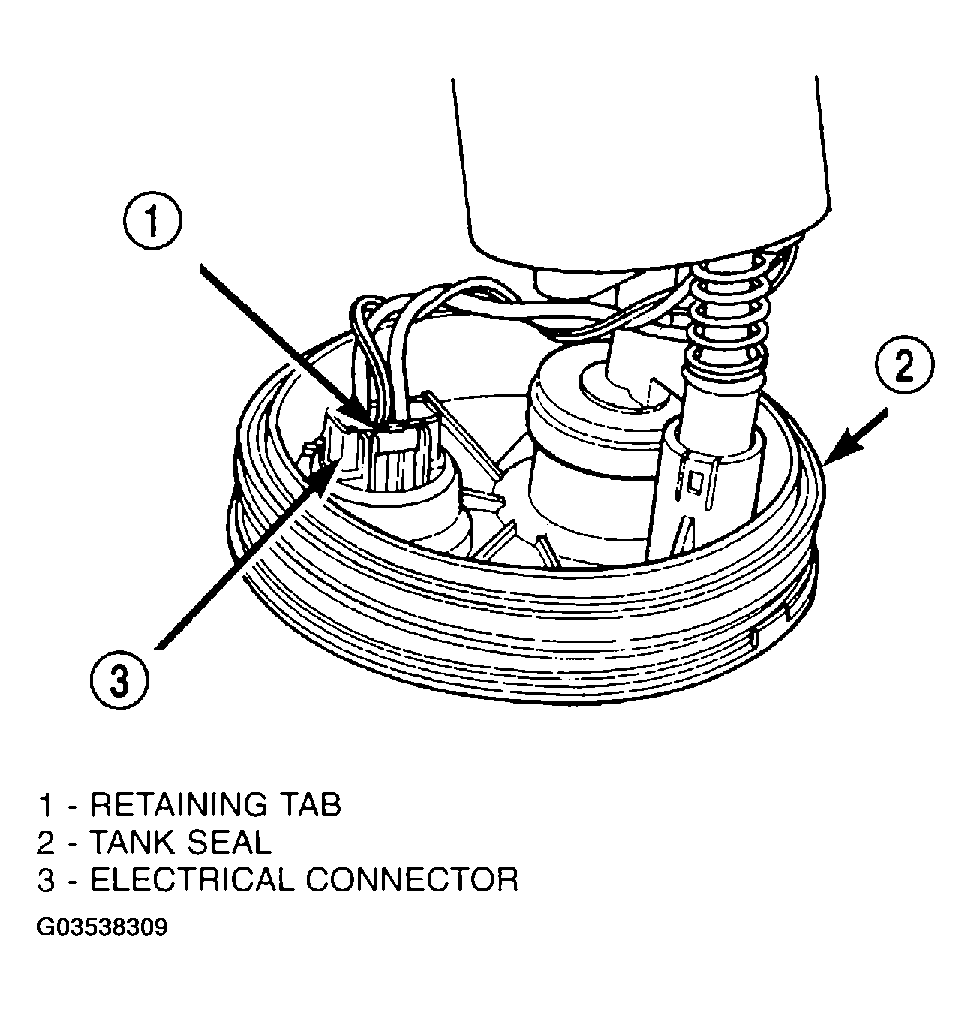

   Fig 1: Locating Fuel Pump/Level Sensor Electrical Connector

   Courtesy of DAIMLERCHRYSLER CORP.
2. Pull off blue locking wedge (Fig 2).

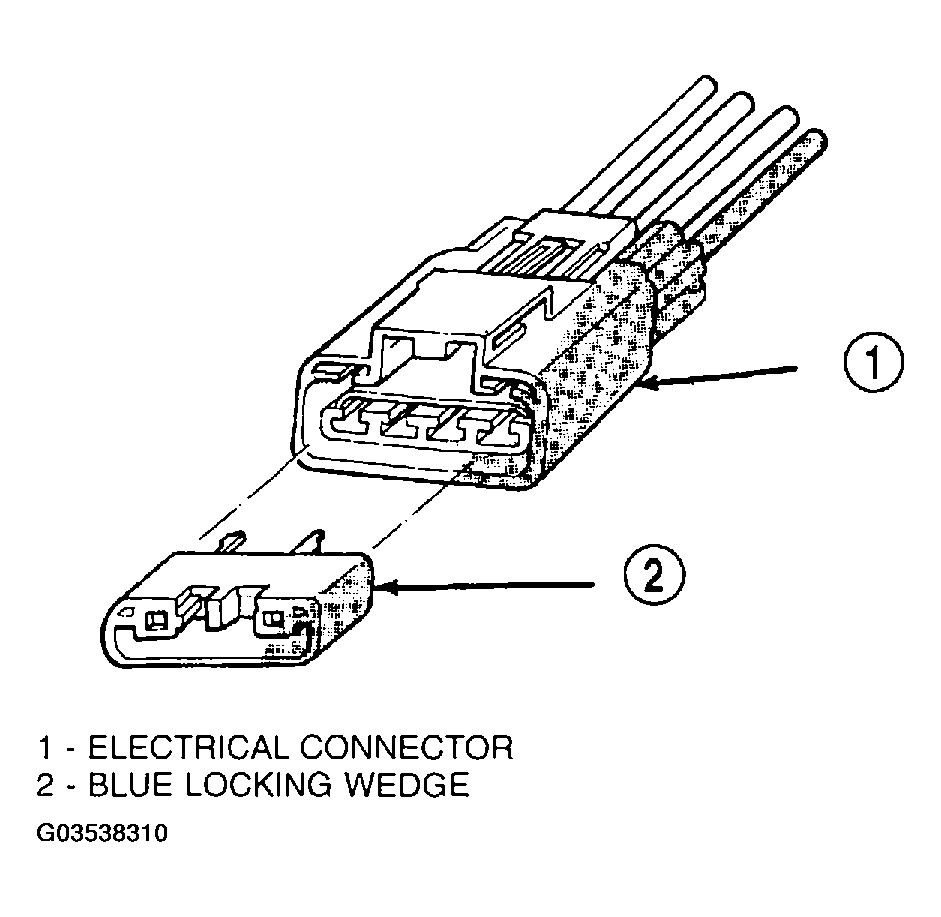

   Fig 2: Identifying Wire Terminal Locking Wedge

   Courtesy of DAIMLERCHRYSLER CORP.
3. Using a small screwdriver lift locking finger away from terminal and push terminal out of connector (Fig 3).

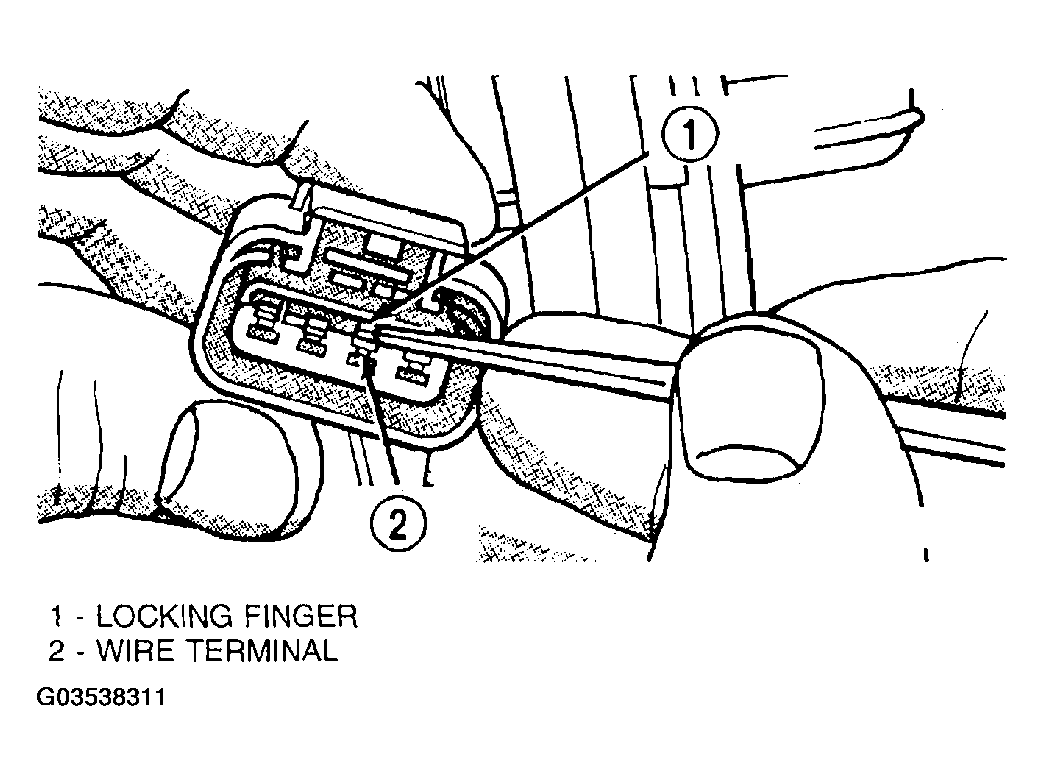

   Fig 3: Removing Wires From Connector

   Courtesy of DAIMLERCHRYSLER CORP.
4. Push level sensor signal and ground terminals out of the connector (Fig 3).
5. Slide level sensor wires through opening fuel pump module (Fig 4).
6. Slide level sensor out of installation channel in module.

Fig 4: Installing Fuel Level Sensor

Courtesy of DAIMLERCHRYSLER CORP.
