Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
A/C Diode Behind glove box, taped to harness. See Figure .
A/T Reverse Diode Behind dash, right of steering column, taped to harness.
Fog Lamp In-Line Fuse Right front of engine compartment, on battery bracket.
Rear Blower Motor In-Line Fuse Underside of ceiling, right side of rear A/C unit.
Security In-Line Fuse Holder At left kick panel, taped to harness.

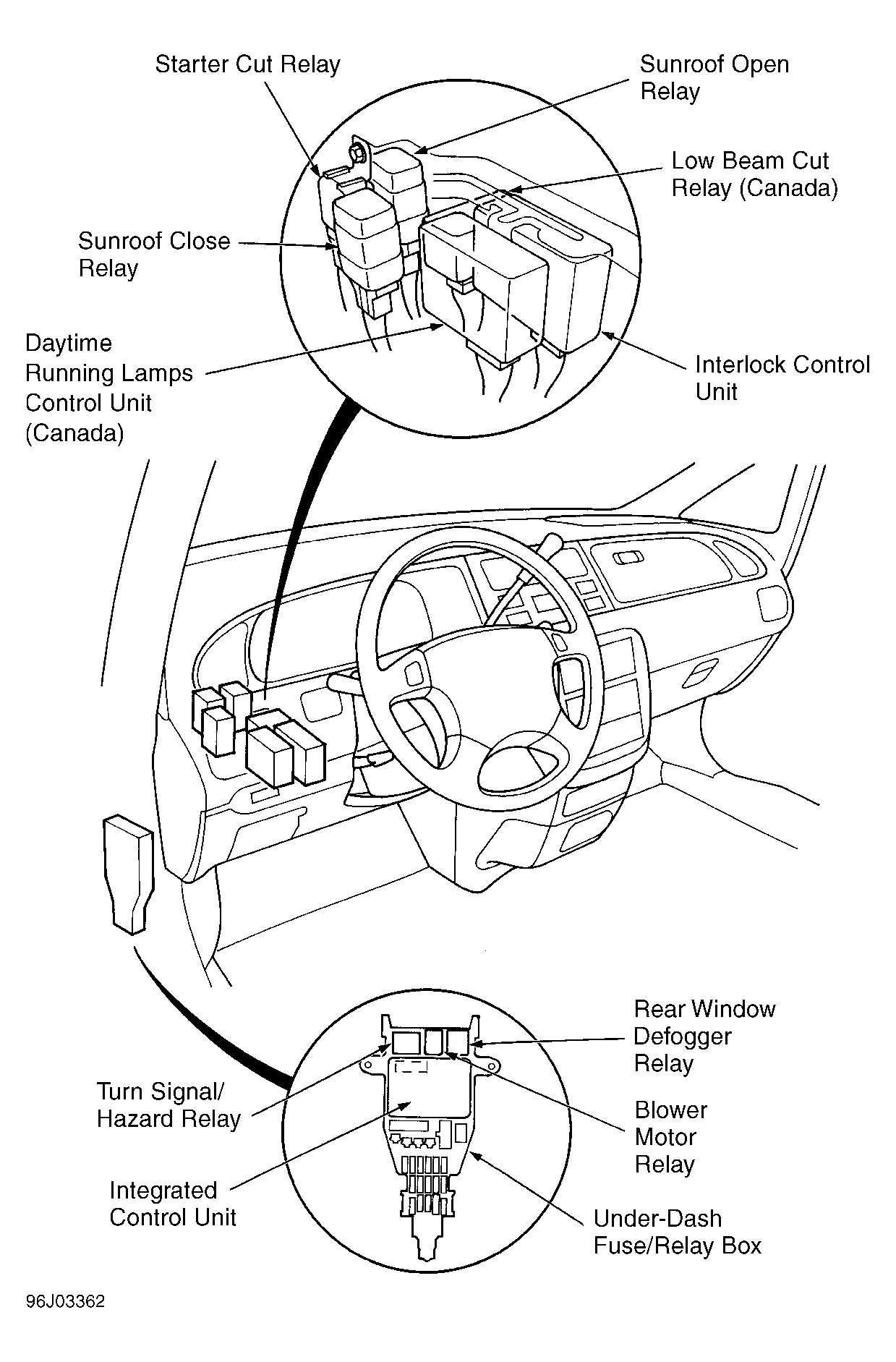

Under-Dash Fuse/Relay Box At left kick panel. See Figure .
Under-Hood ABS Fuse/Relay Box Right rear of engine compartment. See Figure .
Under-Hood Fuse/Relay Box Right rear corner of engine compartment. See Figure .
