Control Units

CONTROL UNITS

Component Component Location

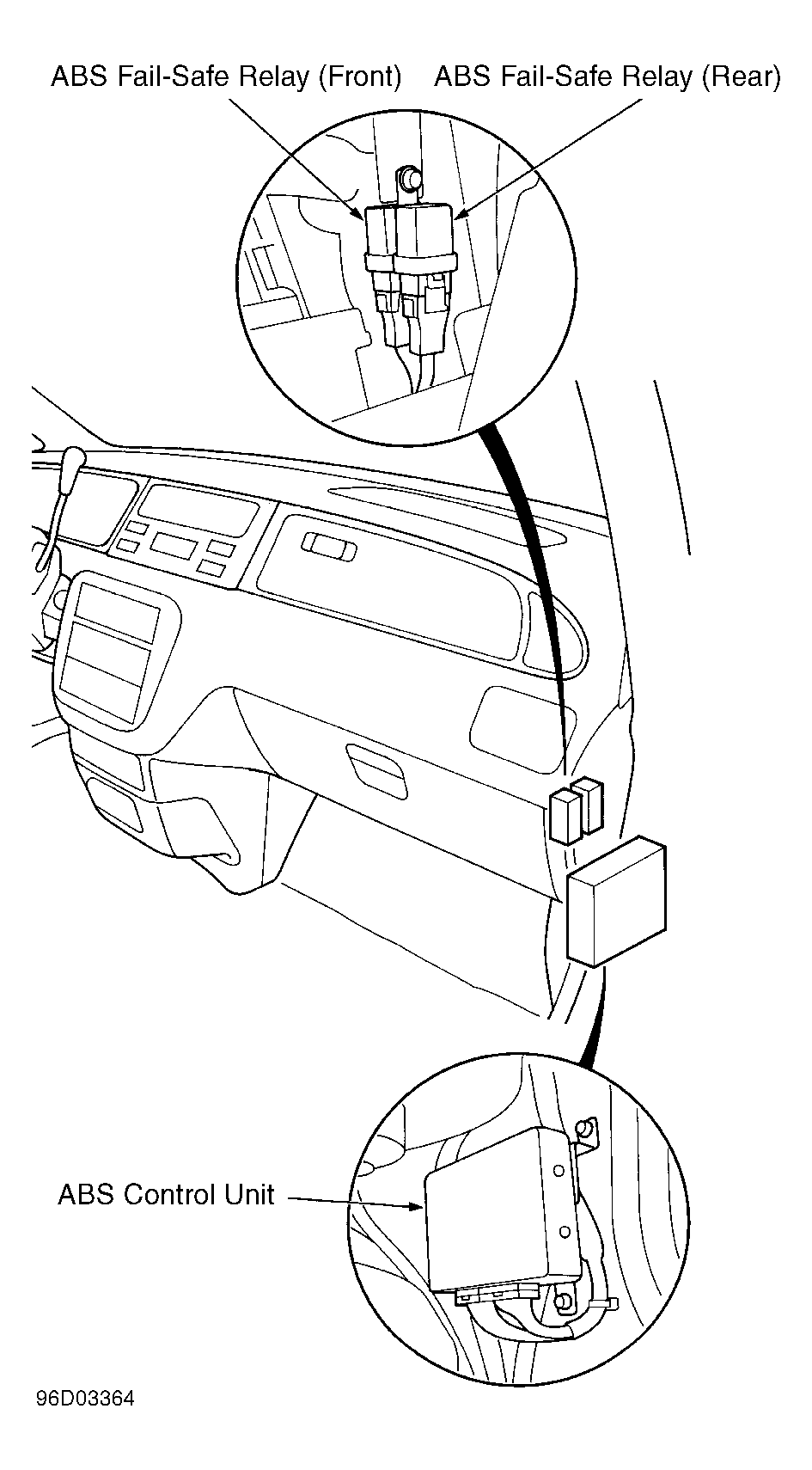

ABS Control Unit Behind right kick panel. See Figure .

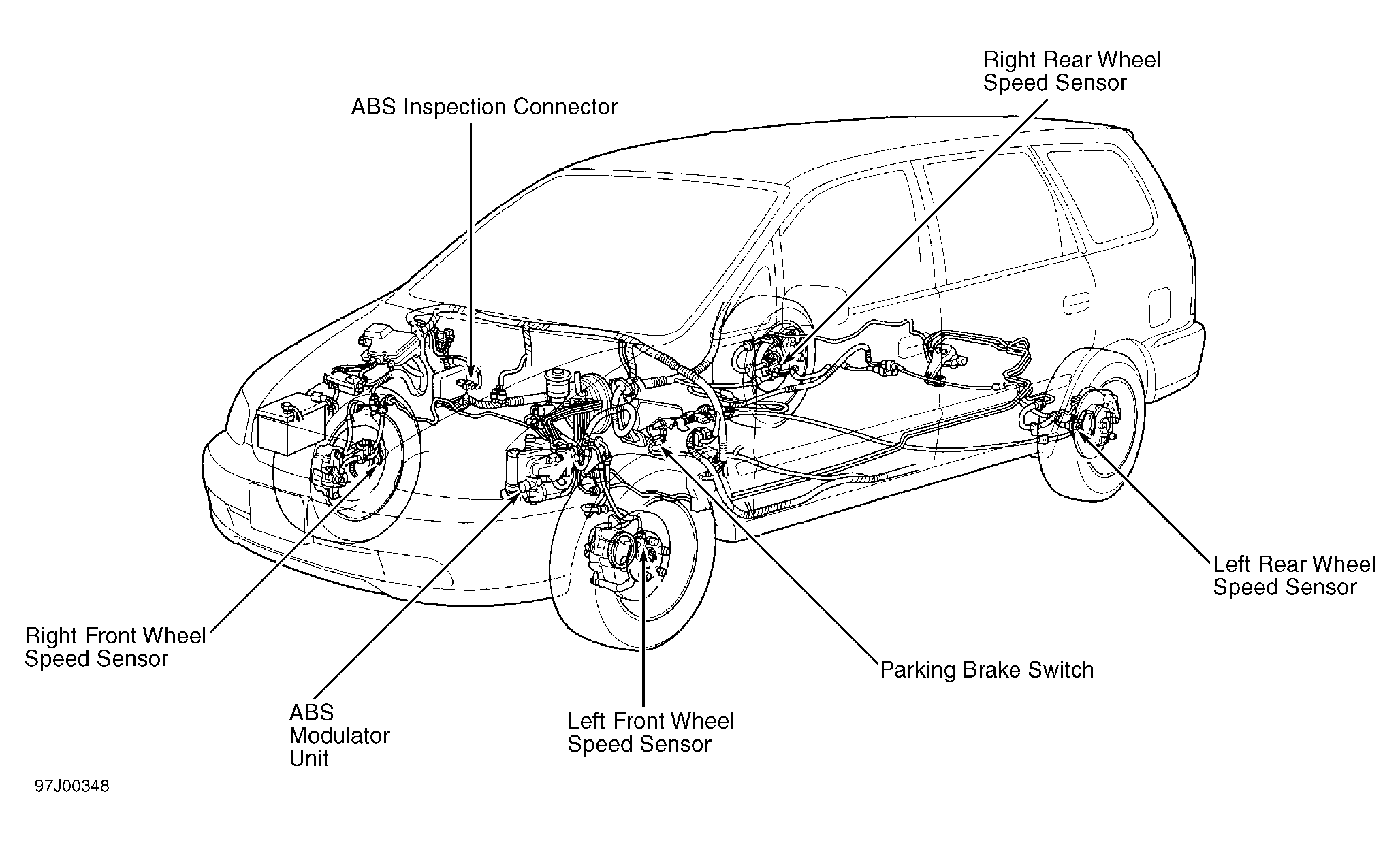

ABS Modulator Unit On left side of engine compartment. See Figure .
Cruise Control Unit Below center of dash, forward of SRS unit. See Figure .
Daytime Running Lamps (DRL) Control Unit (Canada) Behind left side of dash. See Figure .
Electrical Load Detector (ELD) Unit On right rear corner of engine compartment, in underhood fuse/relay box. See Figure .
Integrated Control Unit At left kick panel, on rear of underdash fuse/relay box. See Figure .
Interlock Control Unit Behind dash, left of steering column. See Figure .

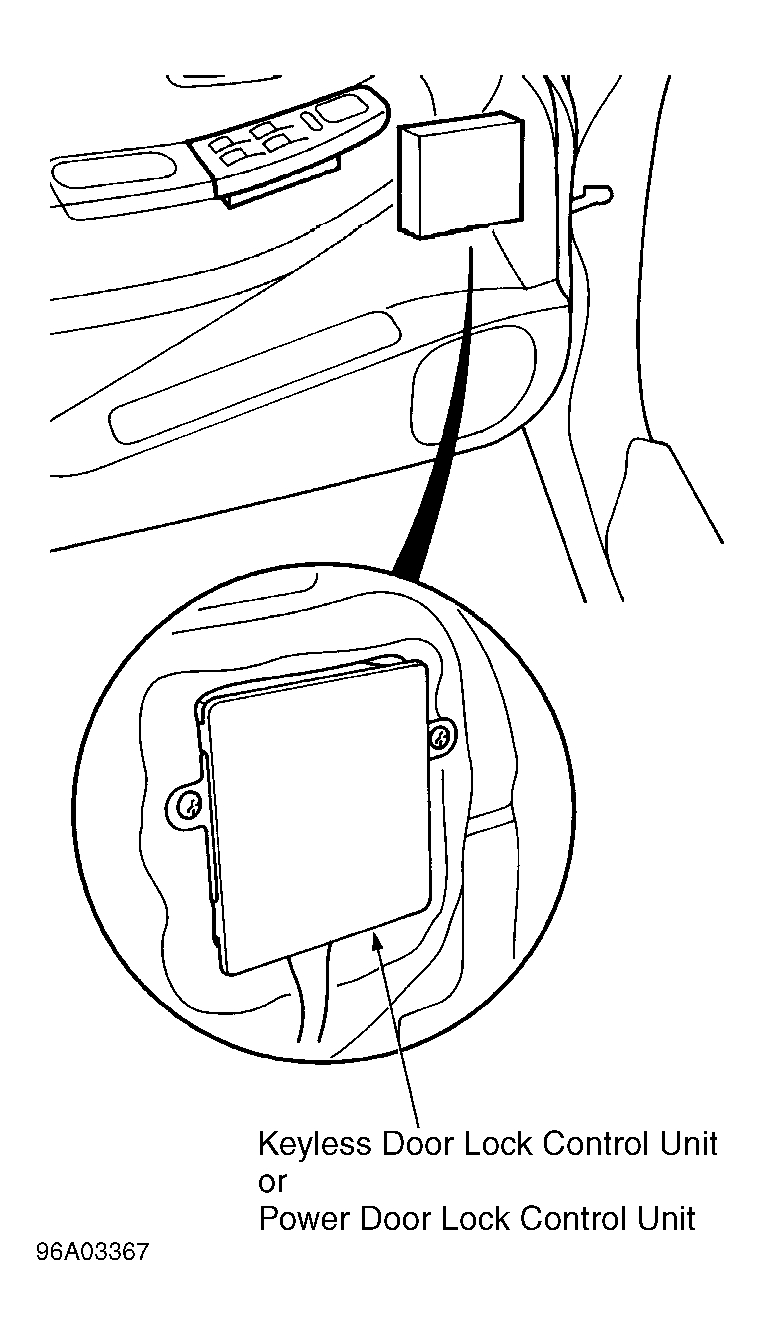

Keyless Door Lock Control Unit In front of driver's door. See Figure .
Power Door Lock Control Unit In front of driver's door. See Figure .

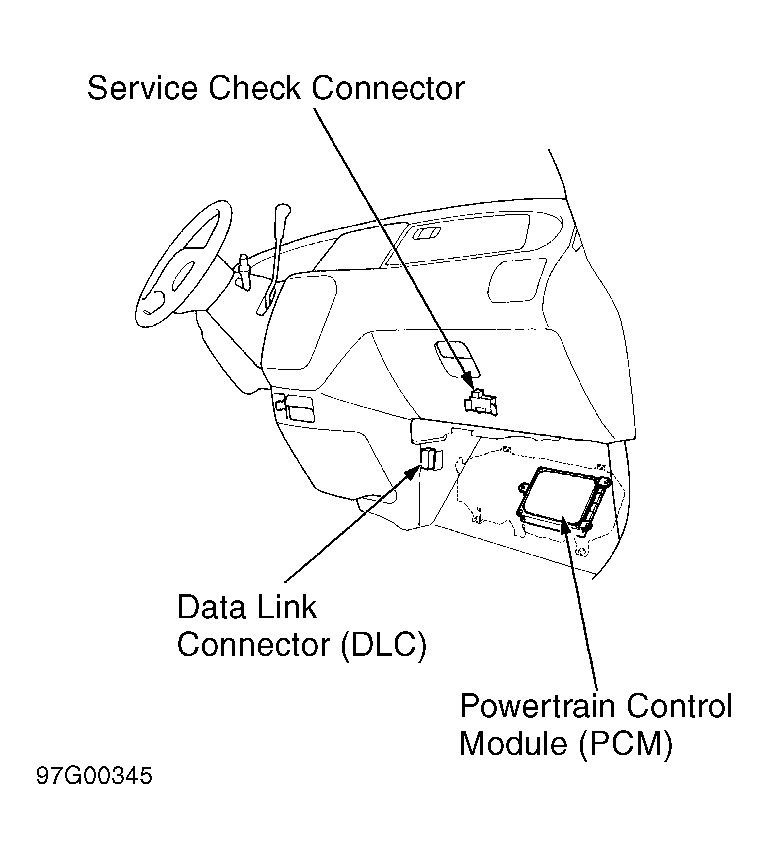

Powertrain Control Module (PCM) On underside of front passenger's footrest. See Figure .

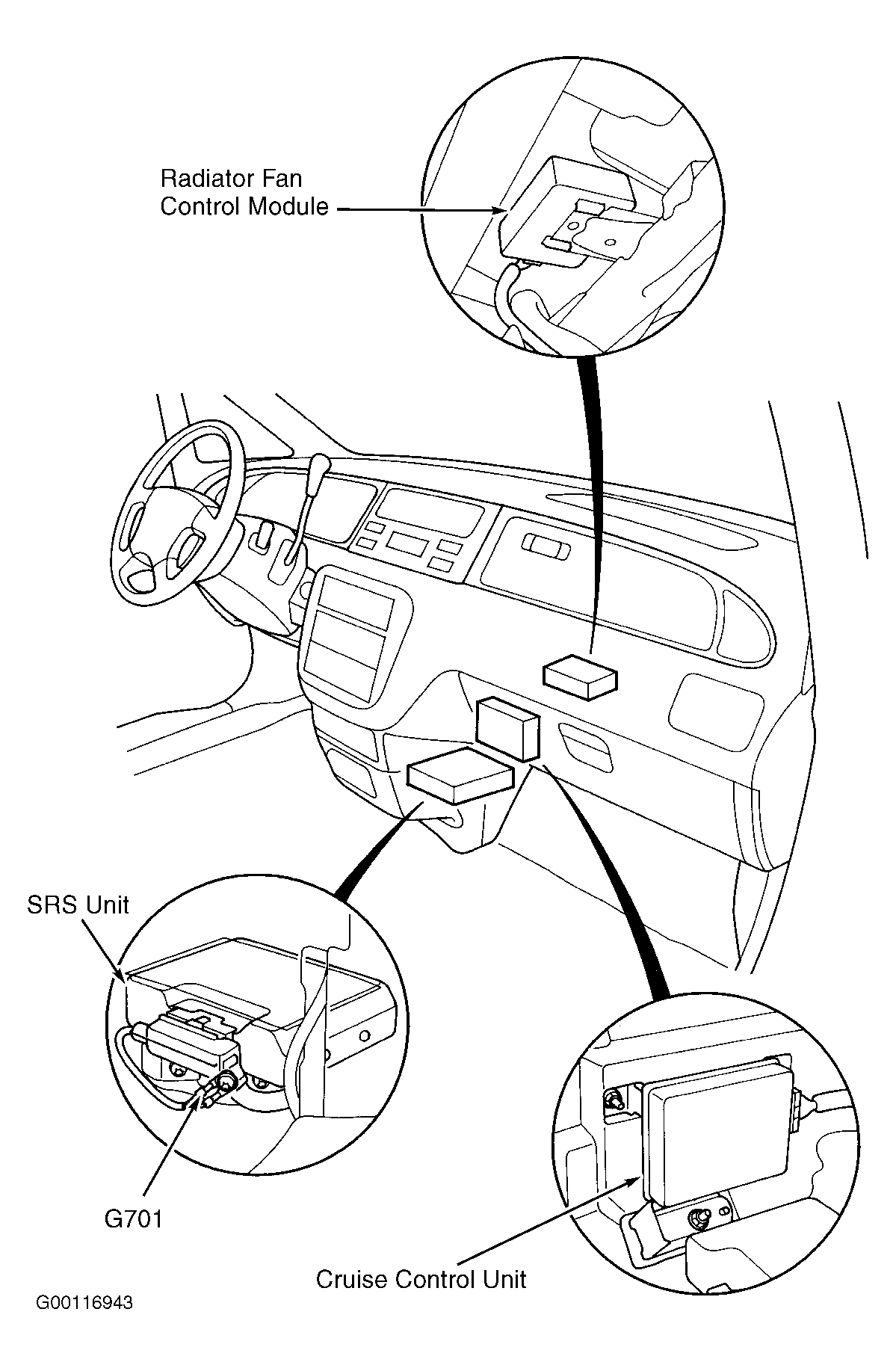

Radiator Fan Control Module Above left side of glove box. See Figure .
Security Control Unit Below driver's seat.
SRS Unit Below center of dash. See Figure .
