Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

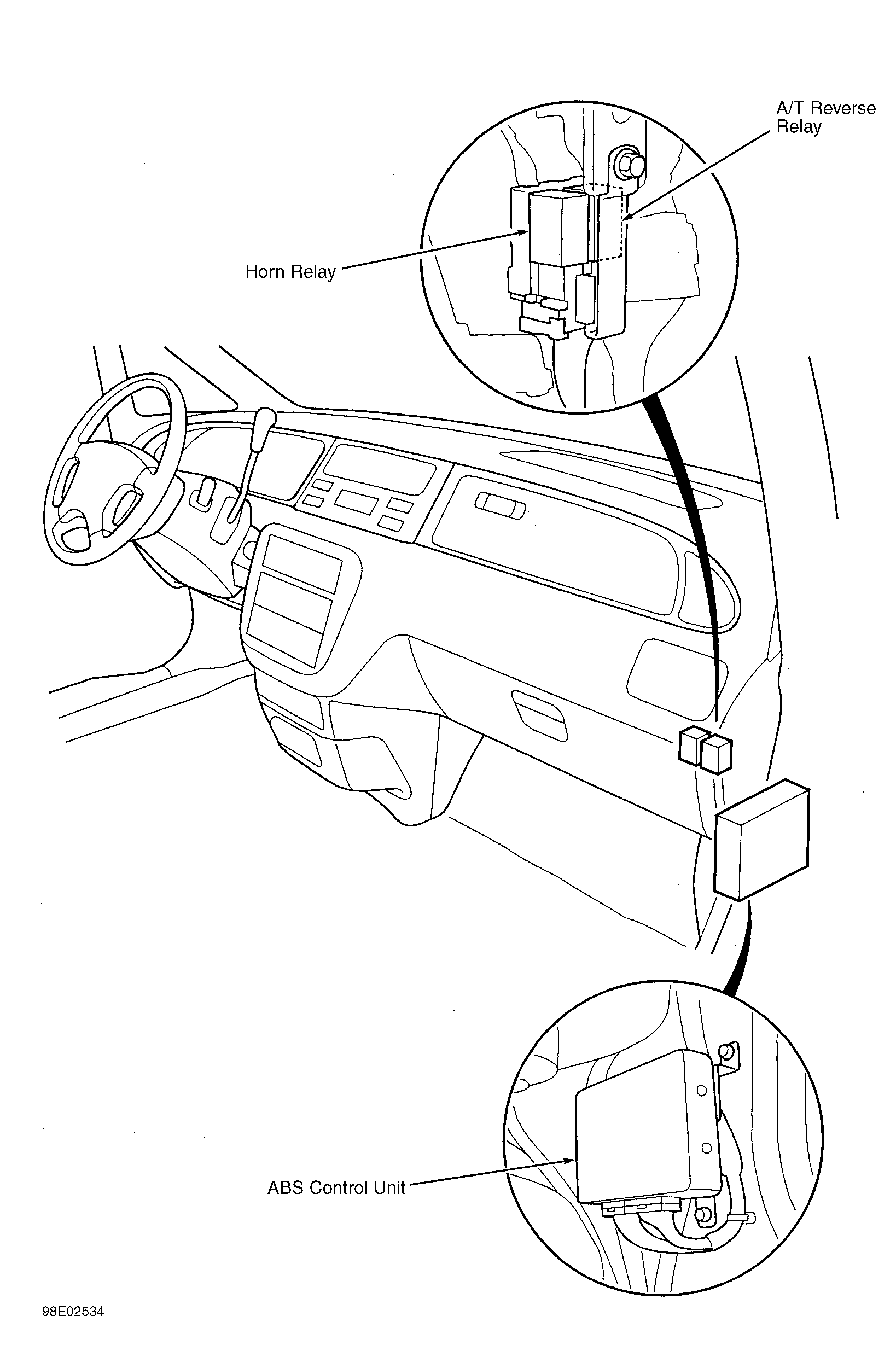

| ABS Control Unit | Behind right kick panel. See Figure . |
| ABS Modulator Unit | On left front of engine compartment. |

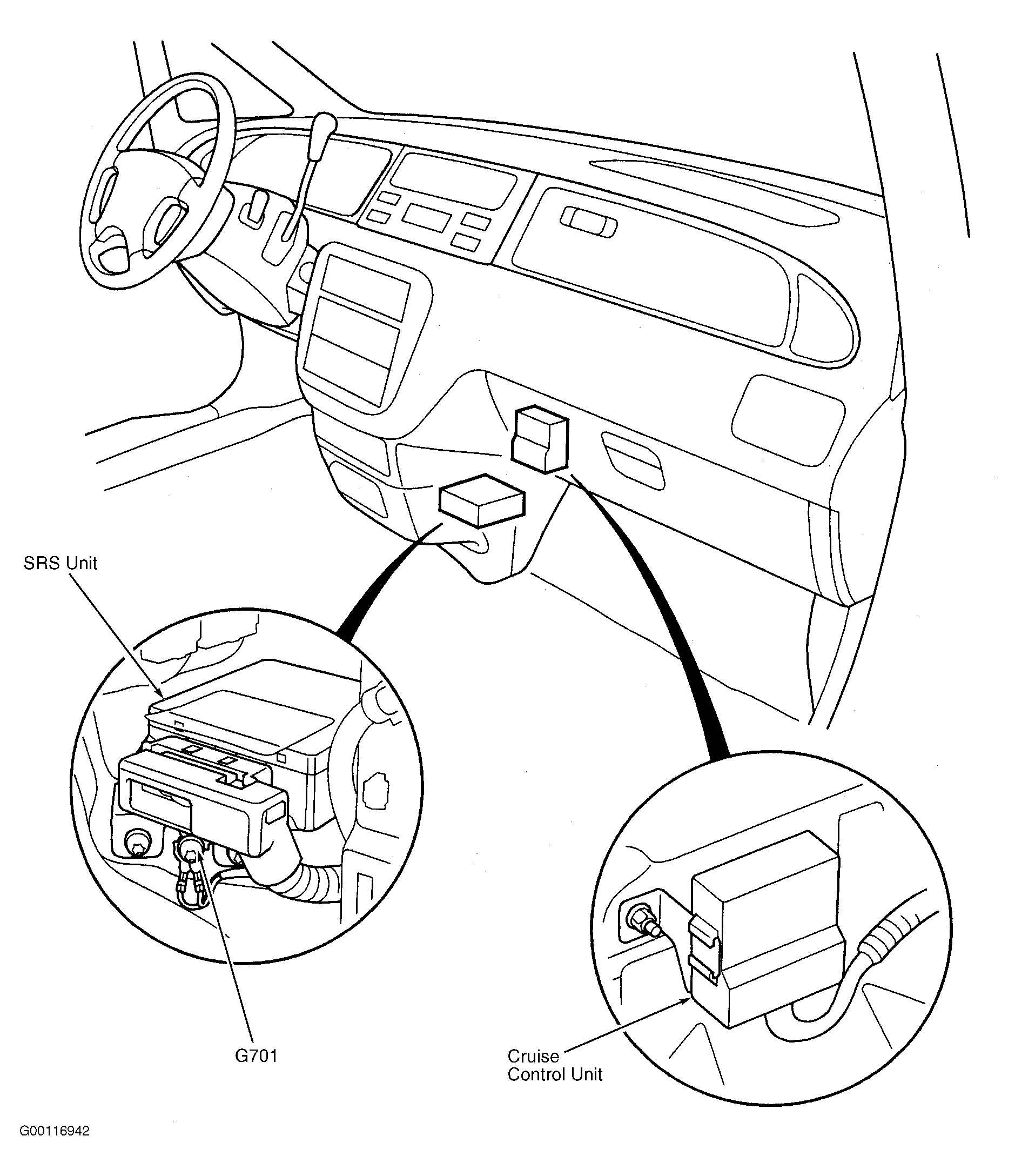

| Cruise Control Unit | Below center of dash, forward of SRS unit. See Figure . |
| Daytime Running Lights (DRL) Control Unit (Canada) | Behind left side of dash, above left kick panel. See Figure . |
| Electrical Load Detector (ELD) Unit | On rear of underhood fuse/relay box. See Figure . |

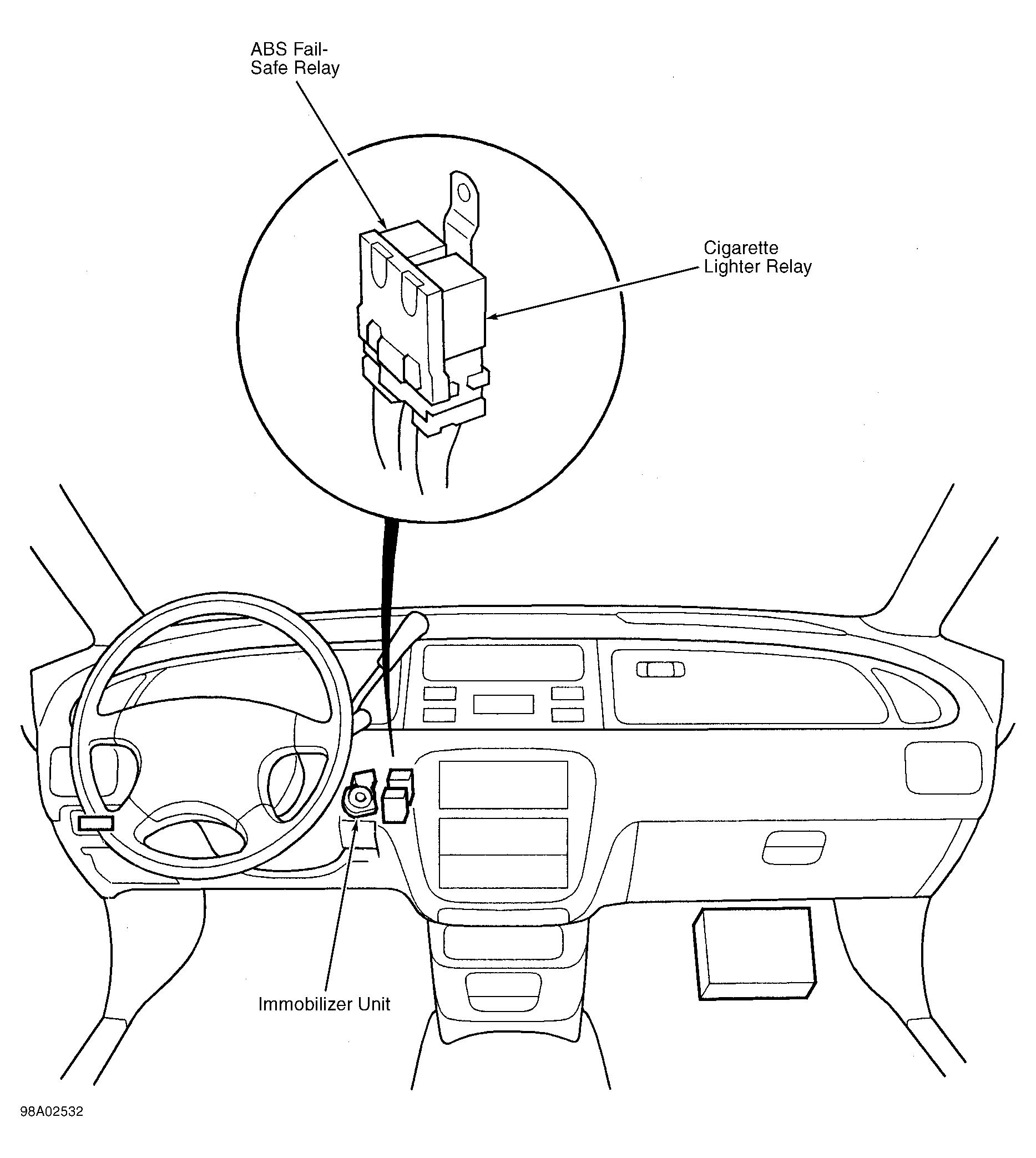

| Immobilizer Unit | On steering lock. See Figure . |
| Integrated Control Unit | On rear of underdash fuse/relay box. See Figure . |
| Interlock Control Unit | Behind dash, left of steering column. See Figure . |
| Keyless Door Lock Control Unit | In front of driver's door. See Figure . |
| Power Door Lock Control Unit | In front of driver's door. See Figure . |
| Powertrain Control Module (PCM) | On underside of front passenger's footrest. See Figure . |
| Security Control Unit | Below driver's seat. |
| SRS Unit | Below center of dash. See Figure . |
