Security Light: 13, DTC: B10D7:05/P1260:00 [Immobilizer System (Advanced Keyless Entry And Push Button Start System)]

DTC	Security light flashing pattern		13	Key ID number error
	M-MDS display	Keyless control module	B10D7:05
	M-MDS display	PCM	P1260:00
DETECTION CONDITION				Keyless control module detects the key ID number programming failure.

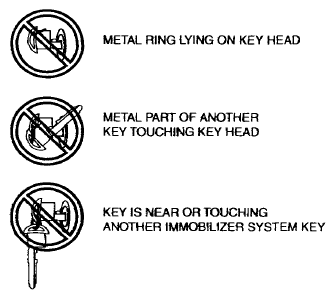

POSSIBLE CAUSE				Key ID number error Failure during programming the key ID number PCM malfunction Keyless control module malfunction If any of the following items are touching or near key head, signal communication between key and vehicle is negatively affected, resulting in engine not starting: NOTE: Spare keys EXAMPLES: Keys for other vehicles equipped with immobilizer system Any metallic object Any electronic device, or any credit or other card with magnetic strips

DIAGNOSTIC PROCEDURE

STEP	INSPECTION		ACTION
1	VERIFY KEY MALFUNCTION Program an additional key referring to the immobilizer system-related parts programming. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Switch the ignition to ON (engine off) using the programmed key. Clear the DTC from the keyless control module and PCM using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). (See AFTER REPAIR PROCEDURE [LF, L5] ). (See AFTER REPAIR PROCEDURE [L3 WITH TC] ). Perform the immobilizer system DTC inspection using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). Is the same DTC present?	Yes	Go to the next step.
1		No	Go to Step 4.
2	VERIFY PCM MALFUNCTION Clear the DTC from the keyless control module and PCM using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). (See AFTER REPAIR PROCEDURE [LF, L5] ). (See AFTER REPAIR PROCEDURE [L3 WITH TC] ). Perform the immobilizer system DTC inspection using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). Is the same DTC present?	Yes	Replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [LF, L5] ). (See PCM REMOVAL/INSTALLATION [L3 WITH TC] ).
2		No	Go to Step 4.
3	VERIFY TROUBLESHOOTING COMPLETED Clear the DTC from the keyless control module and PCM using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). (See AFTER REPAIR PROCEDURE [LF, L5] ). (See AFTER REPAIR PROCEDURE [L3 WITH TC] ). Perform the immobilizer system DTC inspection using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). Is the same DTC present?	Yes	Replace the keyless control module, then go to the next step. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION ).
3		No	Go to the next step.
4	VERIFY THAT NO OTHER DTCs ARE PRESENT Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ).
4		No	DTC troubleshooting completed.
