Security Light: Not Illuminated, DTC B10E6:12/-[Immobilizer System (Advanced Keyless Entry And Push Button Start System)]

DTC	Security light flashing pattern		-	Short to power supply in coil antenna power supply circuit
	M-MDS display	Keyless control module	B10E6:12
		PCM	-
DETECTION CONDITION				Coil antenna power supply circuit voltage is higher than the specification when the circuit is not active.
POSSIBLE CAUSE				Coil antenna connector or terminals malfunction Keyless control module connector or terminals malfunction Push button start connector or terminals malfunction Short to power supply in coil antenna power supply circuit Push button start malfunction Coil antenna malfunction Keyless control module malfunction

DIAGNOSTIC PROCEDURE

STEP	INSPECTION		ACTION
1	INSPECT COIL ANTENNA CONNECTOR CONDITION  Switch the ignition to off. Disconnect the negative battery cable. Disconnect the coil antenna connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to the next step.
		No	Go to the next step.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION  Disconnect the keyless control module connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to the next step.
		No	Go to the next step.
3	INSPECT PUSH BUTTON START CONNECTOR CONDITION  Disconnect the push button start connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to the next step.
		No	Go to the next step.

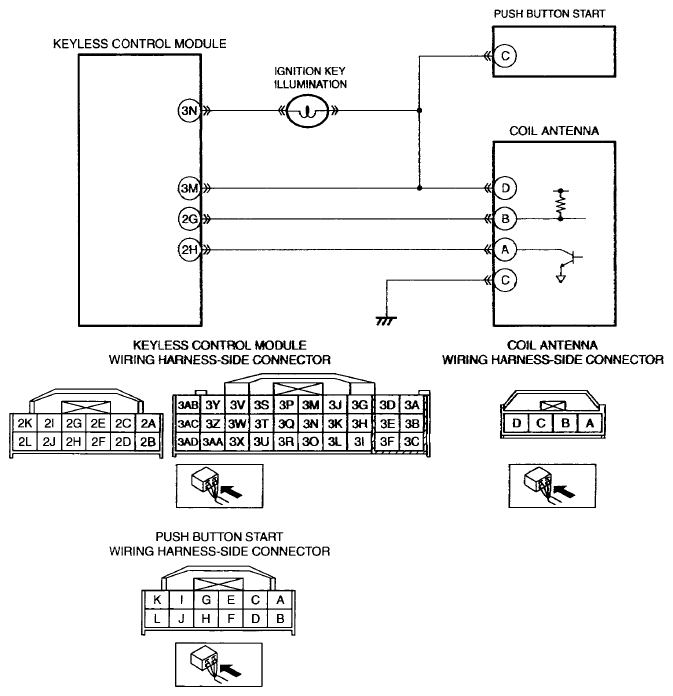

4	INSPECT COIL ANTENNA POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY  Coil antenna, keyless control module and push button start connectors are disconnected. Reconnect the negative battery cable. Measure the voltage at the keyless control module terminal 3M (wiring harness-side). Is the voltage more than 3.0 V?	Yes	Repair or replace the wiring harness for a possible short to power supply, then go to the next step.
		No	Go to the next step.
5	INSPECT PUSH BUTTON START  Reconnect the push button start connector. Measure the voltage at the keyless control module terminal 3M (wiring harness-side). Is the voltage more than 3.0 V?	Yes	Replace the push button start, then go to the next step. (See PUSH BUTTON START REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
		No	Go to the next step.
6	VERIFY COIL ANTENNA MALFUNCTION  Make sure to reconnect all disconnected connectors. Clear the DTC from the keyless control module and PCM memory using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). (See AFTER REPAIR PROCEDURE [LF, L5] ). (See AFTER REPAIR PROCEDURE [L3 WITH TC] ). Disconnect the negative battery cable. Reconnect the negative battery cable. NOTE: The keyless control module performs on-board self-diagnostics while the negative battery cable is connected. Perform the immobilizer system (advanced keyless entry and push button start system) DTC inspection using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). Is the same DTC present?	Yes	Replace the coil antenna, then go to the next step. (See COIL ANTENNA REMOVAL/INSTALLATION ).
		No	Go to the next step.
7	VERIFY TROUBLESHOOTING COMPLETED  Make sure to reconnect all disconnected connectors. Clear the DTC from the keyless control module and PCM memory using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). (See AFTER REPAIR PROCEDURE [LF, L5] ). (See AFTER REPAIR PROCEDURE [L3 WITH TC] ). Disconnect the negative battery cable. Reconnect the negative battery cable. NOTE: The keyless control module performs on-board self-diagnostics while the negative battery cable is connected. Perform the immobilizer system (advanced keyless entry and push button start system) DTC inspection using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ). Is the same DTC present?	Yes	Replace the keyless control module and program the immobilizer system-related parts, then go to the next step. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION ). (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
		No	Go to the next step.
8	VERIFY THAT NO OTHER DTCs ARE PRESENT  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)] ).
		No	DTC troubleshooting completed.
