Lighting Systems Location Index: Interior

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

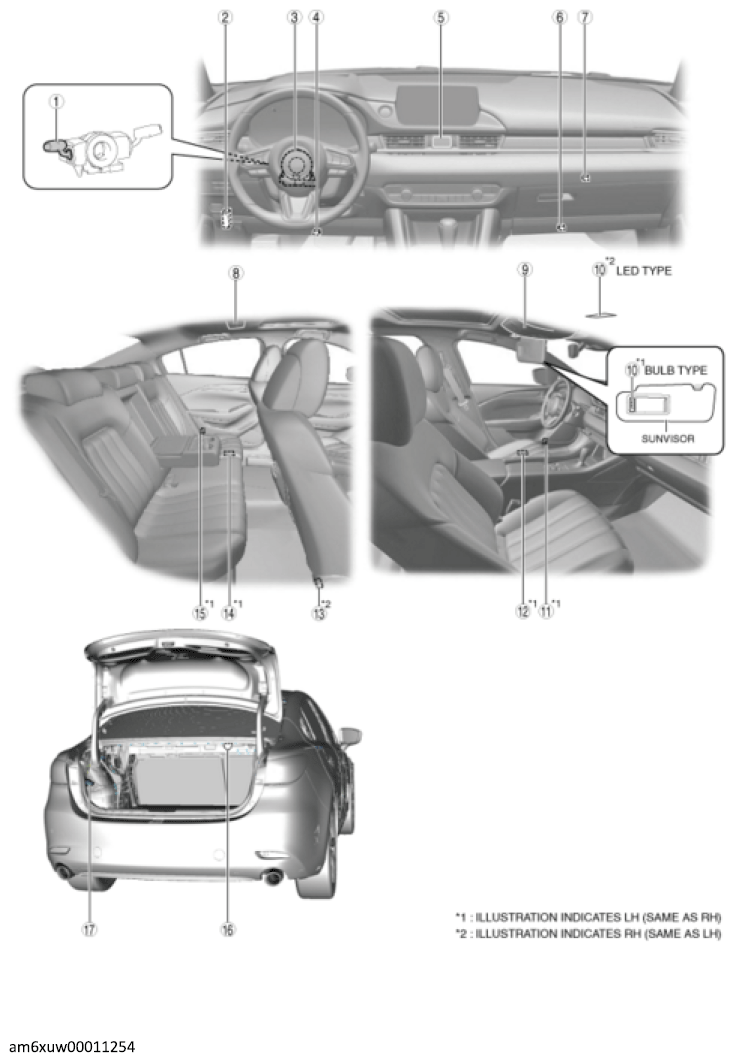

Fig 1: Lighting Systems Components Location - Interior

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .) (See LIGHT SWITCH INSPECTION .)
2	Auto leveling control module (with headlight auto leveling system and without adaptive front lighting system (AFS)) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
3	Steering angle sensor (With steering angle sensor) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
4	Driver-side Foot light (See FOOT LIGHT BULB REMOVAL/INSTALLATION .) (See FOOT LIGHT REMOVAL/INSTALLATION .)
5	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .) (See HAZARD WARNING SWITCH INSPECTION .)
6	Passenger-side Foot light (See FOOT LIGHT BULB REMOVAL/INSTALLATION .) (See FOOT LIGHT REMOVAL/INSTALLATION .)
7	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
8	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See MAP LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT BULB REMOVAL/INSTALLATION .) (See MAP LIGHT INSPECTION .)
9	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See MAP LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT BULB REMOVAL/INSTALLATION .) (See MAP LIGHT INSPECTION .)
10	Vanity mirror illumination (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION INSPECTION .)
11	Front pocket light (With pocket fight) (See POCKET LIGHT BULB REMOVAL/INSTALLATION .) (See POCKET LIGHT REMOVAL/INSTALLATION .)
12	Front courtesy light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See COURTESY LIGHT BULB REMOVAL/INSTALLATION .) (See COURTESY LIGHT REMOVAL/INSTALLATION .)
13	Rear foot light (See FOOT LIGHT BULB REMOVAL/INSTALLATION .) (See FOOT LIGHT REMOVAL/INSTALLATION .)
14	Rear courtesy light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See COURTESY LIGHT BULB REMOVAL/INSTALLATION .) (See COURTESY LIGHT REMOVAL/INSTALLATION .)
15	Rear pocket light (With pocket light) (See POCKET LIGHT BULB REMOVAL/INSTALLATION .) (See POCKET LIGHT REMOVAL/INSTALLATION .)
16	Trunk compartment light (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
17	Brake light unit (With smart brake support) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .) (See BRAKE LIGHT UNIT INSPECTION .)
