Glass/Windows/Mirrors Location Index

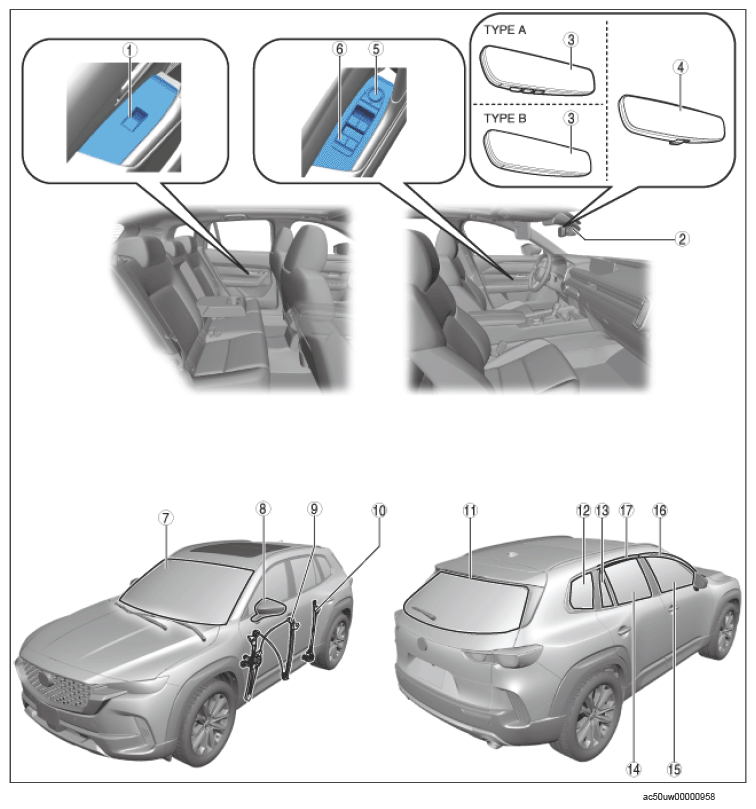

Fig 1: Glass, Windows And Mirrors Components Location

Courtesy of MAZDA MOTORS CORP.

GLASS, WINDOWS AND MIRRORS COMPONENT OPERATIONS

Component No.	Refer to
1	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
2	Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
3	Auto-dimming rearview mirror (With auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .) (See AUTO-DIMMING REARVIEW MIRROR INSPECTION .) (See HOME LINK FUNCTION PROGRAMMING .) (See HOME LINK FUNCTION CLEARING .)
4	Rearview mirror (Without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION .)
5	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR SWITCH INSPECTION .)
6	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW MAIN SWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
7	Windshield (See WINDSHIELD REMOVAL .) (See WINDSHIELD INSTALLATION .) (See WINDSHIELD WIPER DE-ICER INSPECTION .)
8	Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .) (See MIRROR BASE REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR INSPECTION .) (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .) (See OUTER MIRROR GLASS INSPECTION .) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
9	Front power window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See FRONT POWER WINDOW MOTOR INSPECTION .)
10	Rear power window regulator (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See REAR POWER WINDOW MOTOR INSPECTION .)
11	Rear window glass (See REAR WINDOW GLASS REMOVAL .) (See REAR WINDOW GLASS INSTALLATION .) (See REAR WINDOW DEFOGGER INSPECTION .) (See REAR WINDOW DEFOGGER REPAIR .)
12	Quarter window glass (See QUARTER WINDOW GLASS REMOVAL .) (See QUARTER WINDOW GLASS INSTALLATION .)
13	Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
14	Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
15	Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
16	Front door glass run-channel (See FRONT DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION .)
17	Rear door glass run-channel (See REAR DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION .)
