Remove Passenger Side Lower Panel: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

Remove using the procedure shown in the figure.

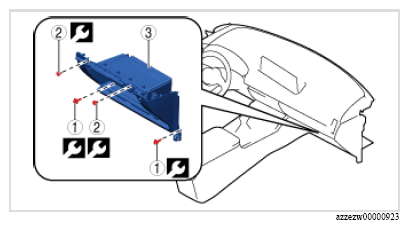

Fig 1: Passenger Side Lower Panel, Screws And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt	4 N.m {41 kgf.cm, 35 in.lbf}
2	Screw	2.5 N.m {23 kgf.cm, 20 in.lbf}
3	Passenger side lower panel (See Passenger side lower panel removal note ). (See Passenger side lower panel installation note ).	-
