Circuit Protection Devices

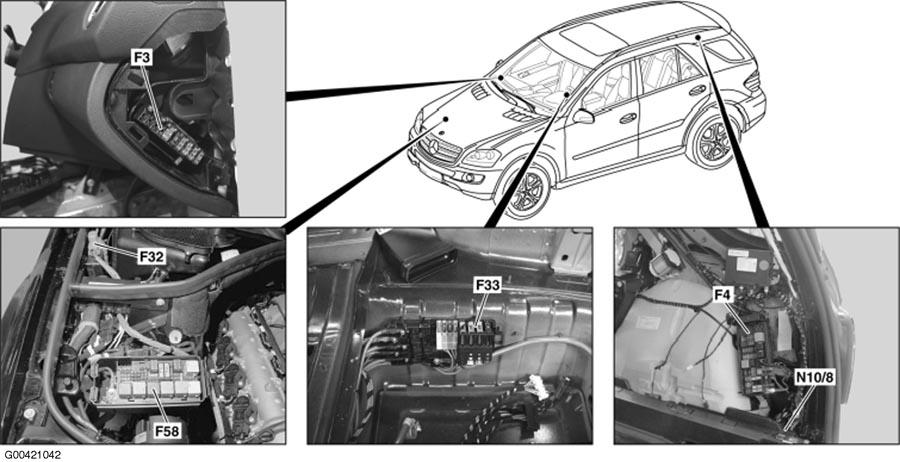

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Battery Compartment Prefuse Box | Under right front seat. See Figure . |
| Cockpit Fuse Box | Right side of dash. See Figure . |

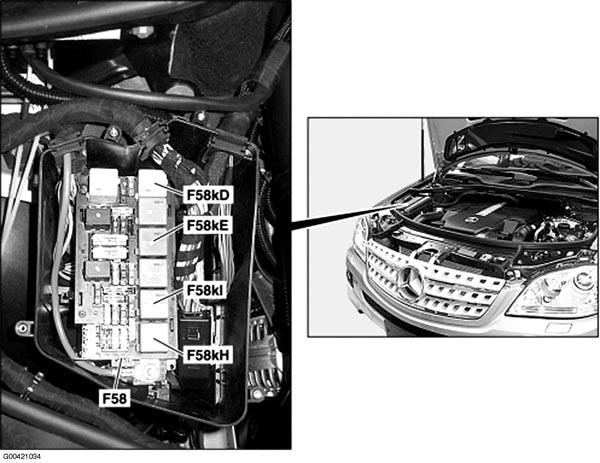

| Engine Compartment Fuse & Relay Box | Right side of engine compartment. See Figure . |
| Front Prefuse | Right rear of engine compartment. See Figure . |

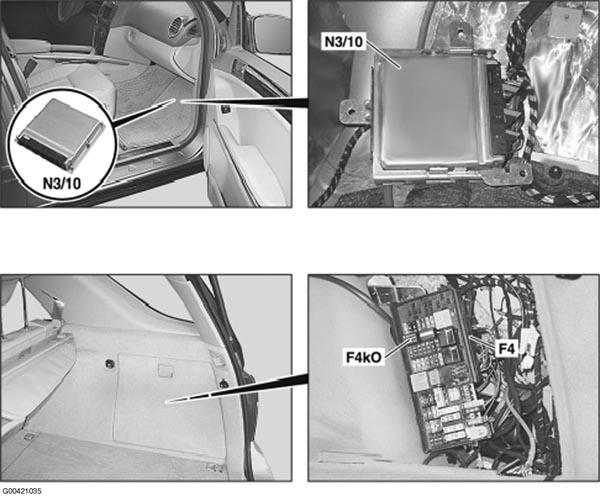

| Load Compartment Fuse & Relay Box | Right side of cargo area. See Figure . |
