Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse Block	Mounted To Left Side Of Instrument Panel, Accessible With Left Front Door Open. See Fig 1

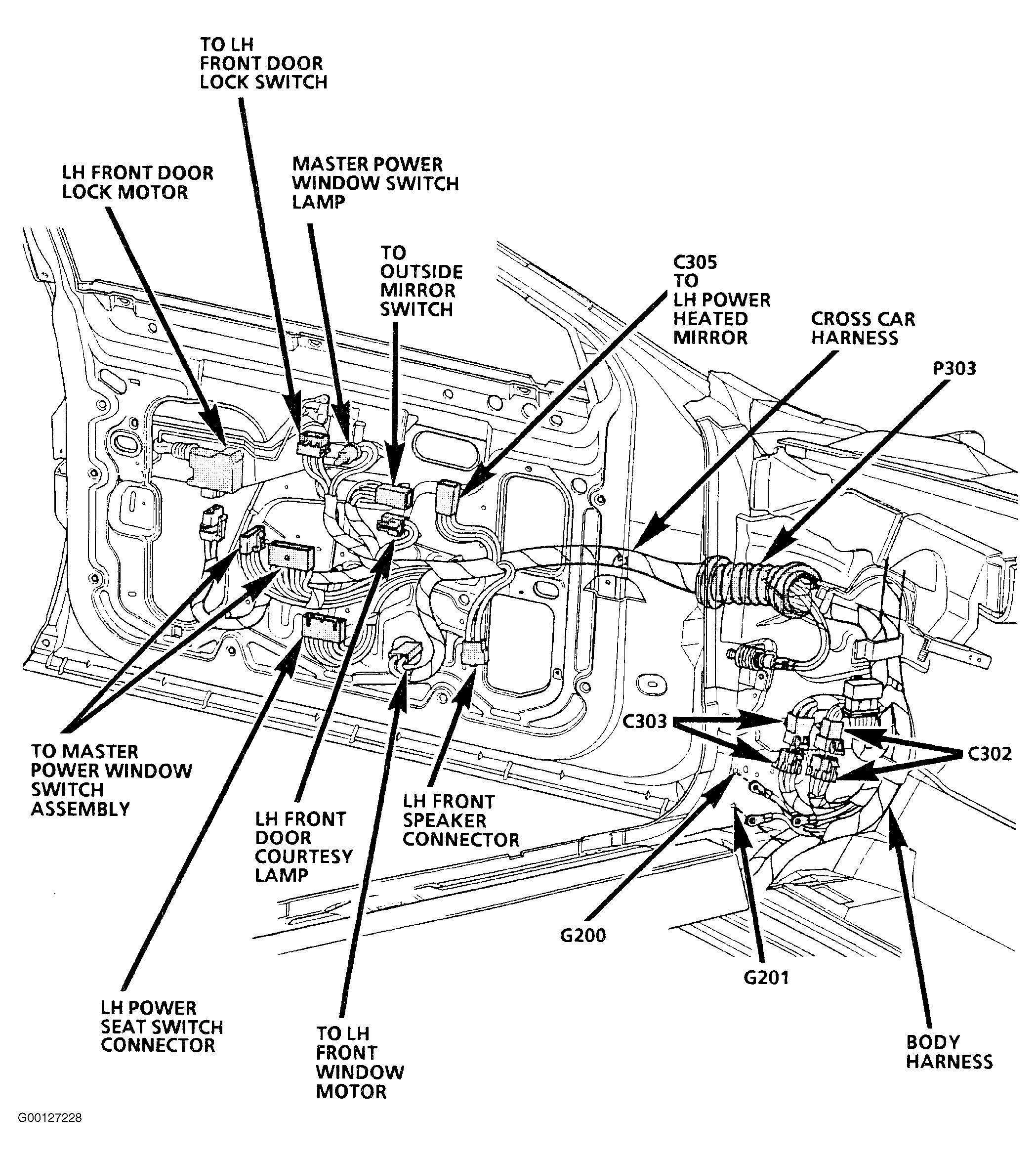

Left Front Window Motor	Left Front Door. See Fig 2

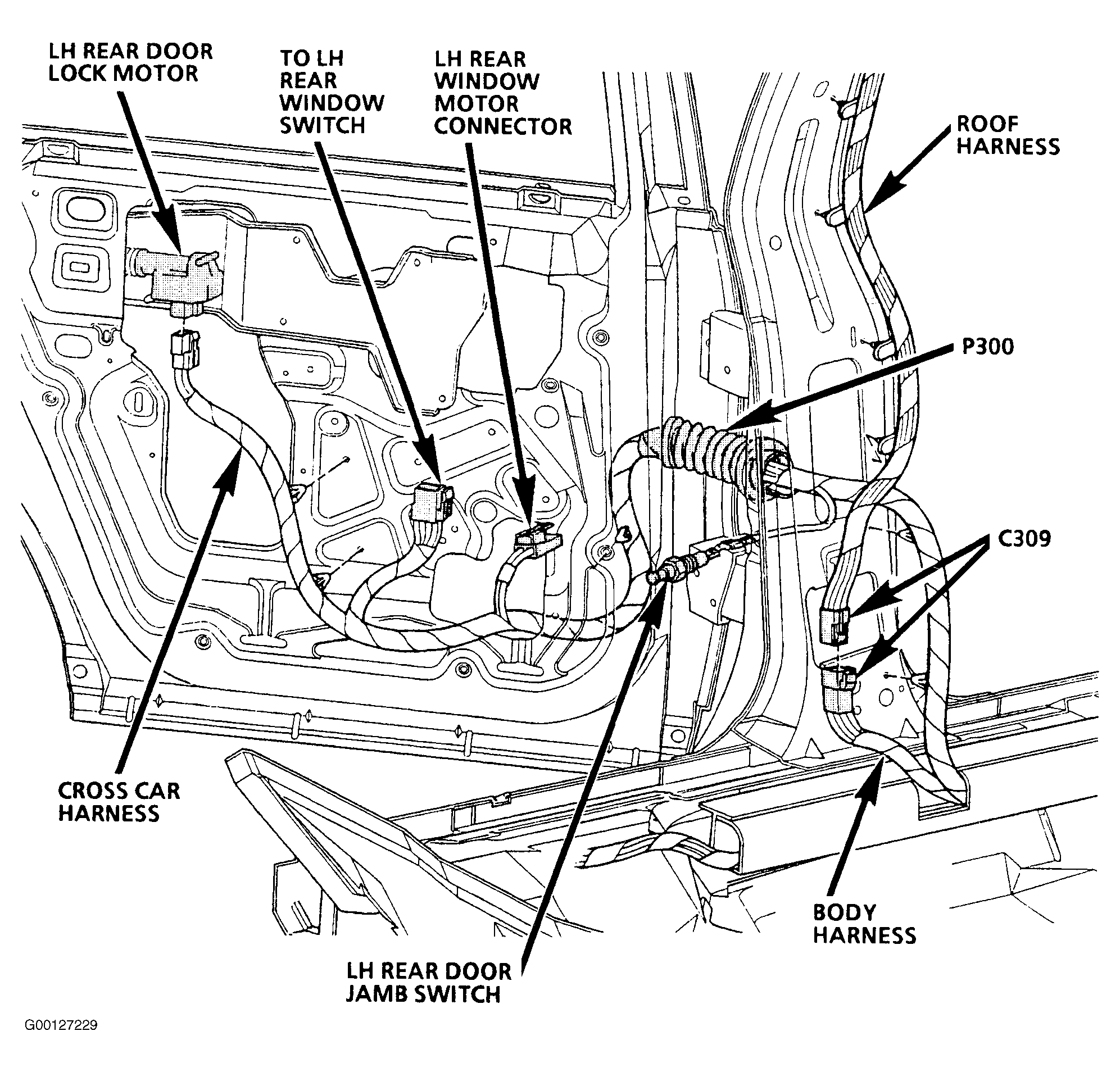

Left Rear Window Motor	Left Rear Door. See Fig 3
Left Rear Window Switch	Left Rear Door. See Fig 3
Master Power Window Switch Assembly	Left Front Door Armrest. See Fig 2

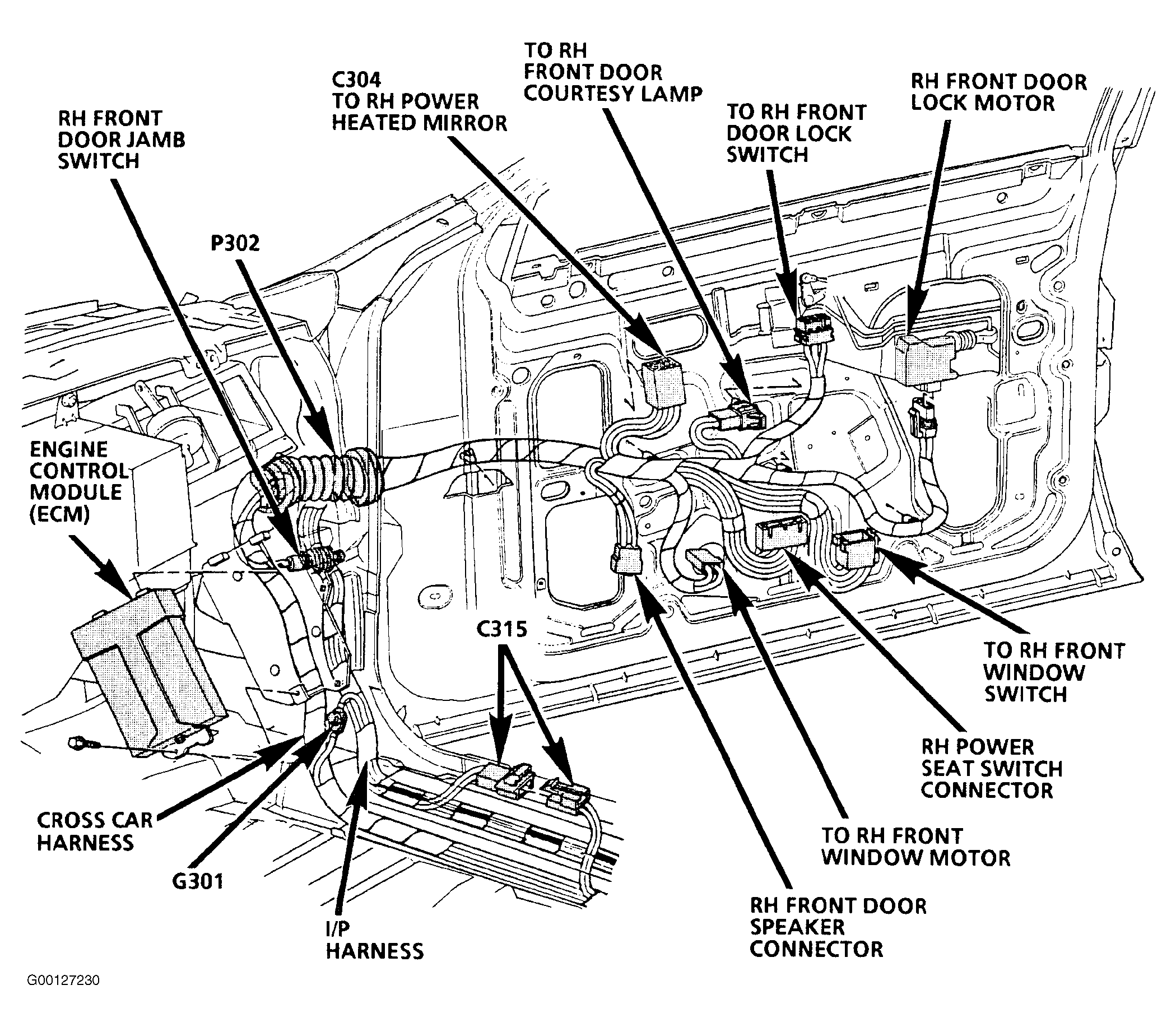

Right Front Window Motor	Right Front Door. See Fig 4
Right Front Window Switch	Right Front Door. See Fig 4

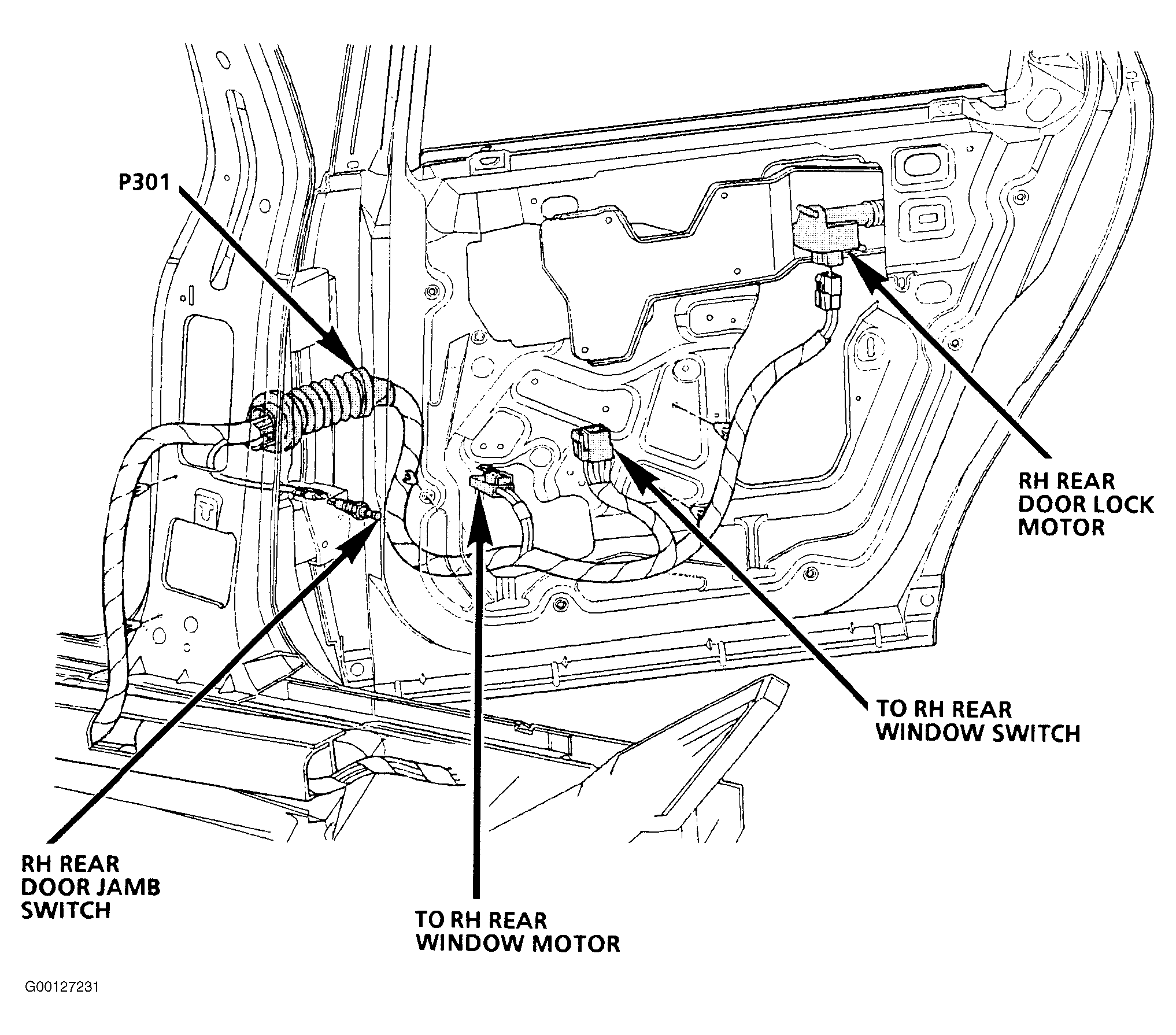

Right Rear Window Motor	Right Rear Door. See Fig 5 .
Right Rear Window Switch	Right Rear Door. See Fig 5
C303 (6 Cavities)	Crosscar Harness To Body Harness, Behind Left Kickpad At Base Of A-Pillar. See Fig 2
G200	Base Of Left A-Pillar, Behind Left Kickpad. See Fig 2
P300	Between Left Rear Door & B-Pillar. See Fig 3
P301	Between Right Rear Door & B-Pillar. See Fig 5
P302	Between Right Front Door & A-Pillar. See Fig 4
P303	Between Left Front Door & A-Pillar. See Fig 2
S300	Cross Car Harness, Approximately 12 cm From C302 Breakout.
S311	Cross Car Harness, Approximately 49 cm From C300 Breakout.

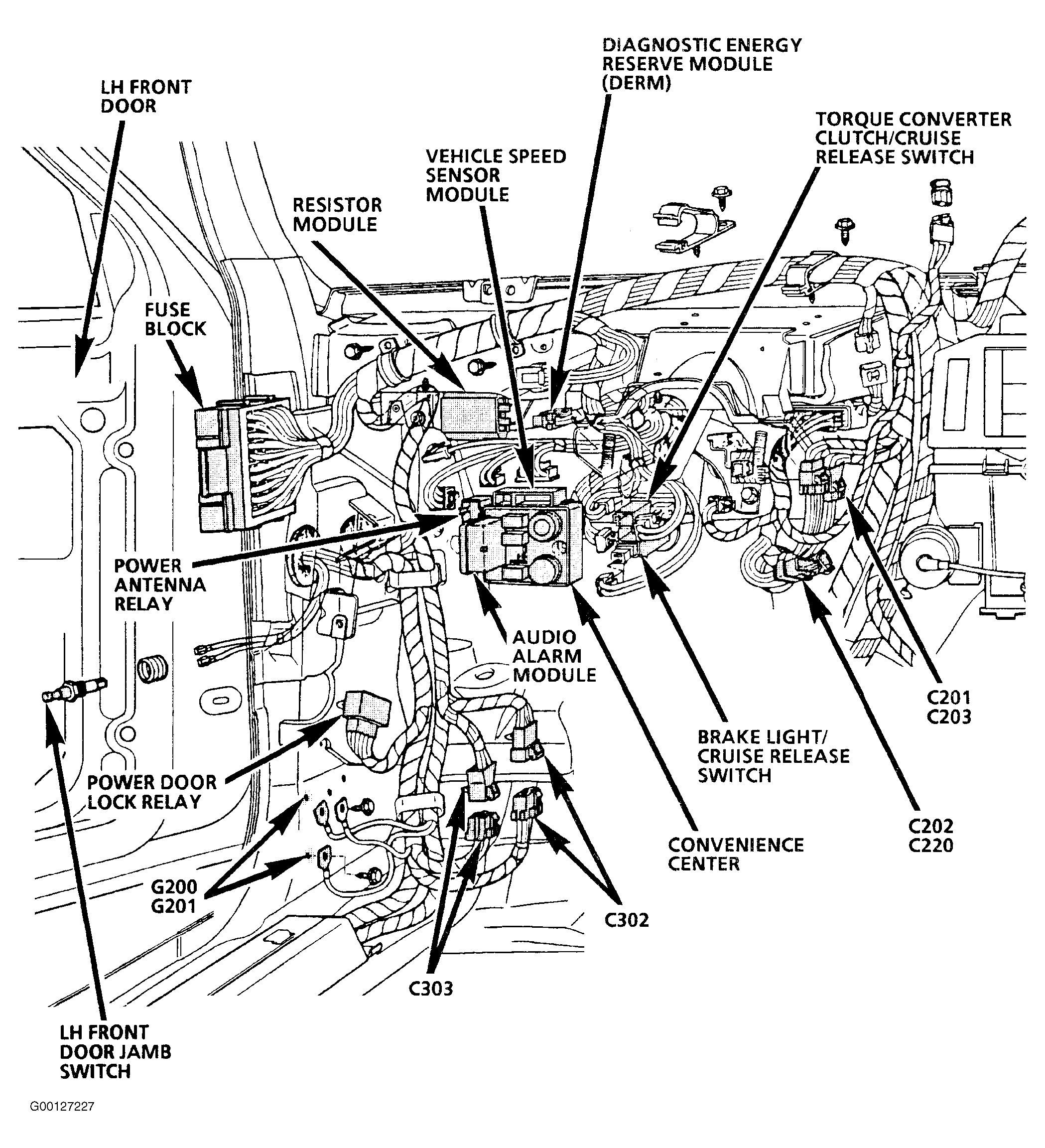

Fig 1: Locating Fuse Block
