Component Locations

COMPONENT LOCATIONS

Component Location
Body Computer Module (BCM) Behind Right Side Of Instrument Panel. See Fig 7 .
Fuse Block Right Side Of Instrument Panel. See Fig 4 .
Isolated Ground Junction Block Right Front Of Engine Compartment, Behind Battery. See Fig 3 .
Keyless Entry Module Center Front Of Luggage Compartment, Below Rear Shelf. See Fig 9 and Figure .
Luggage Compartment Lid Release Solenoid Center Rear Of Luggage Compartment. See Fig 11 .
Power Door Lock Motor In Center Rear Portion Of Each Door. See Fig 8 .
Power Door Lock Relay Behind Left Side Of Instrument Panel. See Fig 12 and Figure .
RKE Antenna Grid Center Of Rear Window Header. See Fig 14 .
Transaxle Position Switch Left Rear Of Engine, Top Of Transaxle. See Fig 16 and Figure .
Vehicle Access Code (VAC) Connector Center Front Of Luggage Compartment. See Fig 9 .
C123 (7 Cavities) Left Rear Of Engine, Above Transaxle. See Fig 16 and Figure .
C200 (56 Cavities) Behind Right Side Of Instrument Panel, Near Shroud. See Fig 13 and Figure .
C201 (116 Cavities) Behind Center Of Instrument Panel, Right Of Steering Column. See Fig 6 , Figure and Figure .
C240 (56 Cavities) Behind Right Side Of Instrument Panel, Near Powertrain Control Module (PCM). See Fig 17 and Figure .
C502 (3 Cavities) In Center Portion Of Left Door. See Fig 8 .
C602 (3 Cavities) In Center Portion Of Right Door. See Fig 15 .
G100 Right Front Corner Of Engine Compartment, Behind Headlight. See Fig 2 .
G103 Right End Of Front Cylinder Head, Below Generator. See Fig 18 .
G306 On Left Shroud, Above Park Brake. See Fig 12 .
G310 Behind Rear Seat, On Right Diagonal Brace. See Fig 1 .
P101 Behind Right Side Of Instrument Panel. See Fig 3 .
P103 Behind Right Side Of Instrument Panel. See Fig 17 .
P500 Front Of Left Door. See Fig 8 .
P600 Front Of Right Door. See Fig 15 .
S111 Engine Harness, Right Rear Of Engine.
S207 Dash Harness, Behind Right Side Of Instrument Panel. See Fig 7 .
S221 Dash Harness, Behind Right Side Of Instrument Panel. See Fig 7 .
S236 Body Main Harness, Below Right Front Seat. See Fig 13 .
S246 Dash Harness, Behind Right Side Of Instrument Panel. See Fig 7 .
S256 Instrument Panel Harness, Behind Center Of Instrument Panel. See Fig 5 .
S296 Body Main Harness. See Fig 1 .
S304 Body Main Harness. See Fig 13 .
S312, S313 & S315 Body Main Harness. See Fig 12 .
S323 & S343 Body Main Harness. See Fig 13 .
S408 Body Main Harness. See Fig 1 .
S409 Body Main Harness. See Fig 1 .
S419 Body Main Harness. See Fig 10 .

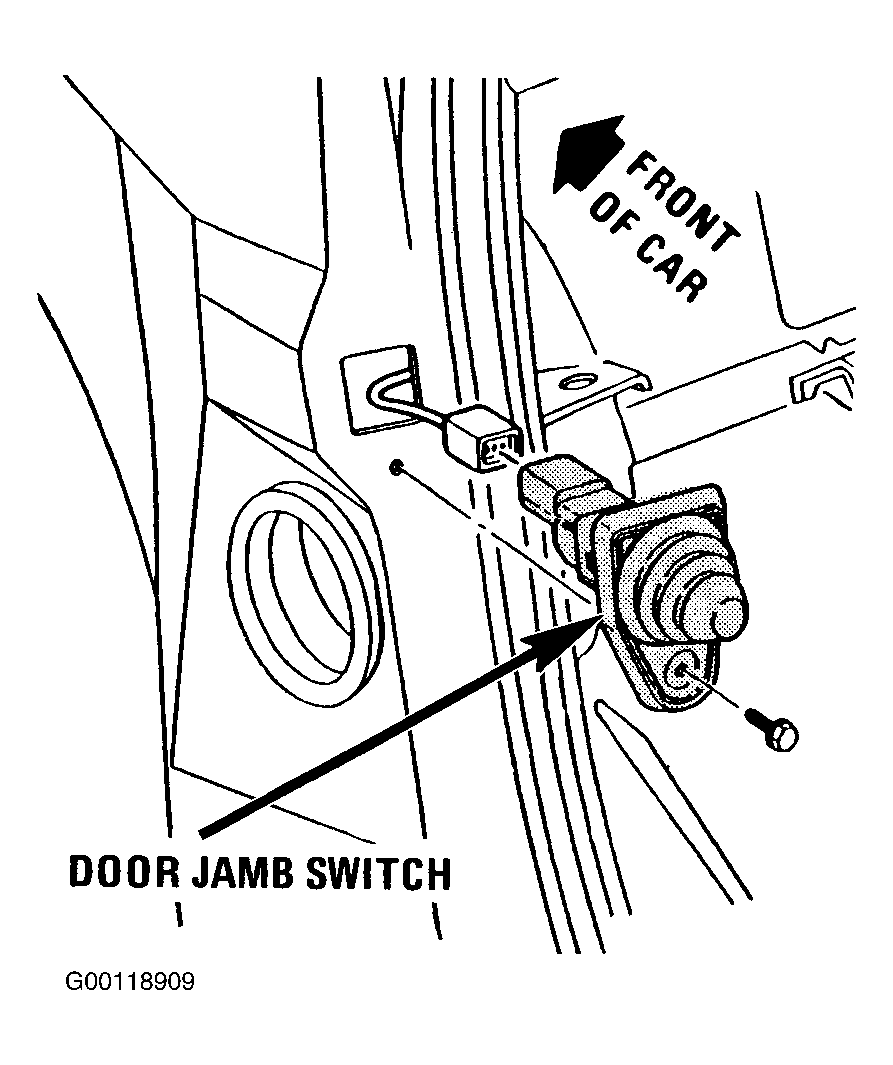

Fig 1: Locating Door Jamb Switch
G00118909Courtesy of GENERAL MOTORS CORP.

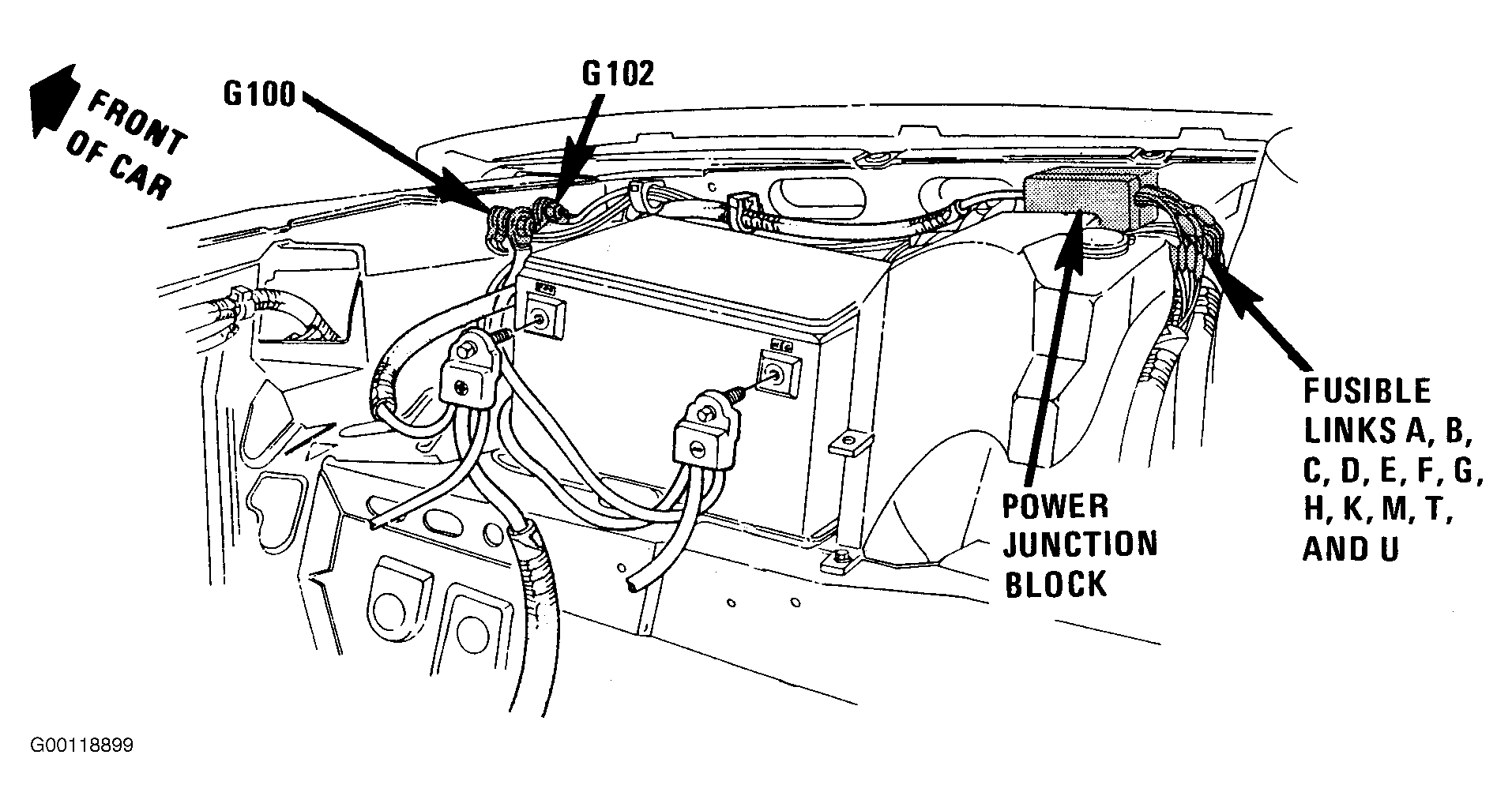

Fig 2: Locating Engine Compartment Components - Right Front
G00118899Courtesy of GENERAL MOTORS CORP.

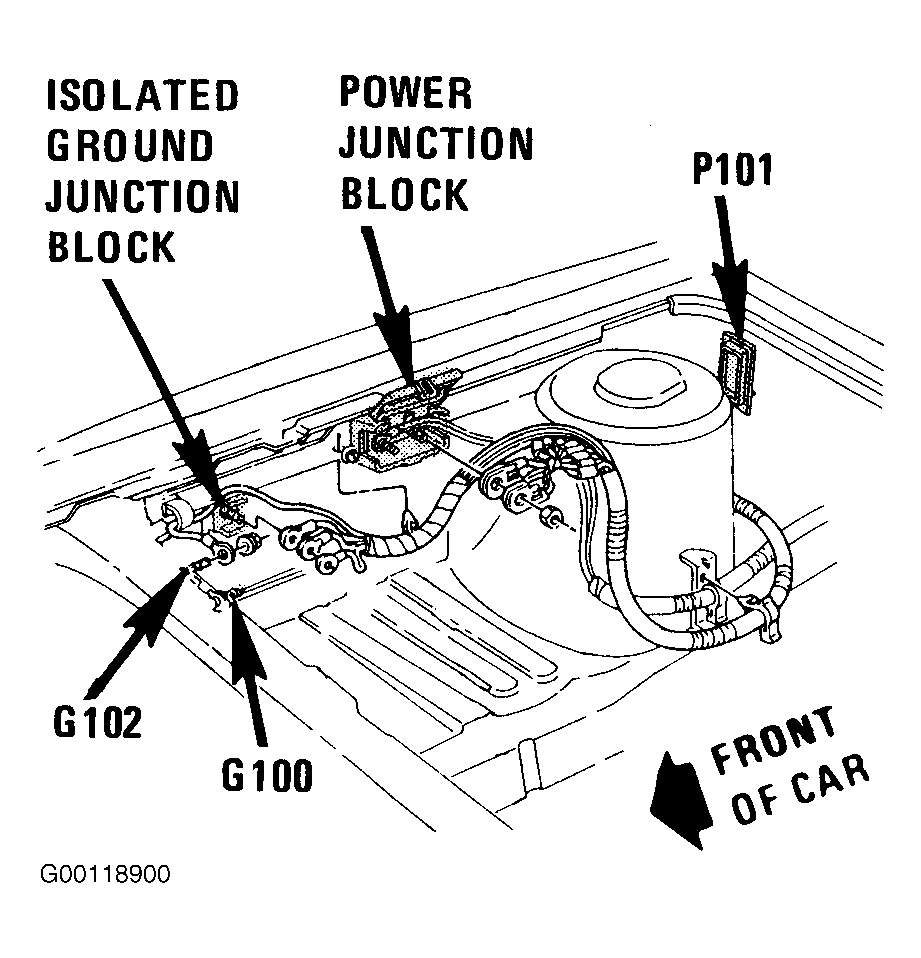

Fig 3: Locating Engine Compartment Components - Right Side
G00118900Courtesy of GENERAL MOTORS CORP.

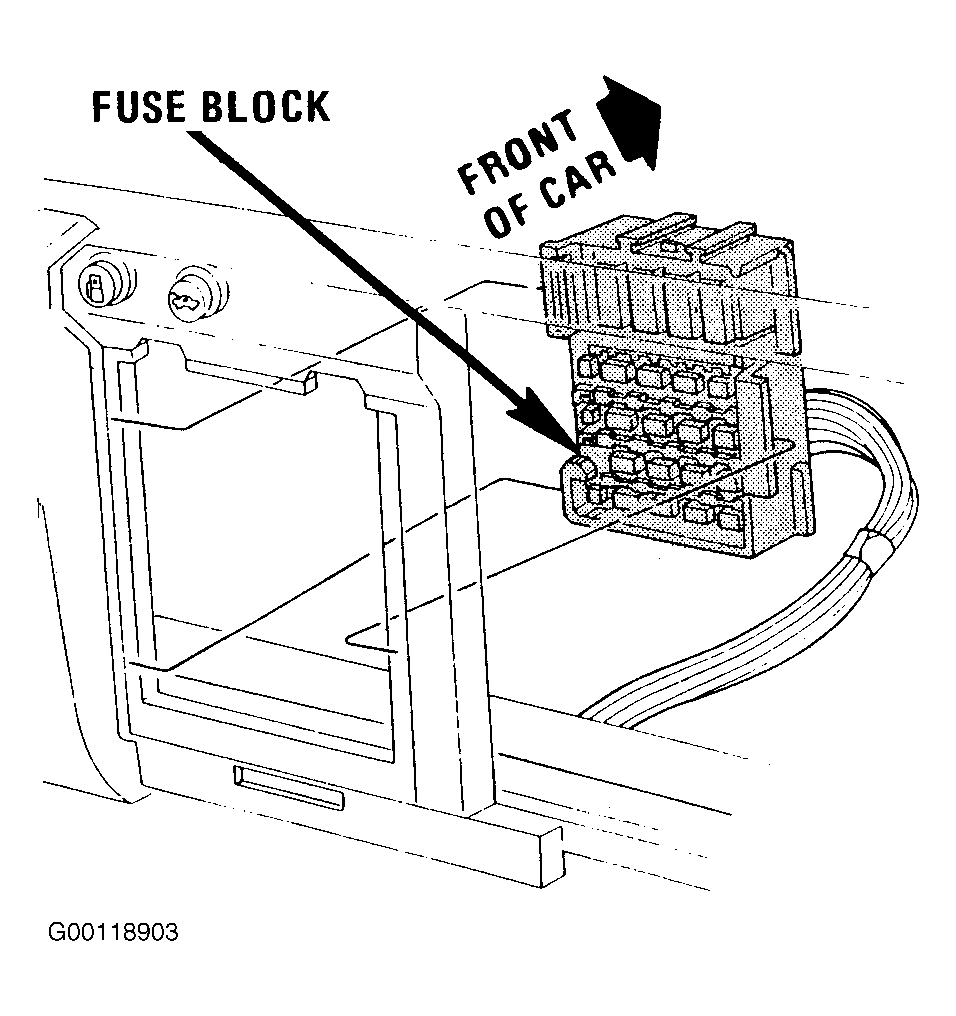

Fig 4: Locating Fuse Block
G00118903Courtesy of GENERAL MOTORS CORP.

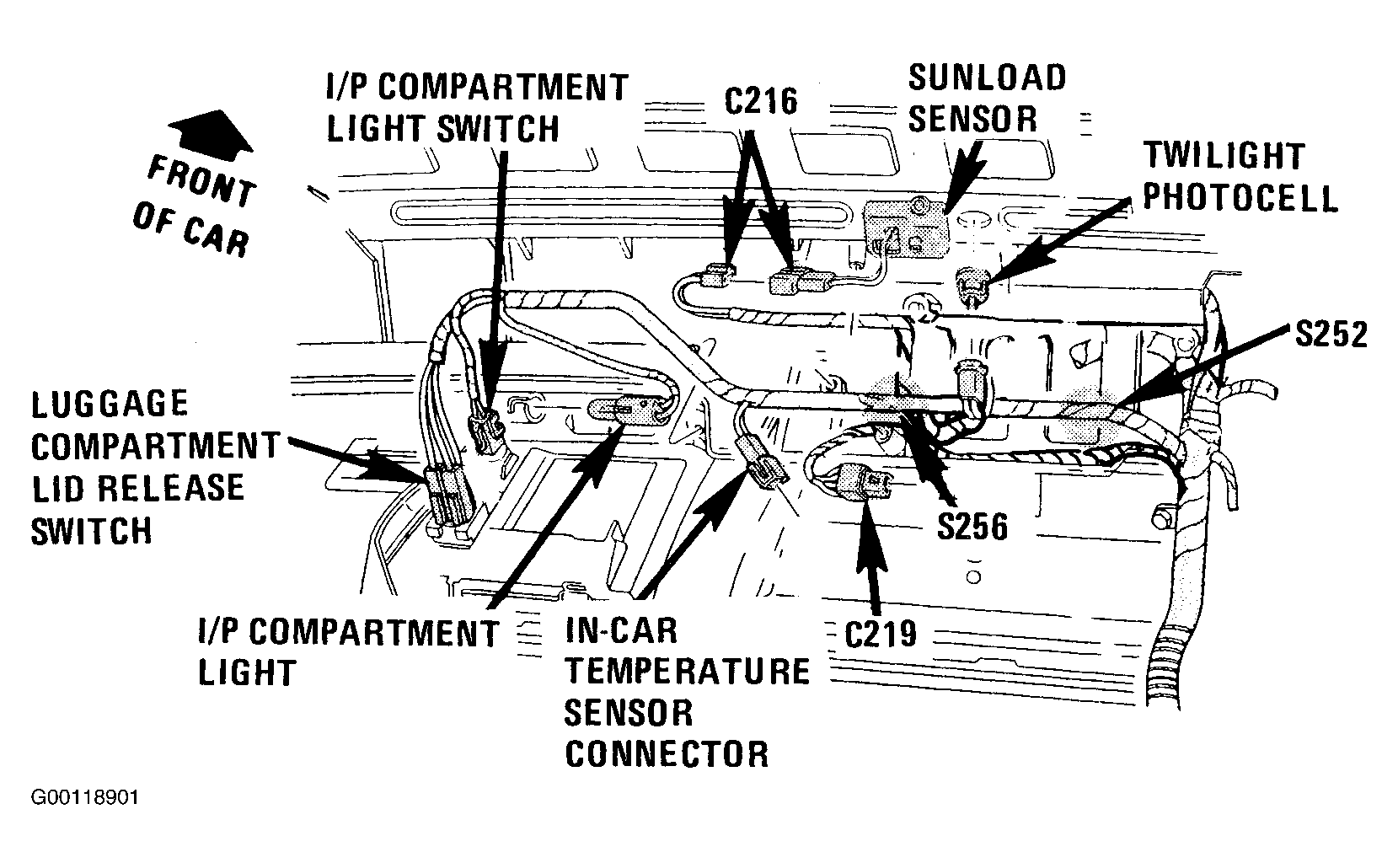

Fig 5: Locating Instrument Panel Components - Behind Center
G00118901Courtesy of GENERAL MOTORS CORP.

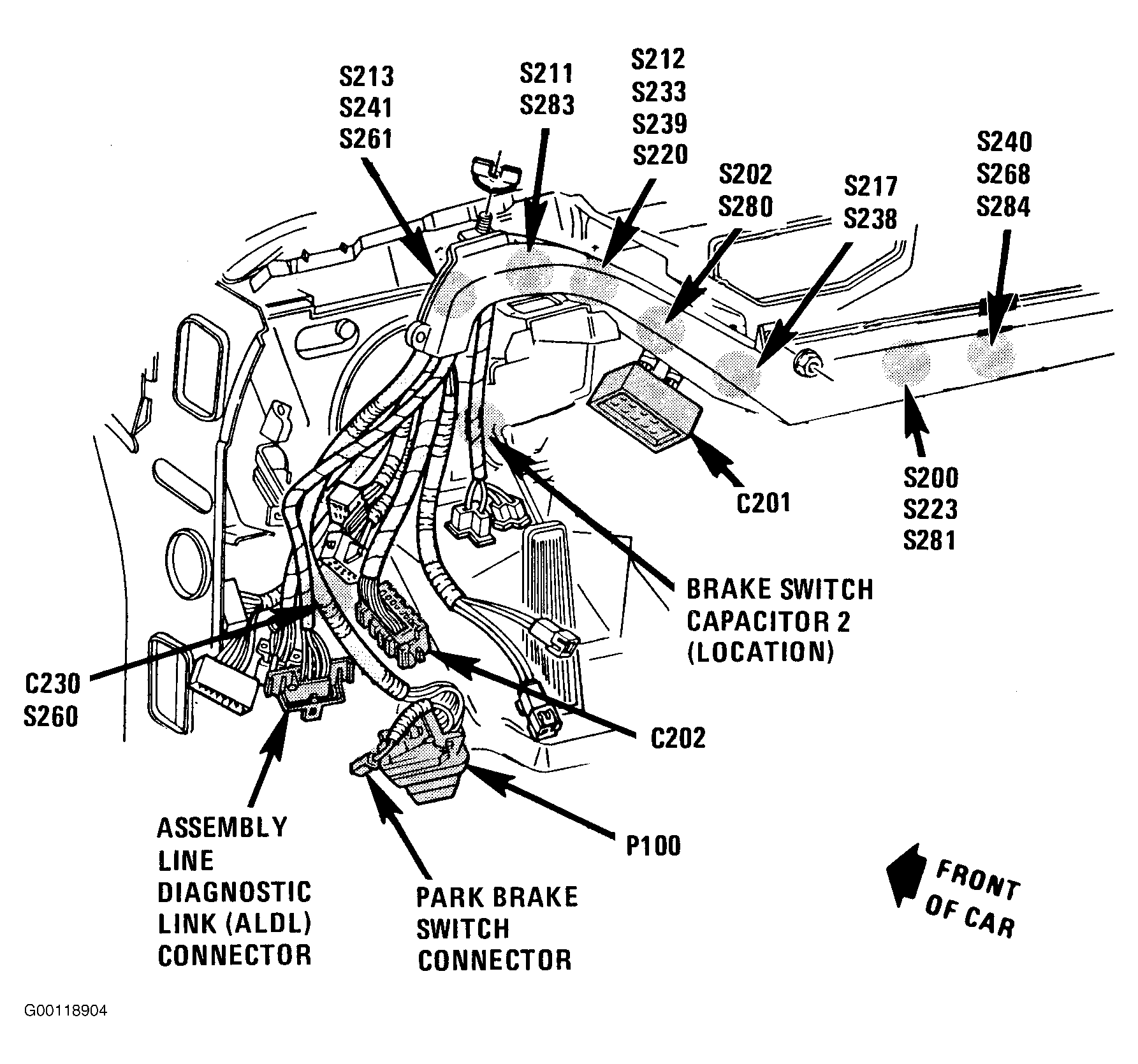

Fig 6: Locating Instrument Panel Components - Behind Left Side
G00118904Courtesy of GENERAL MOTORS CORP.

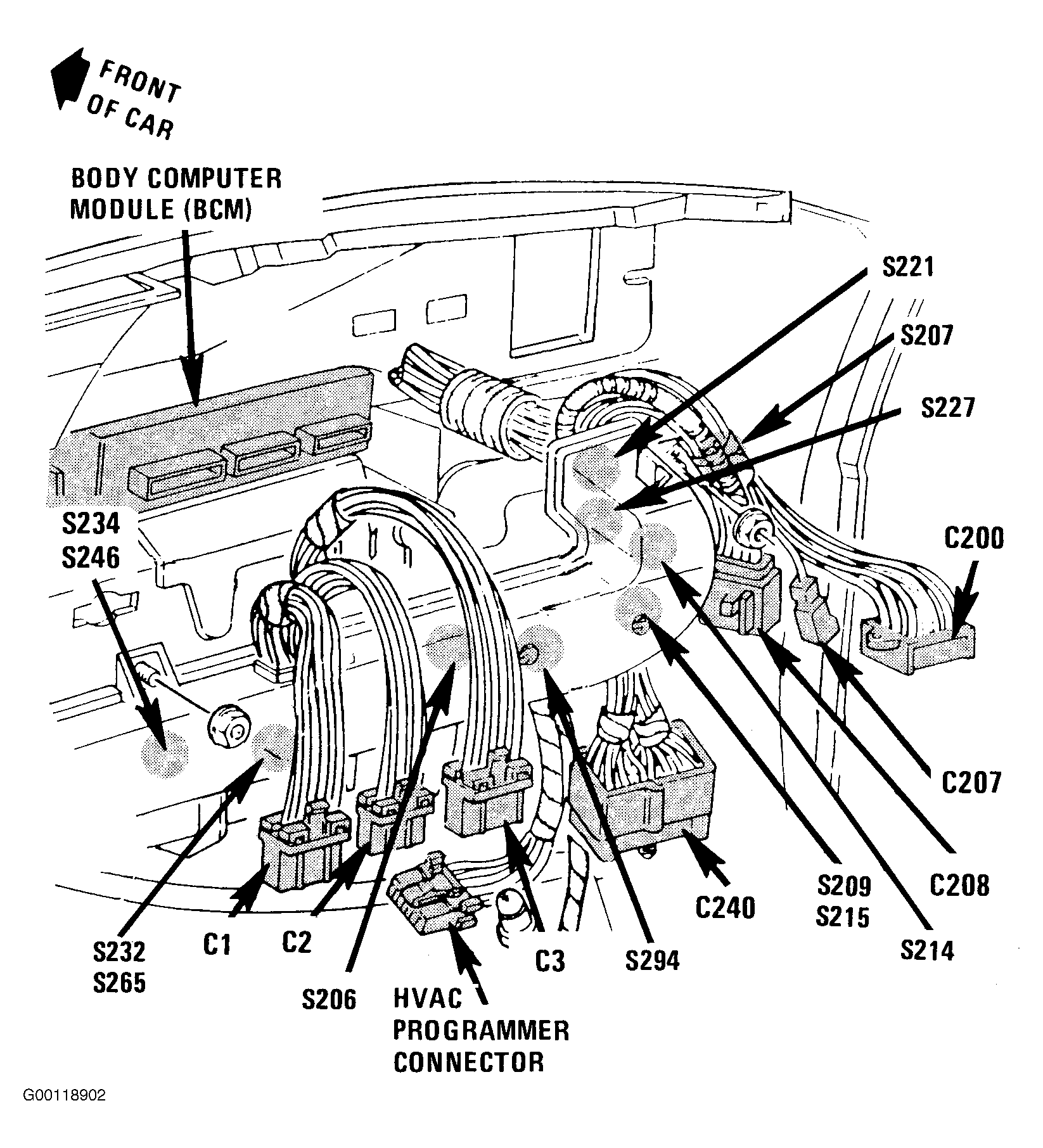

Fig 7: Locating Instrument Panel Components - Behind Right Side
G00118902Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating Left Door Components
G00118907Courtesy of GENERAL MOTORS CORP.
Fig 9: Locating Luggage Compartment Components - Center Front
G00118911Courtesy of GENERAL MOTORS CORP.

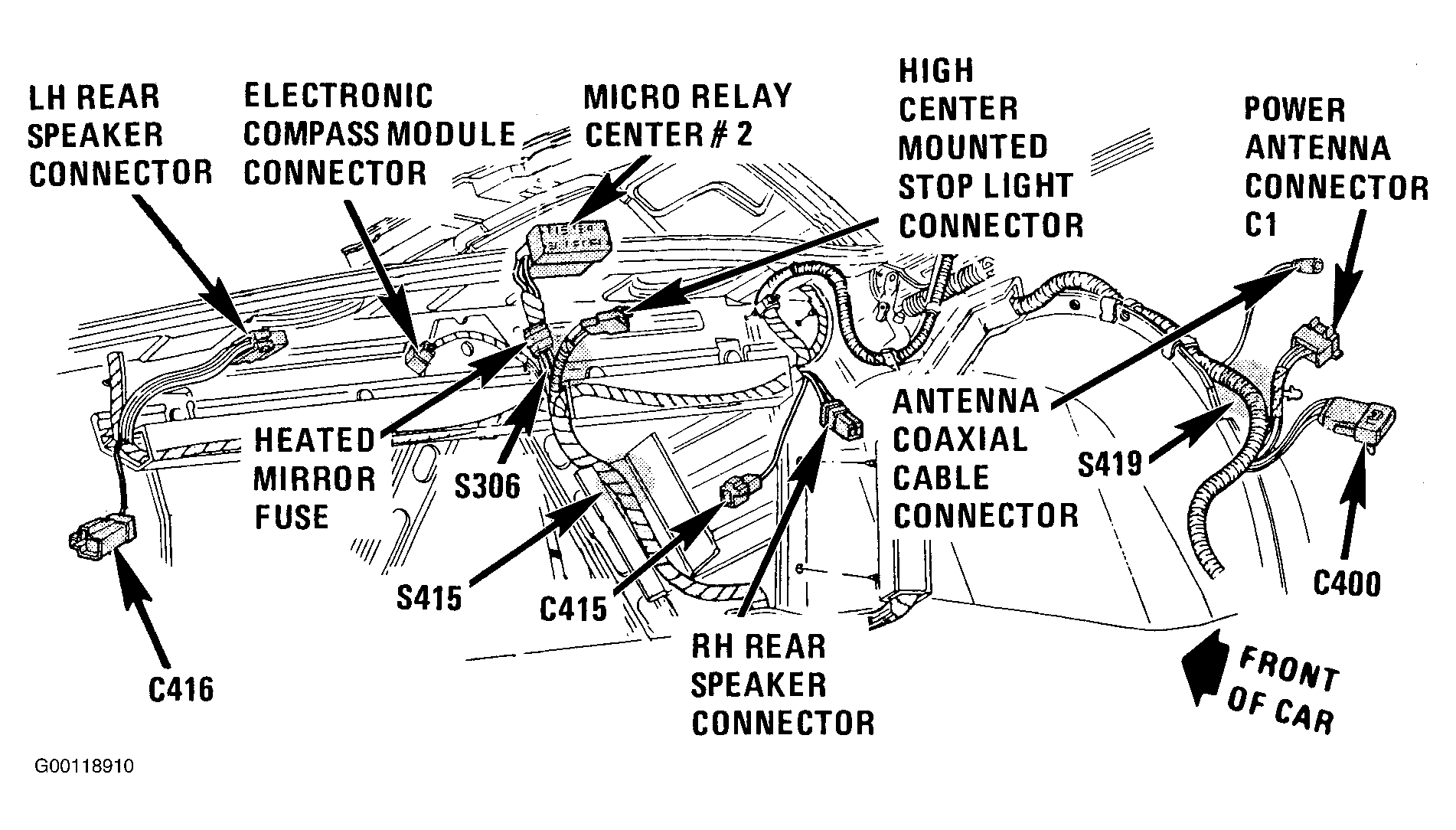

Fig 10: Locating Luggage Compartment Components - Front
G00118910Courtesy of GENERAL MOTORS CORP.

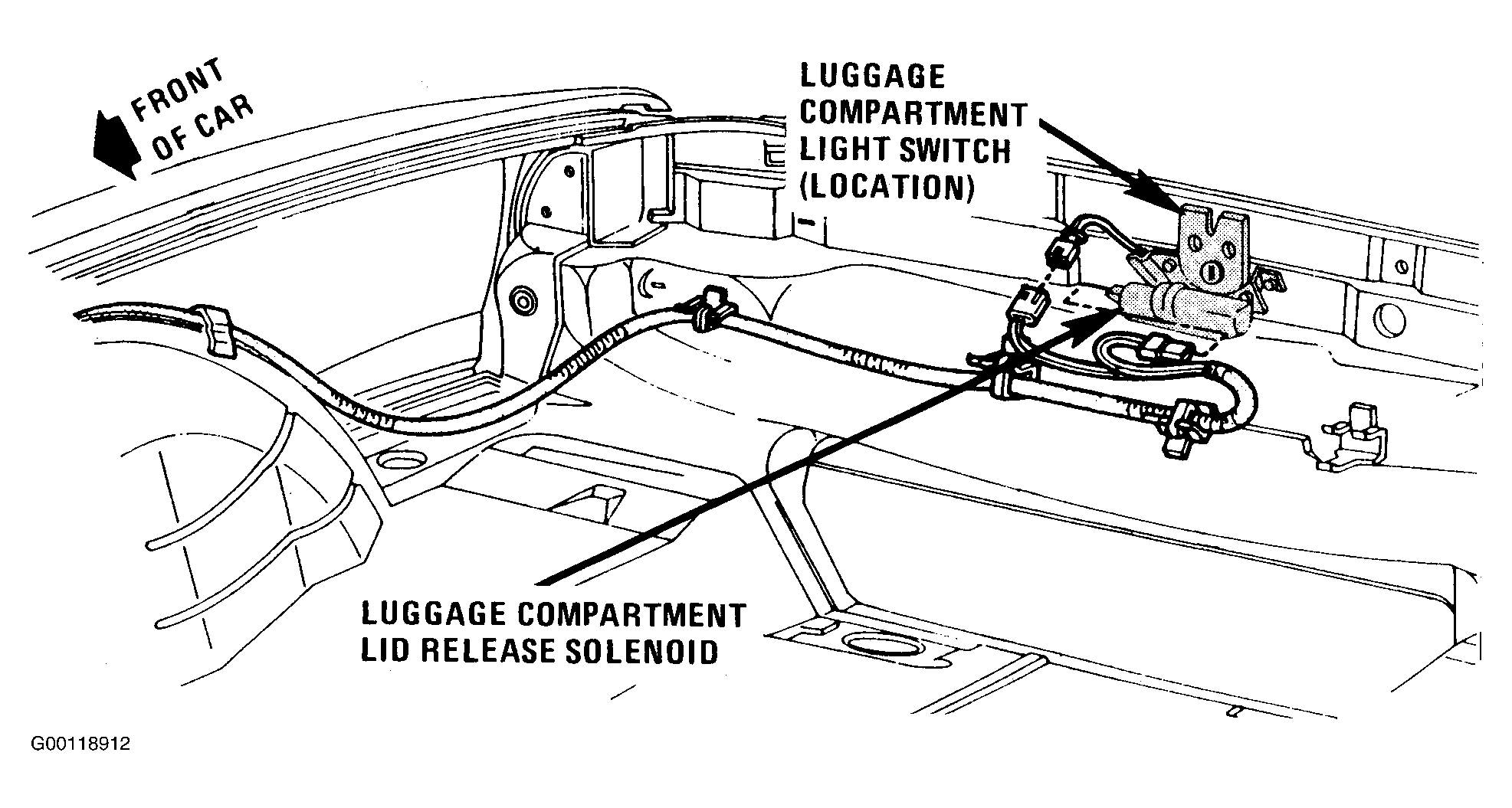

Fig 11: Locating Luggage Compartment Components - Rear
G00118912Courtesy of GENERAL MOTORS CORP.

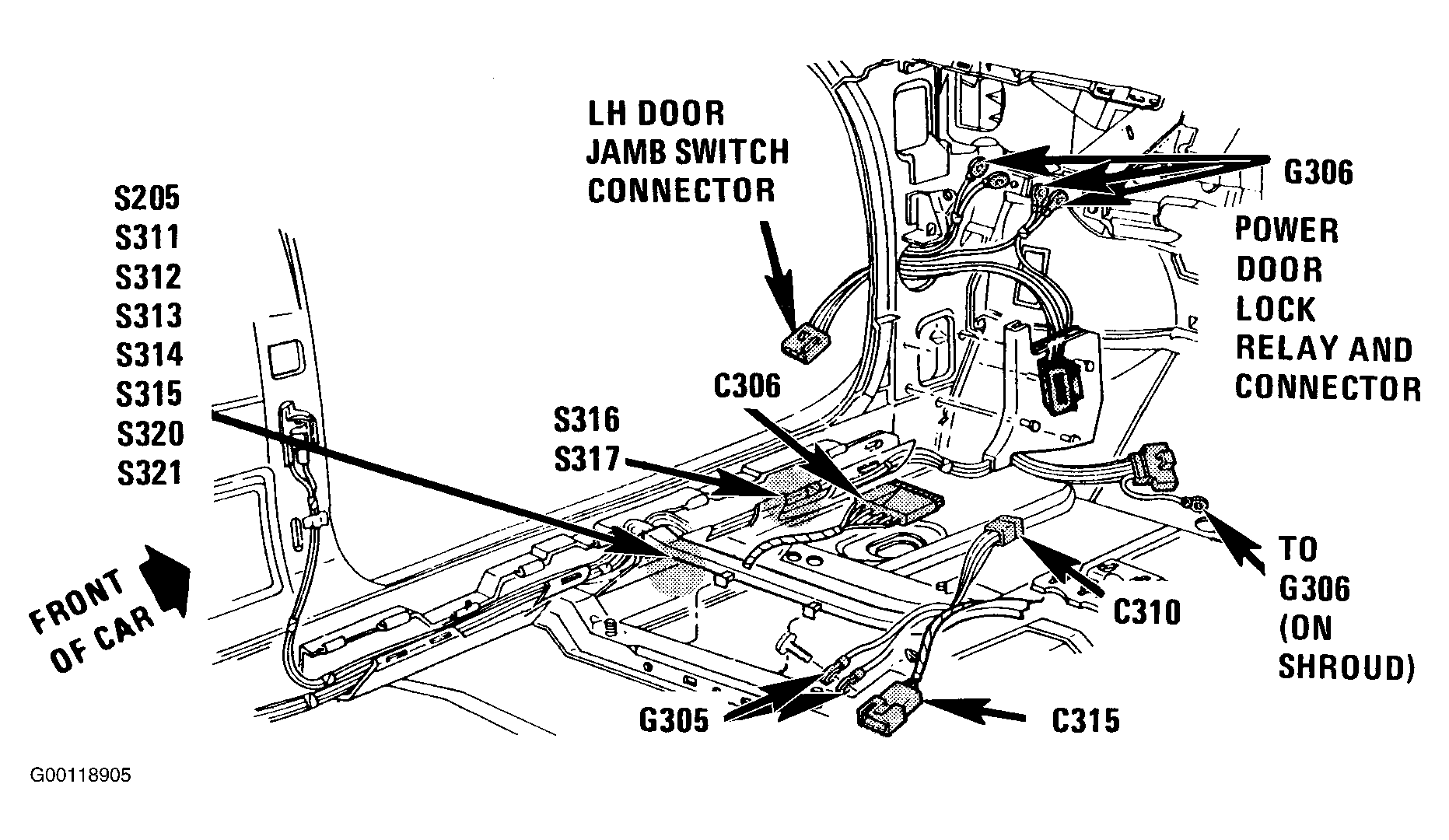

Fig 12: Locating Passenger Compartment Components - Left Side
G00118905Courtesy of GENERAL MOTORS CORP.

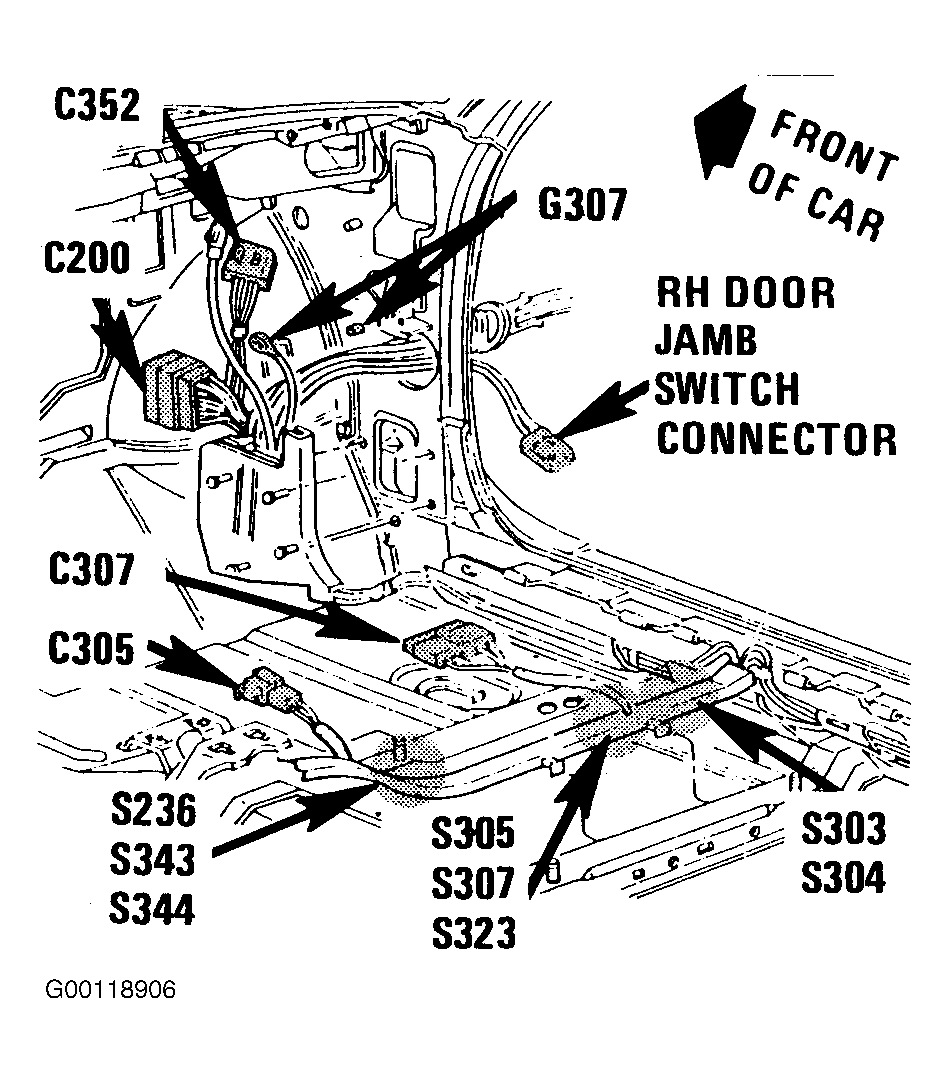

Fig 13: Locating Passenger Compartment Components - Right Side
G00118906Courtesy of GENERAL MOTORS CORP.

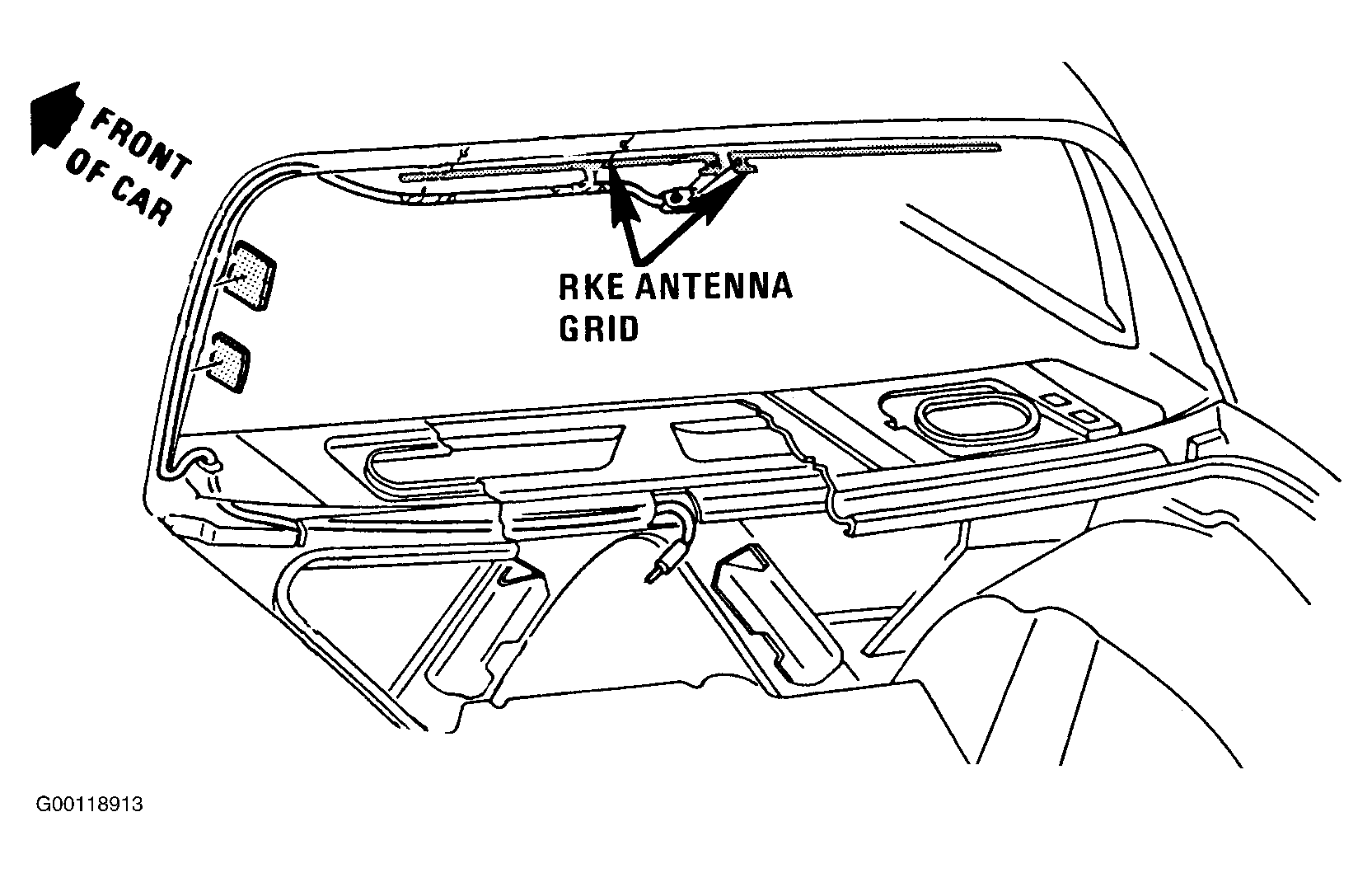

Fig 14: Locating Rear Window Components
G00118913Courtesy of GENERAL MOTORS CORP.

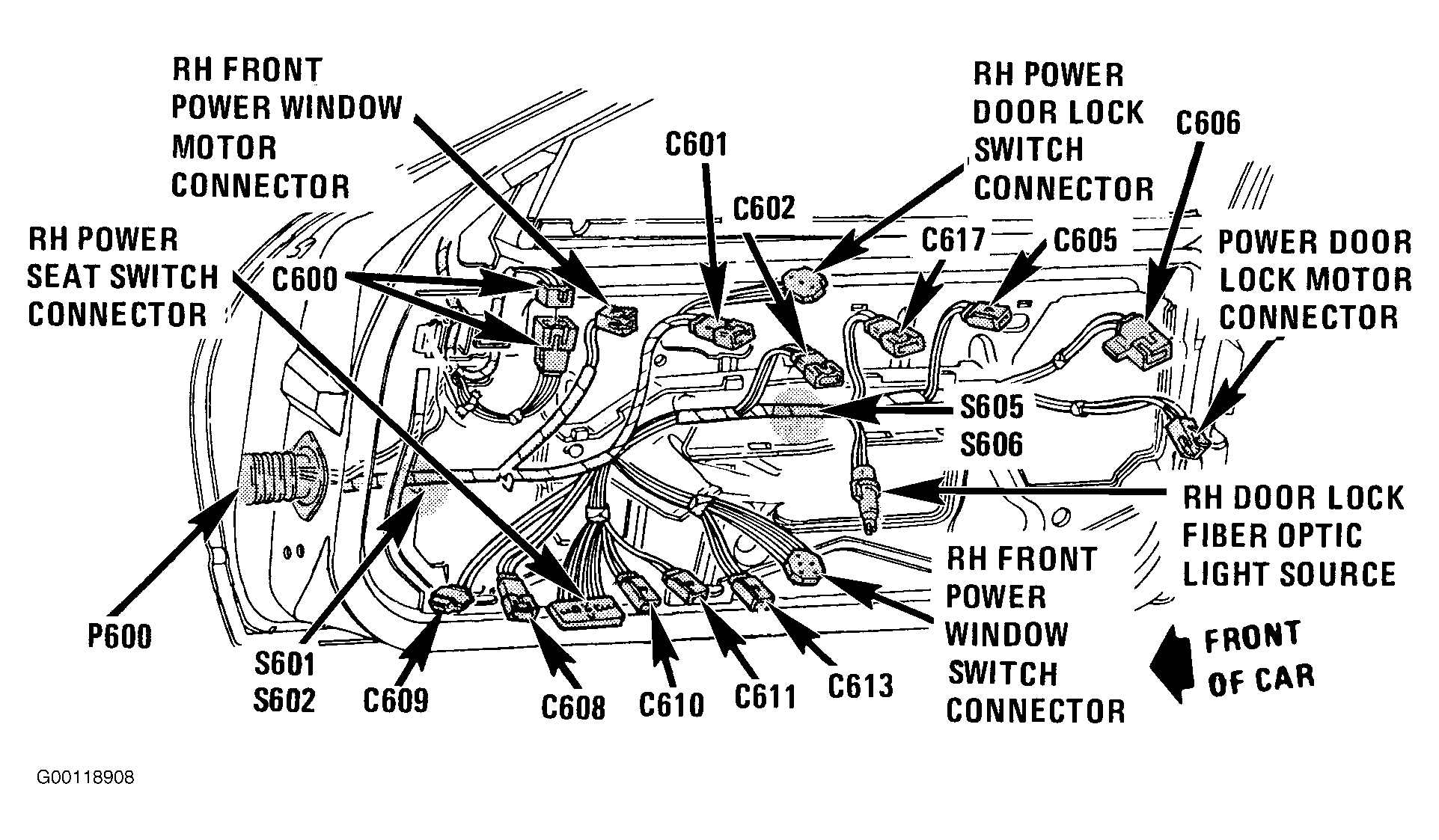

Fig 15: Locating Right Door Components
G00118908Courtesy of GENERAL MOTORS CORP.

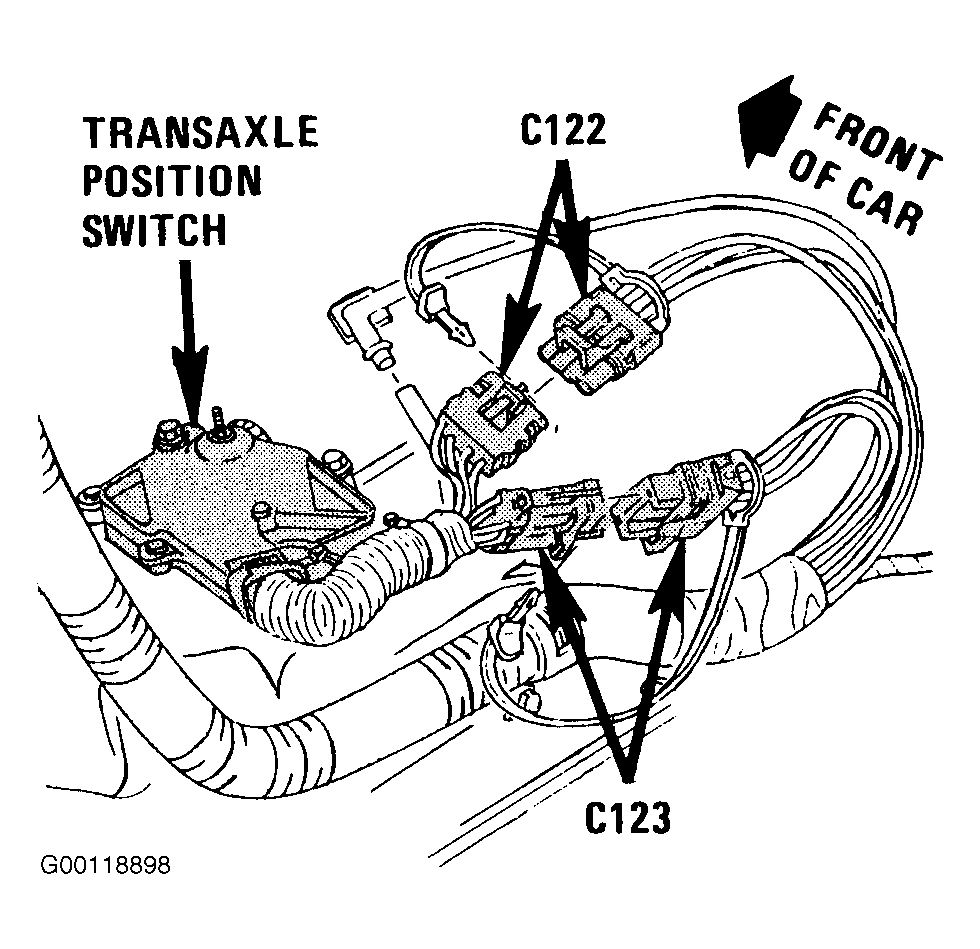

Fig 16: Locating Transaxle Components - Top
G00118898Courtesy of GENERAL MOTORS CORP.

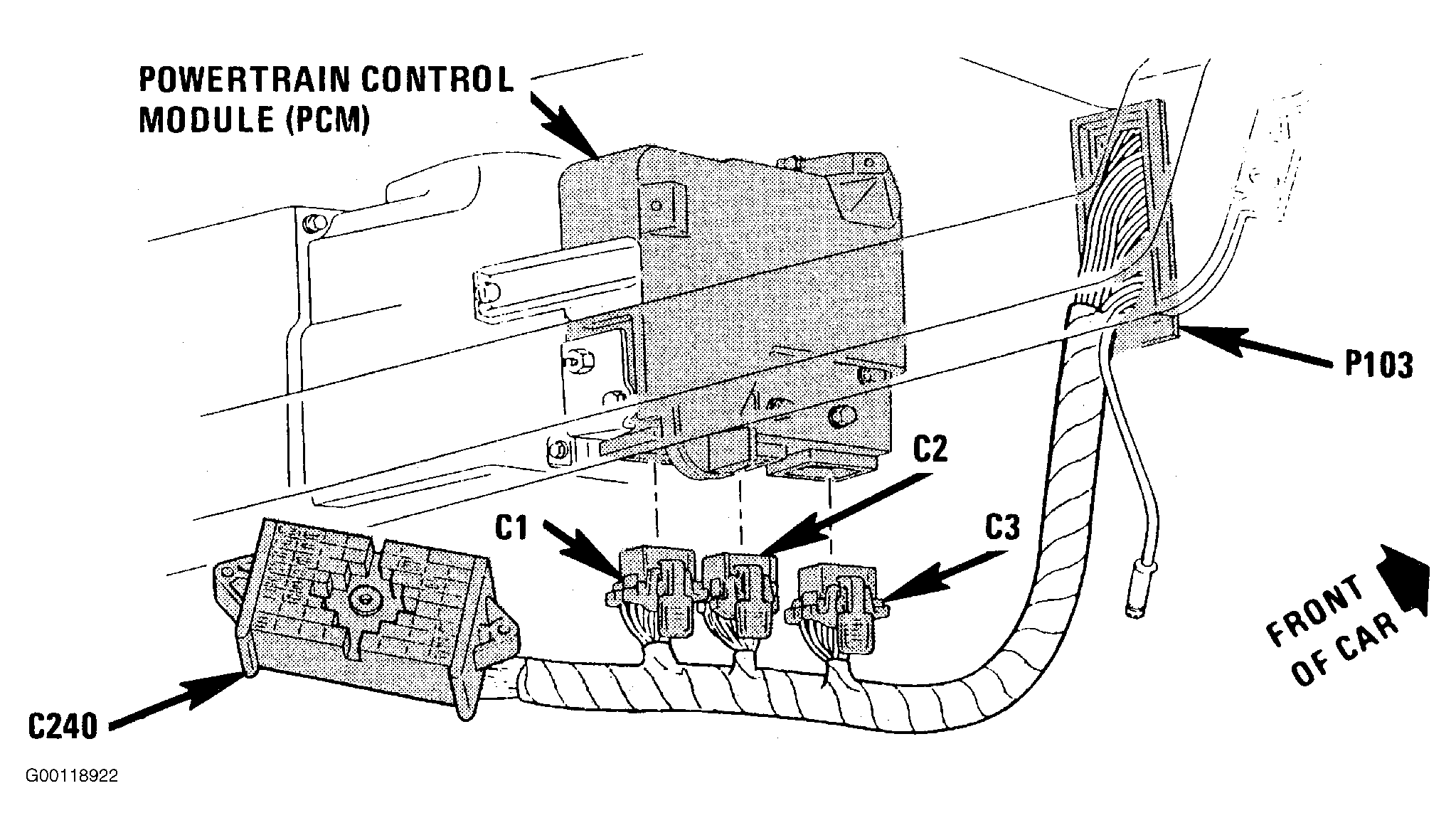

Fig 17: Locating Connectors C240 & P103
G00118922Courtesy of GENERAL MOTORS CORP.

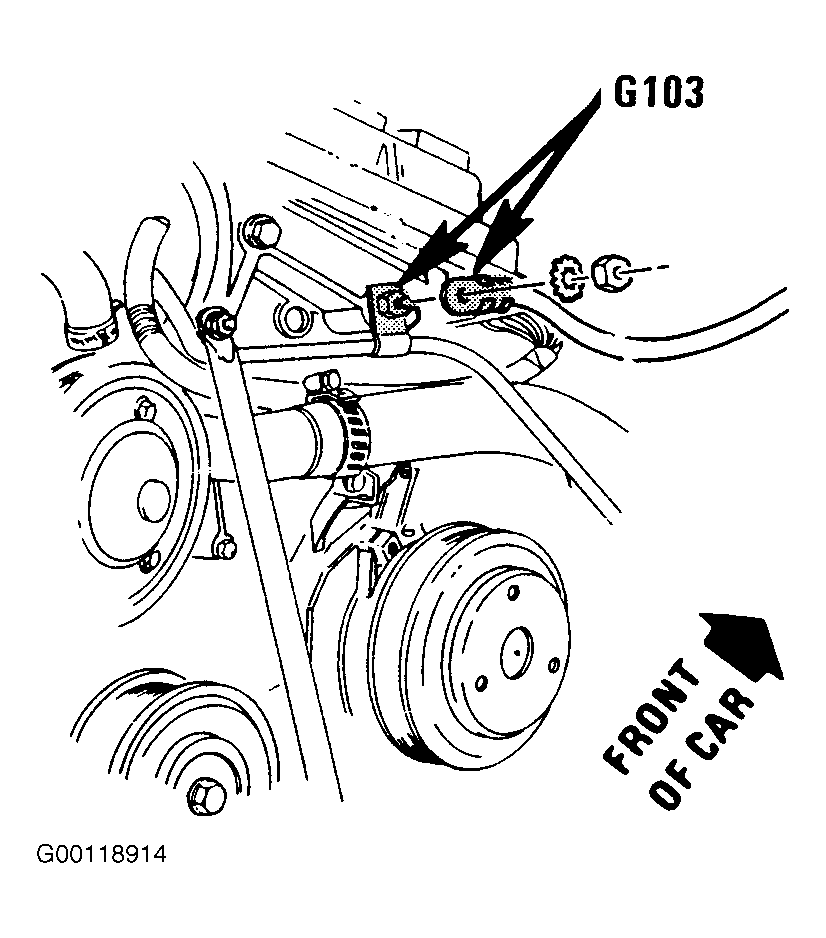

Fig 18: Locating Ground G103
G00118914Courtesy of GENERAL MOTORS CORP.
