Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | At left rear corner of engine compartment. |

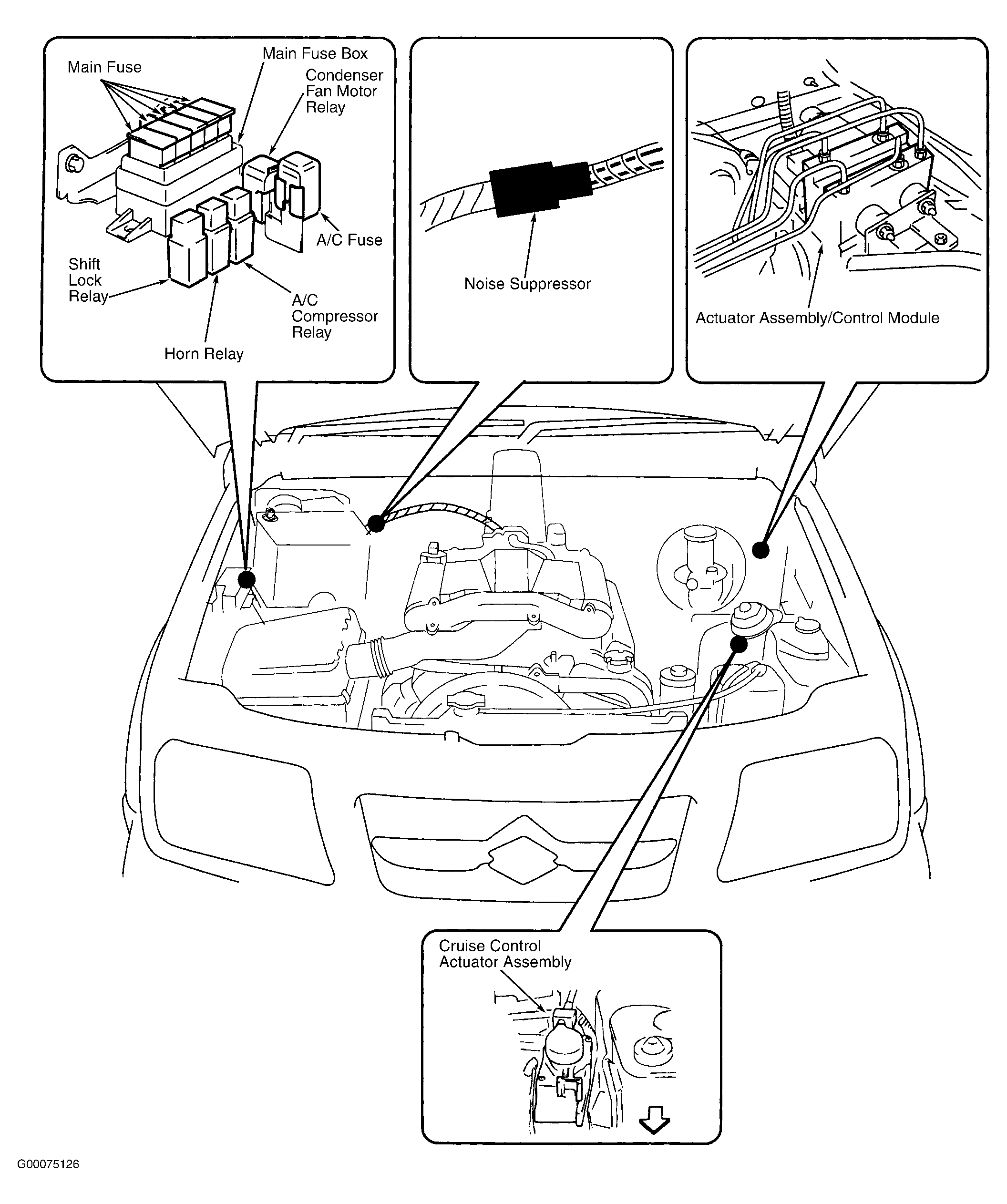

| Actuator Assembly/Control Module | At left rear corner of engine compartment. See Figure . |

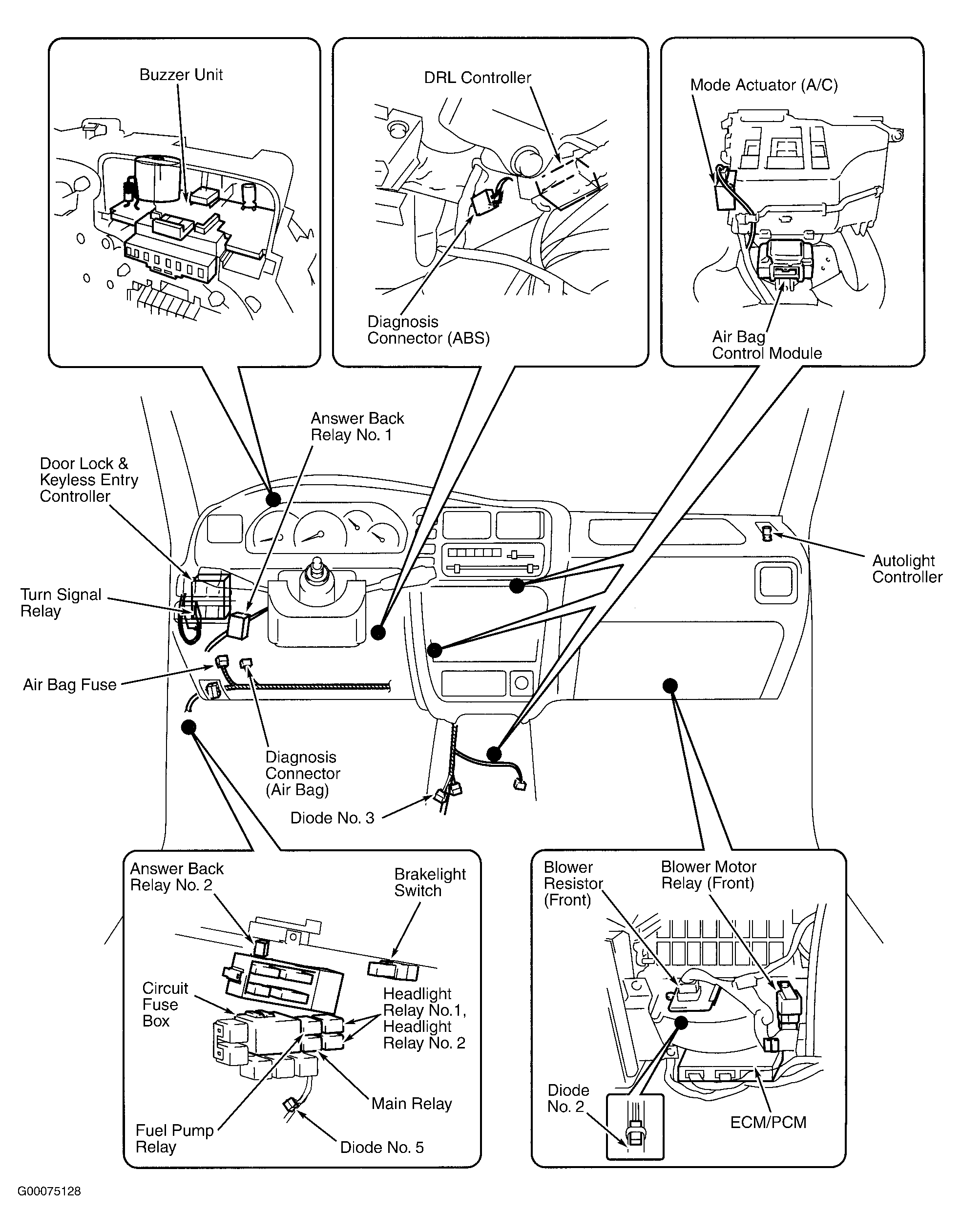

| Air Bag Control Module | At lower center of dash. See Figure . |
| Autolight Controller | On top right side of dash. See Figure . |
| Cruise Control Actuator Assembly | At left side of engine compartment. See Figure . |
| Door Lock & Keyless Entry Controller | Behind left side of dash, left of steering column. See Figure . |
| DRL Controller | Behind left side of dash, right of steering column. See Figure . |
| ECM/PCM | Behind glove box. See Figure . |
| Illumination Controller | Behind left side of dash. |

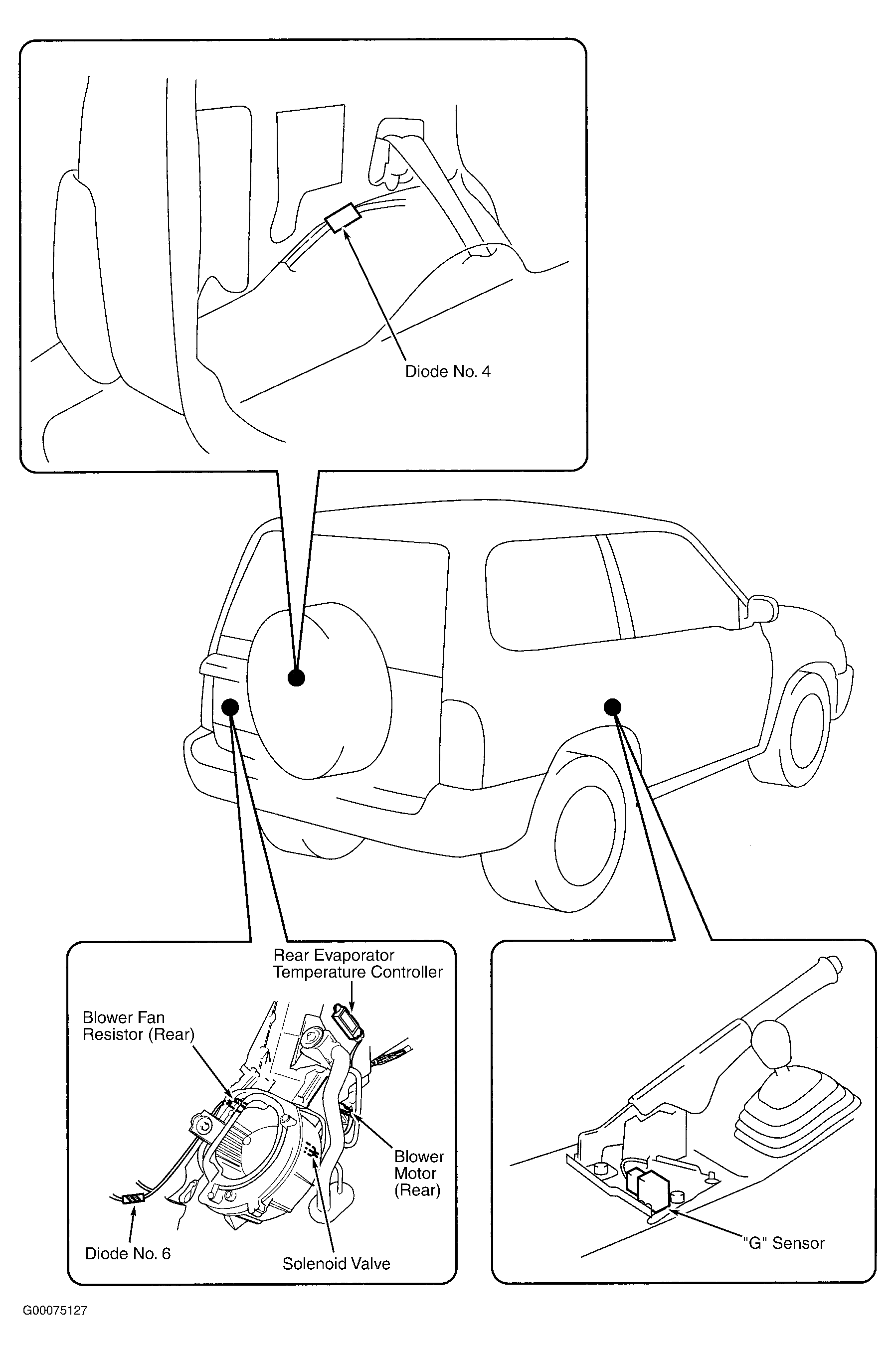

| Rear Evaporator Temperature Controller | At left rear of cargo compartment. See Figure . |
