Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Warning Lamp Module | Near left shock tower. |

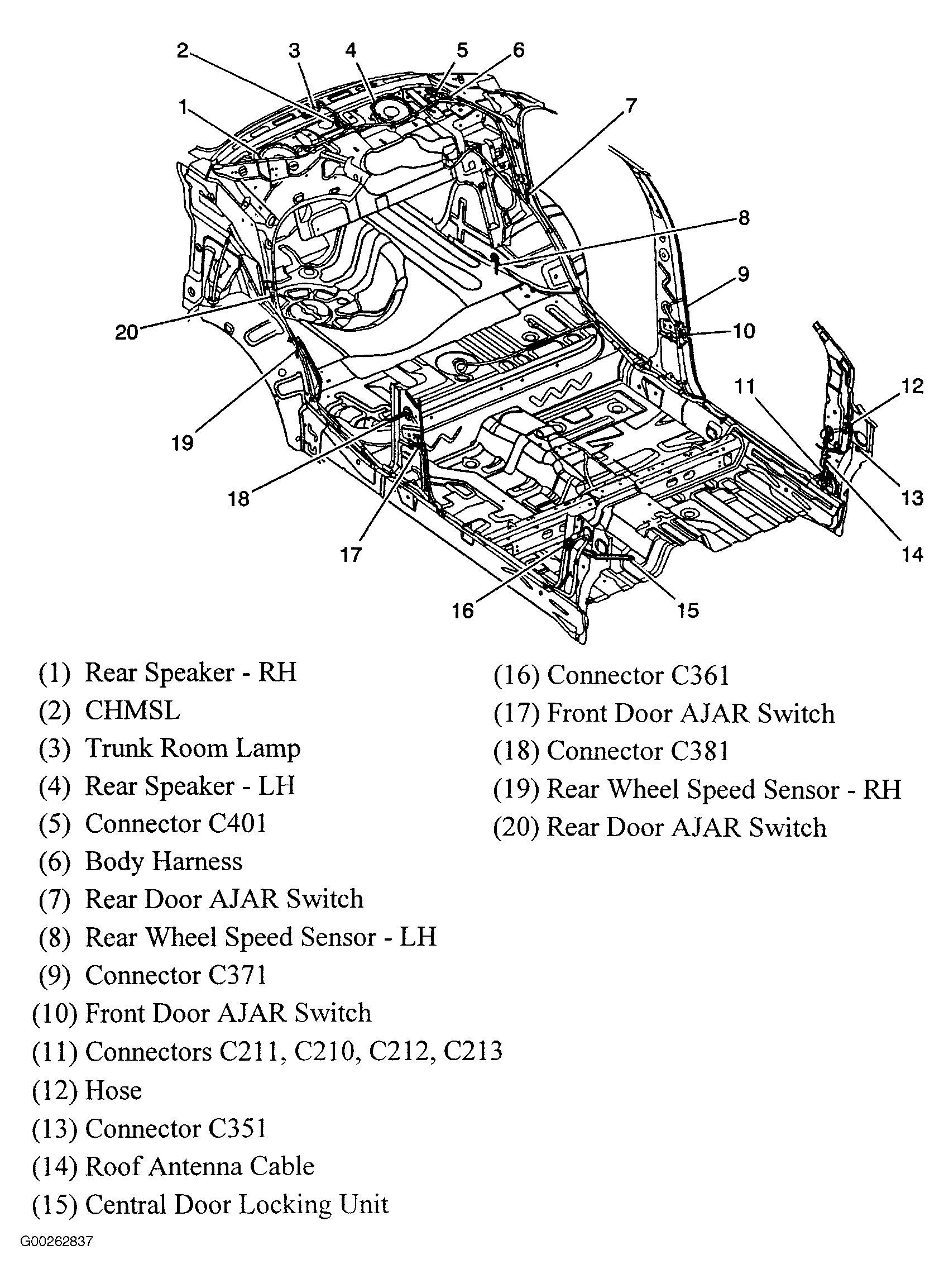

| Central Door Locking Unit | Bottom of right windshield pillar. See Figure. |

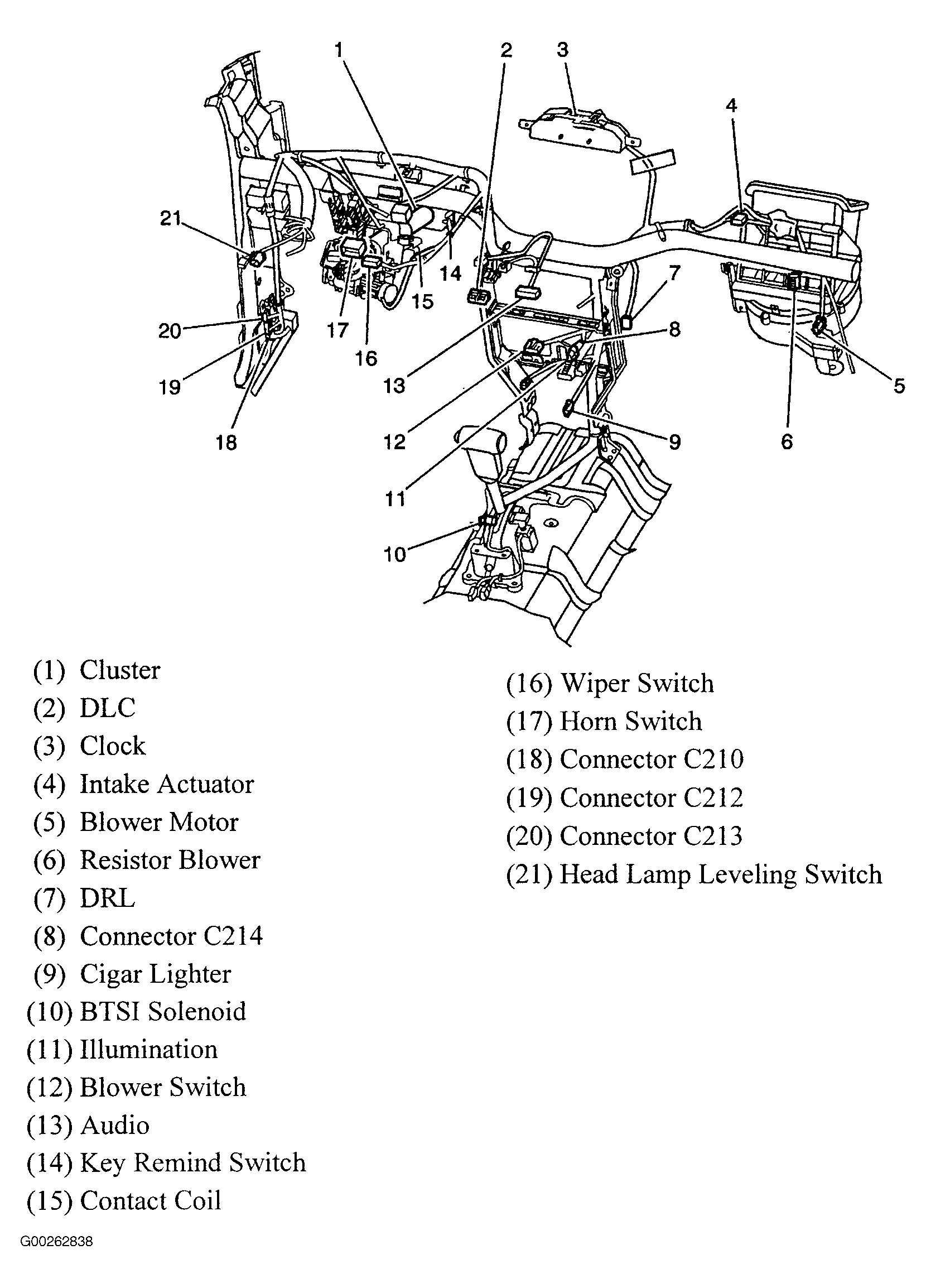

| DRL Module | Below the driver side of the instrument panel, near the center console. See Figure. |
| EBCM | Left side of engine compartment. |
| EI System | On rear of engine. |

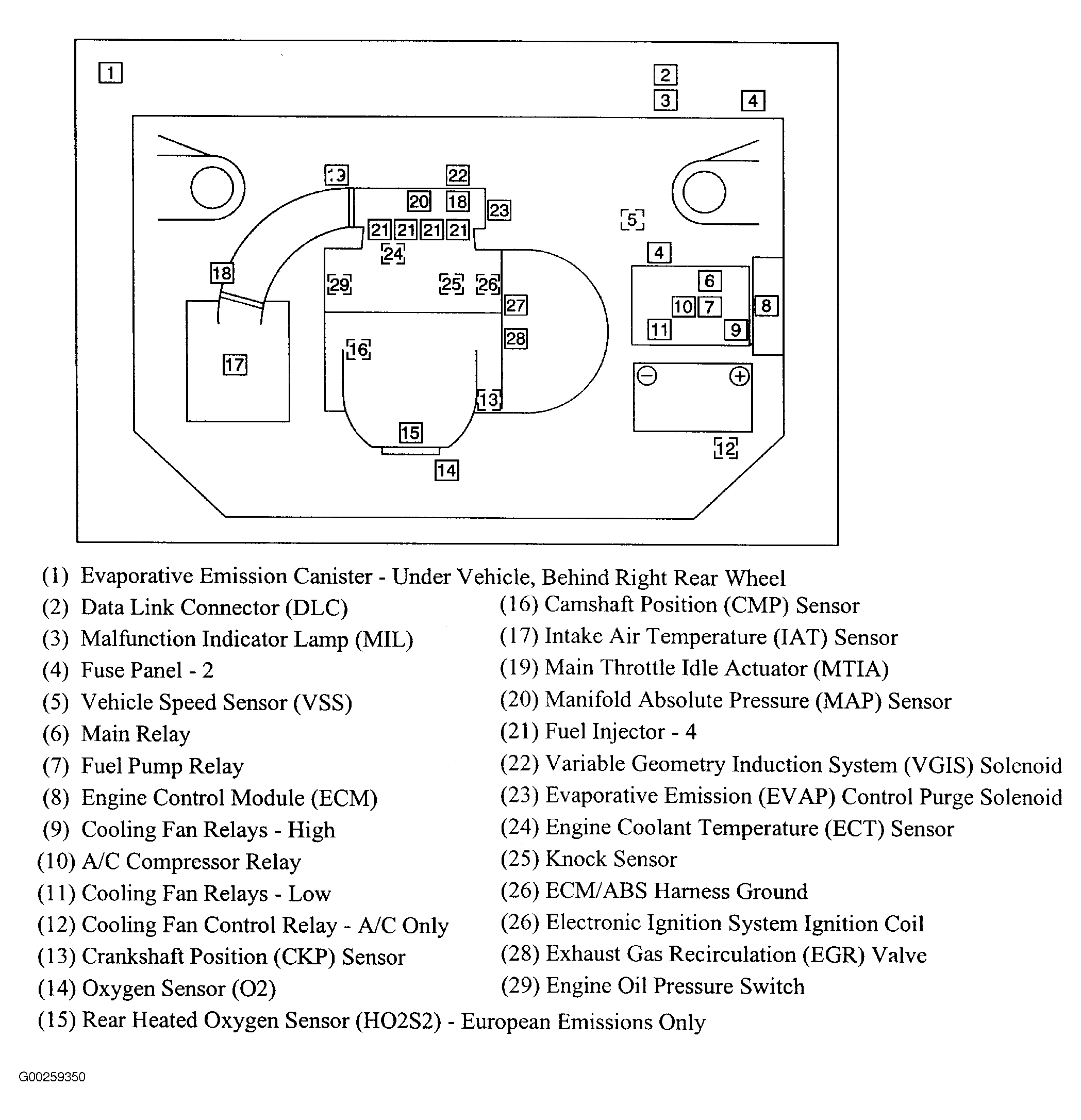

| Engine Control Module (ECM) | Left side of engine compartment. See Figure. |
| Lamp Control Module | Behind driver side knee bolster. |

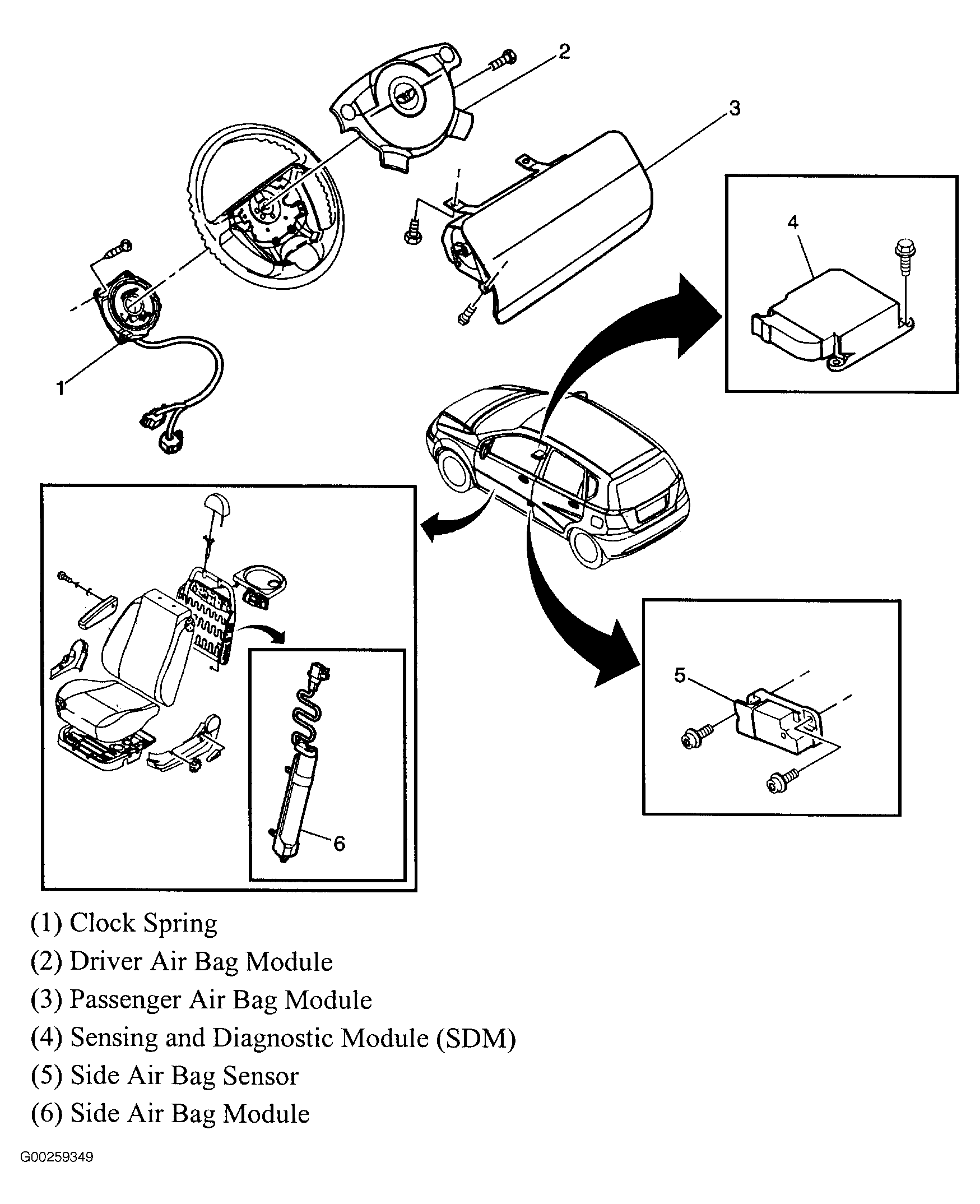

| Sensing & Diagnostic Module (SDM) | Below center console. See Figure. |
| Theft Deterrent Control Module | Near the ignition switch. |

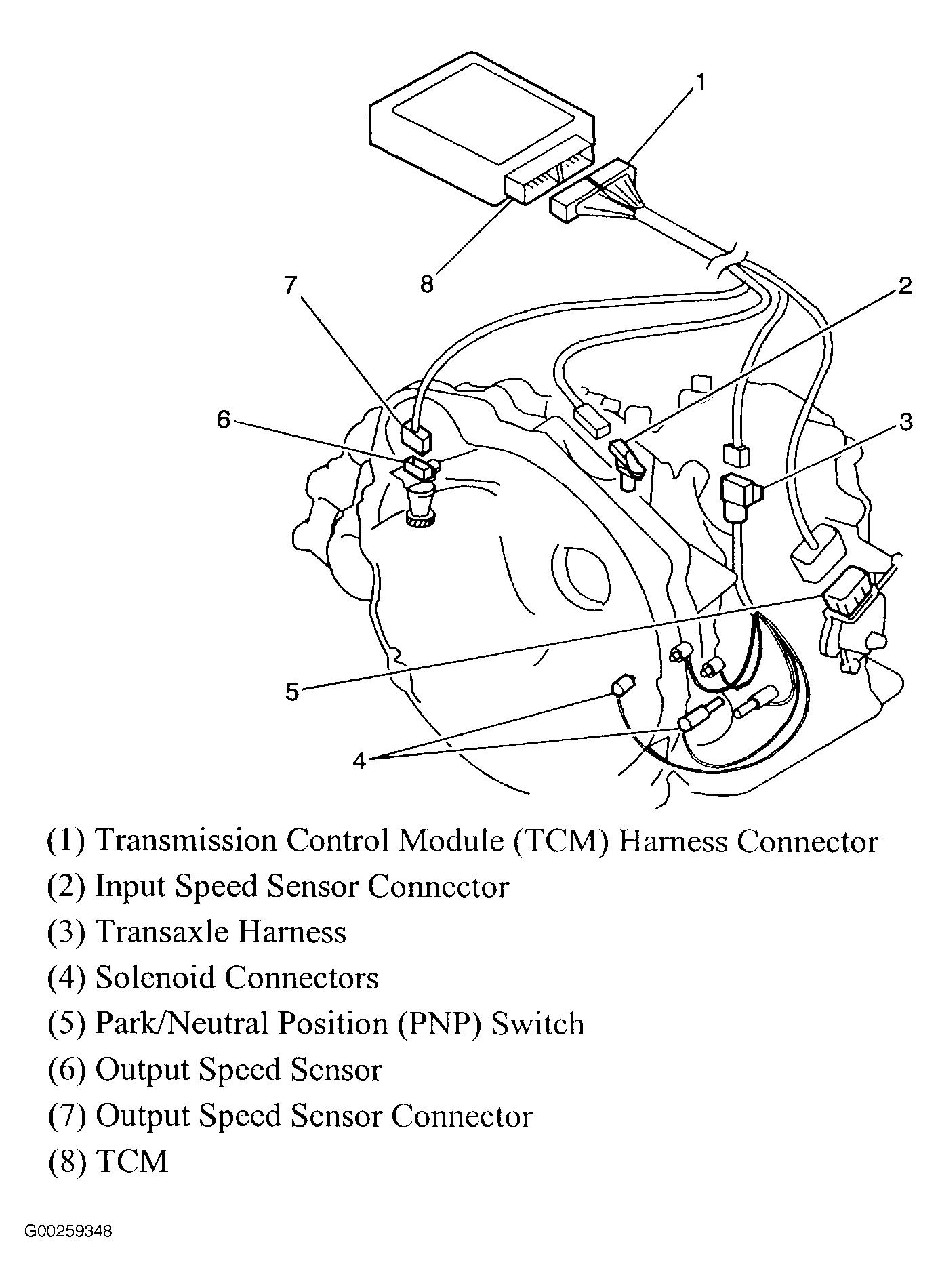

| Transmission Control Module (TCM) | On driver's side of vehicle, above brake pedal assembly. See Figure. |
| Transmission Control Module (TCM) Harness Connector | On transmission control module. See Figure. |
