Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Warning Lamp Module | Near left shock tower. |
| Central Door Locking Unit | Bottom of right windshield pillar. See Figure. |
| Chime Module | Under left side of dash. |

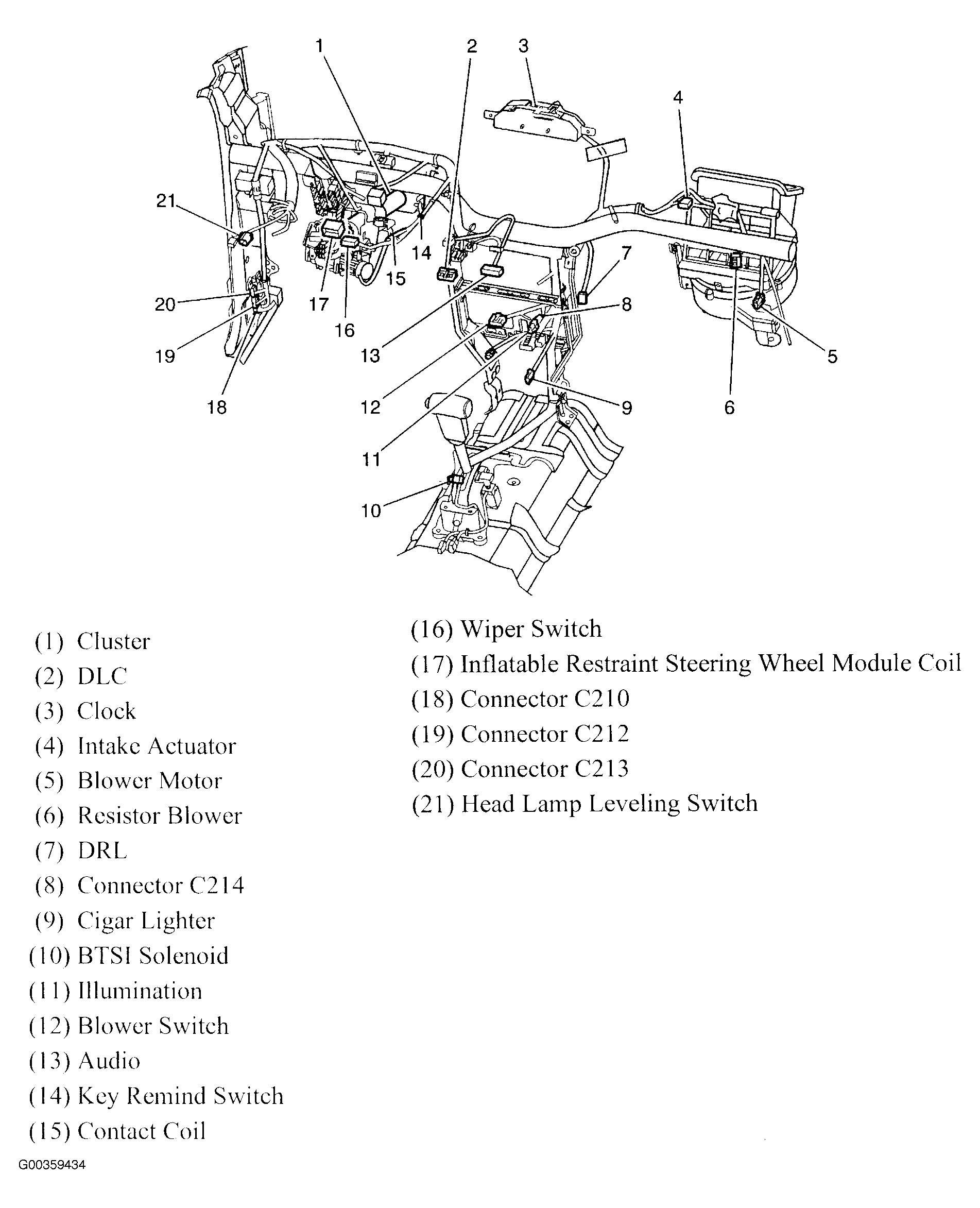

| DRL | Behind dash, right of center console. See Figure. |

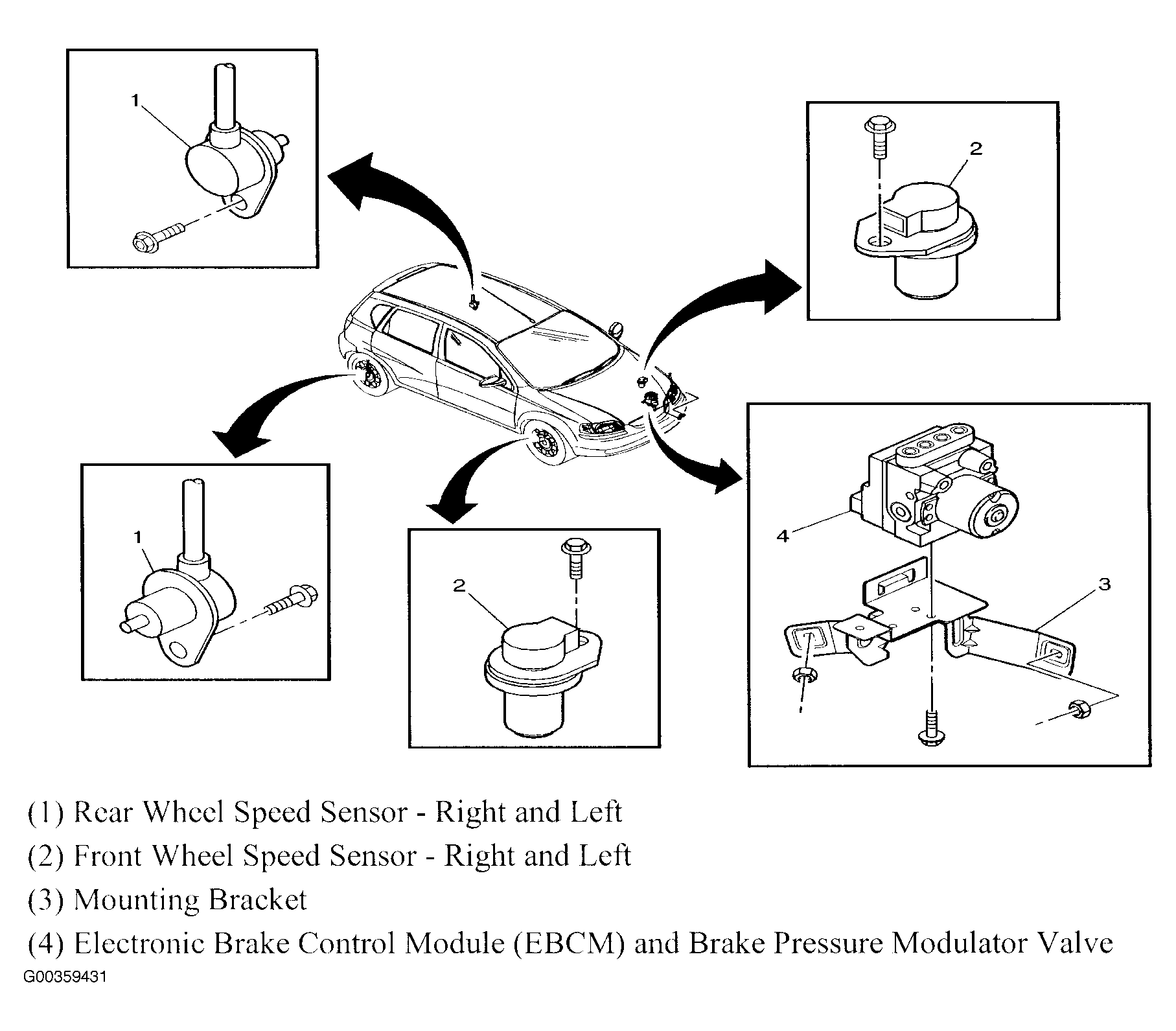

| Electronic Brake Control Module (EBCM) & Brake Pressure Modulator Valve | Left engine compartment. See Figure. |
| Engine Control Module (ECM) | Left front fender, near the battery. See Figure. |
| Ignition Coil (IC) Module | Top of valve cover. See Figure. |
| Ignition Lock Module | In passenger compartment fuse block. See Figure. |

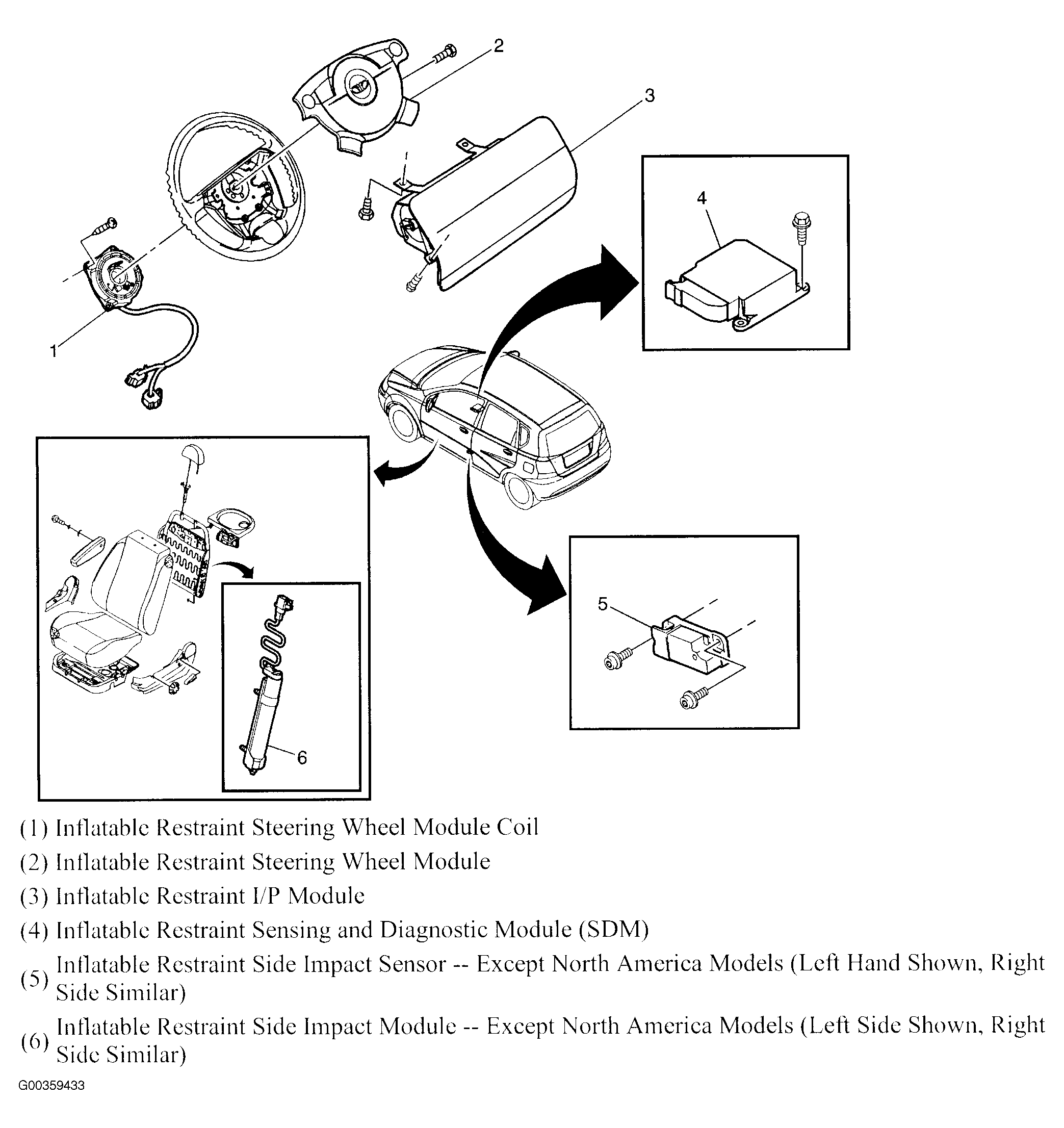

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below center console. See Figure. |
| Lamp Control Module | Behind driver side knee bolster. |
| Multifunction Alarm Module | Under dash, right of steering column. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Under floor console. See Figure. |

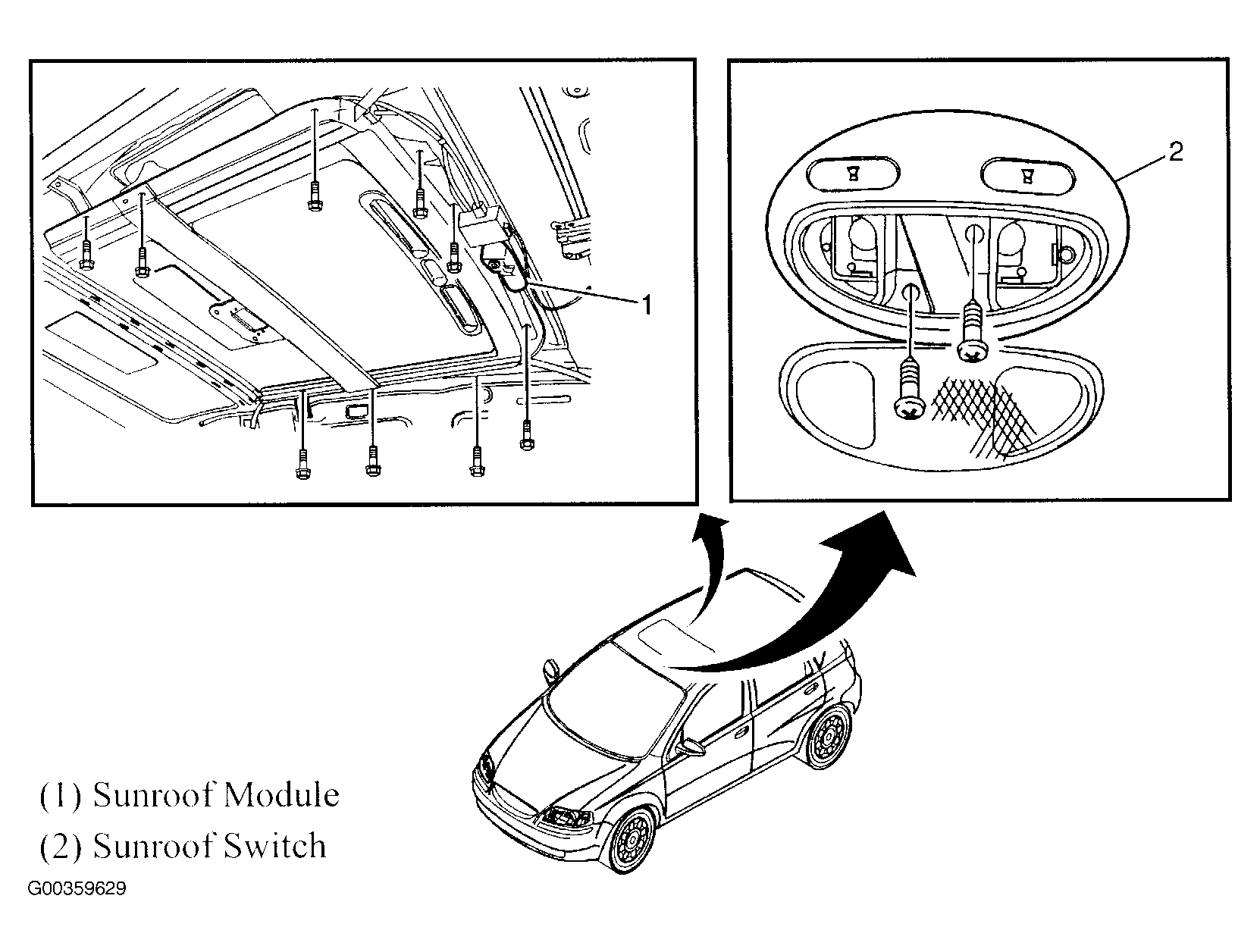

| Sunroof Module | In roof panel. See Figure. |
| TCM | On driver's side of vehicle, above brake pedal assembly. See Figure. |
| Theft Deterrent Control Module | Near the ignition switch. See Figure. |
| Transmission Control Module (TCM) Harness Connector | On transmission control module. See Figure. |
