Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

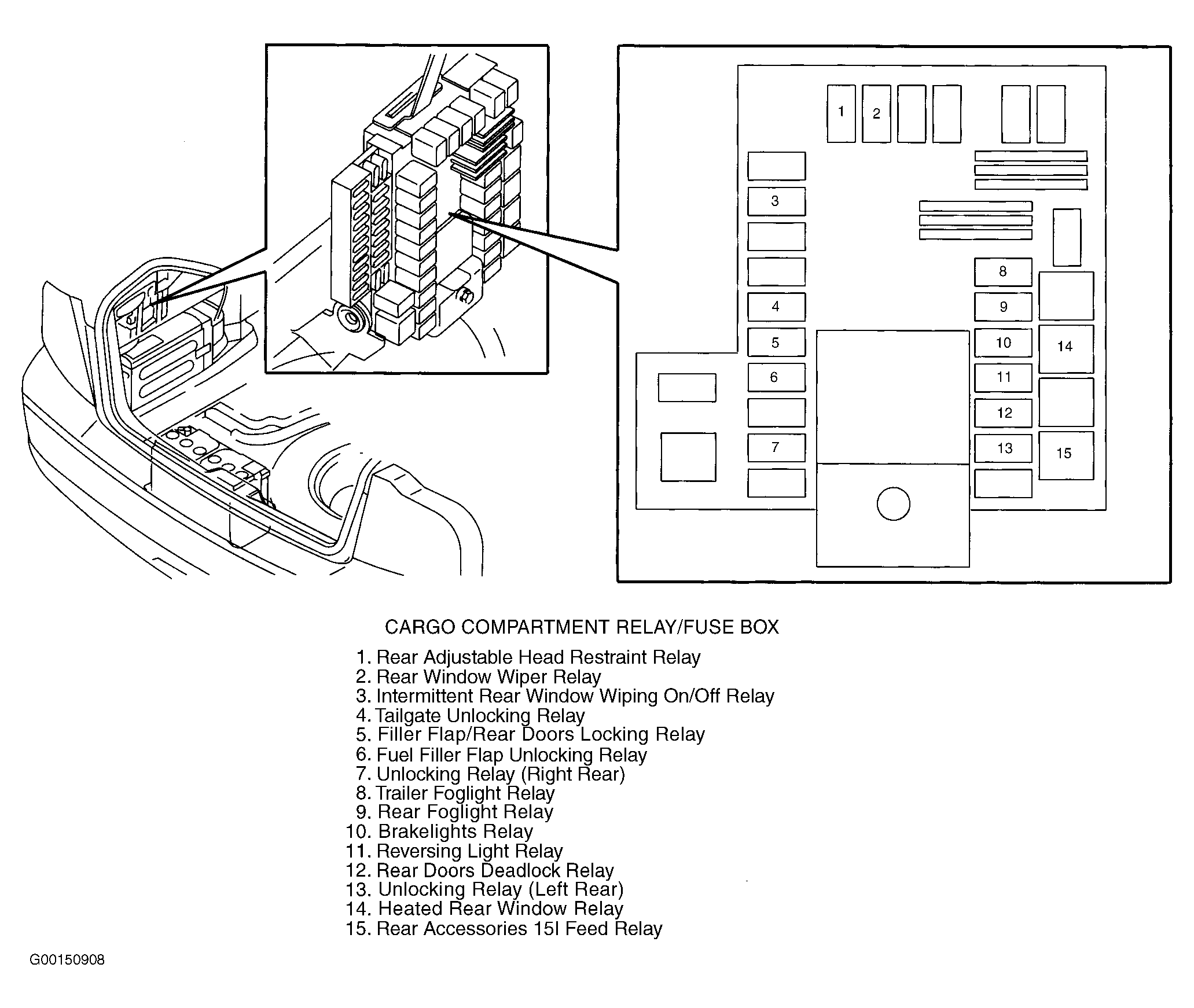

| Cargo Compartment Relay/Fuse Box | At left side of trunk. See Figure . |
| Central Electrical Unit | On left rear of engine compartment. See Figure . |

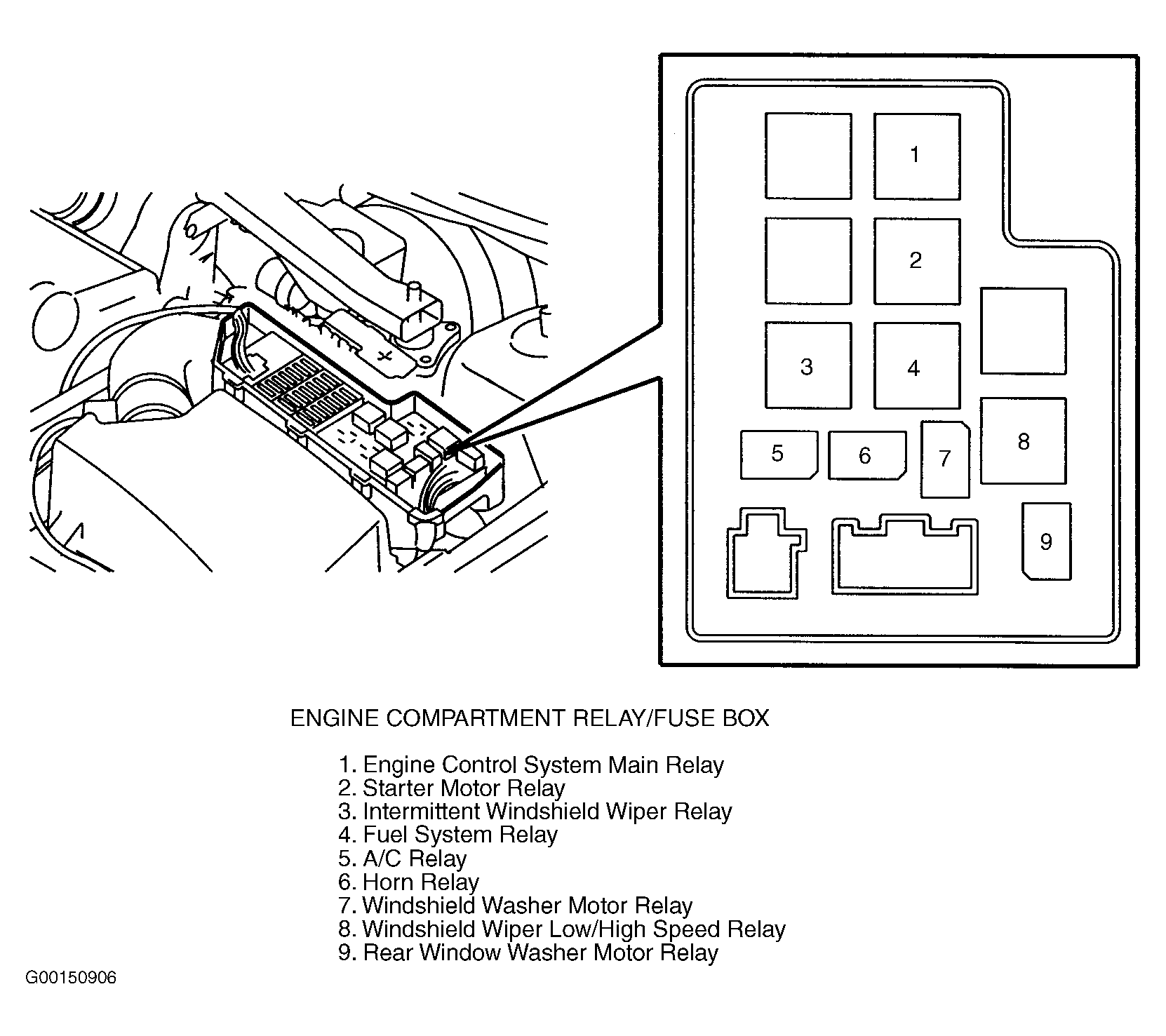

| Engine Compartment Relay/Fuse Box (C70) | On left rear of engine compartment, beside strut tower. See Figure . |
| Engine Compartment Relay/Fuse Box (V70) | At left side of engine compartment, forward of strut tower. See Figure . |
| Main Fuses | Next to battery, in trunk. |
| Passenger Compartment Fuse Box | At left end of dash. |

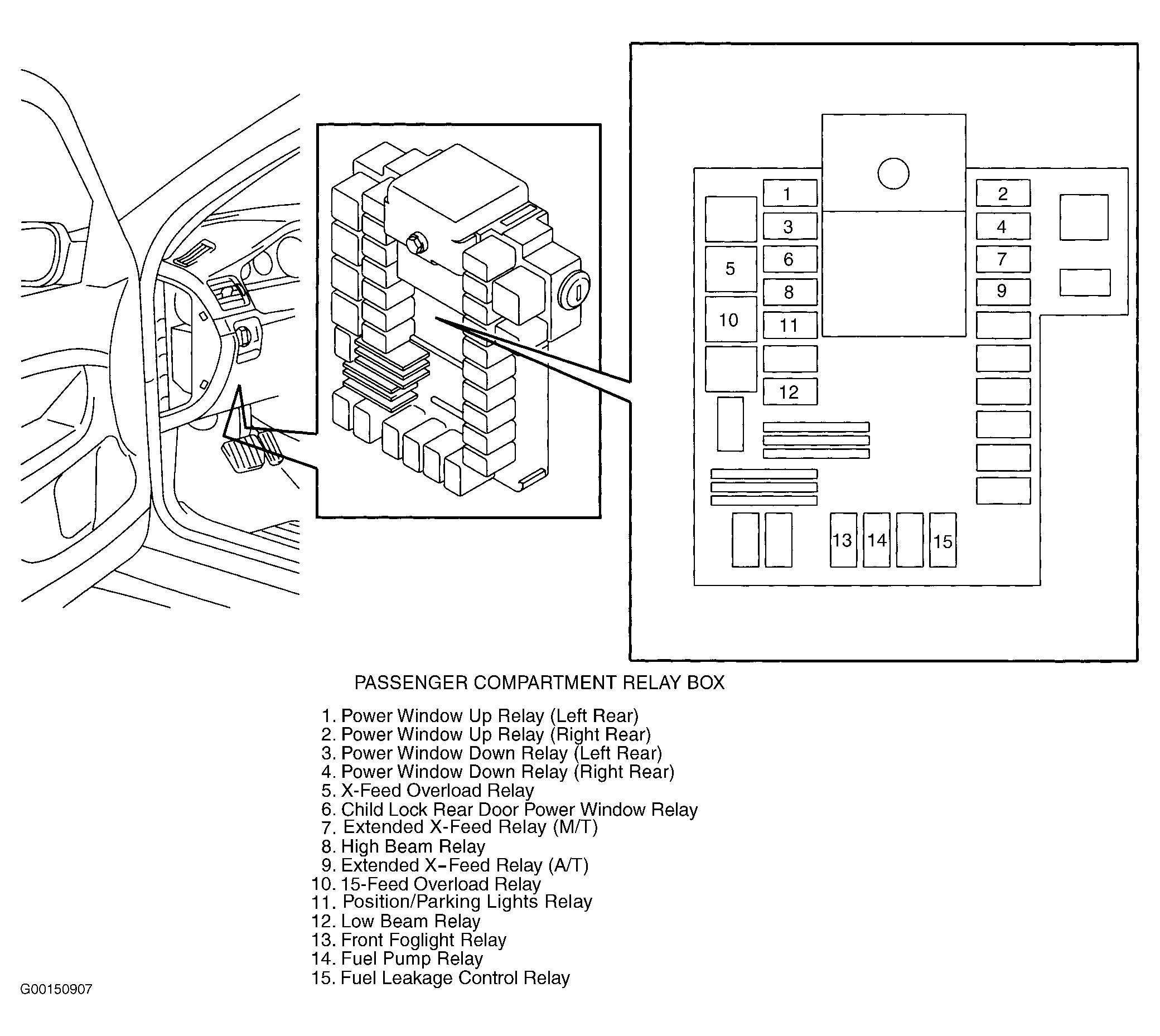

| Passenger Compartment Relay Box | Behind left side of dash. See Figure . |
