Charging System: Generator: Removal: 3.8L

Disconnect negative battery cable.
Remove the air box assembly. Refer to REMOVAL .
Generator location. See Fig 1.

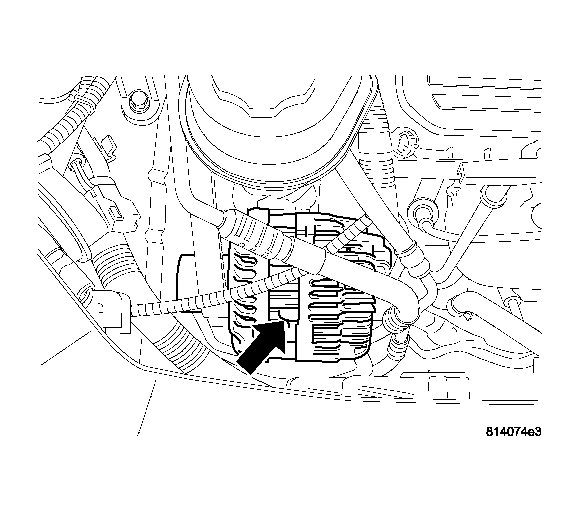

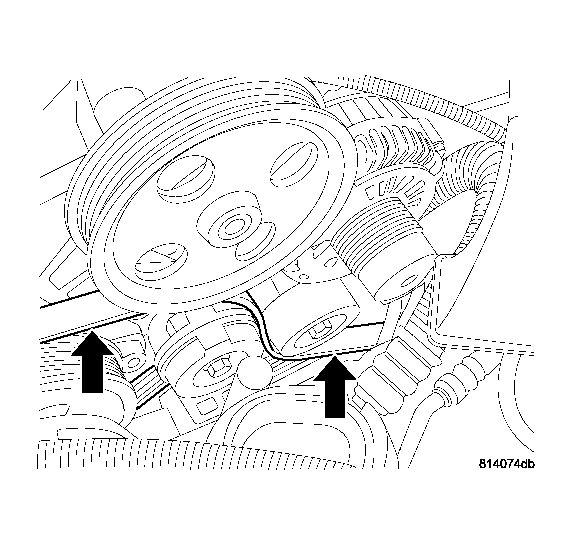

Fig 1: Generator Location
Courtesy of DAIMLERCHRYSLER CORP.
Unlock the field electrical connector. See Fig 2.

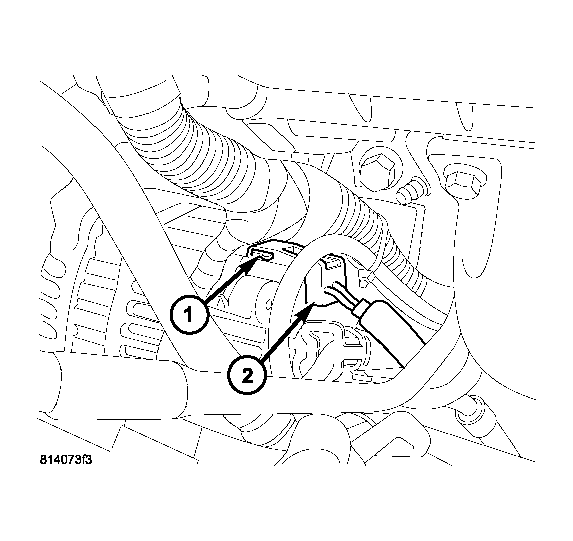

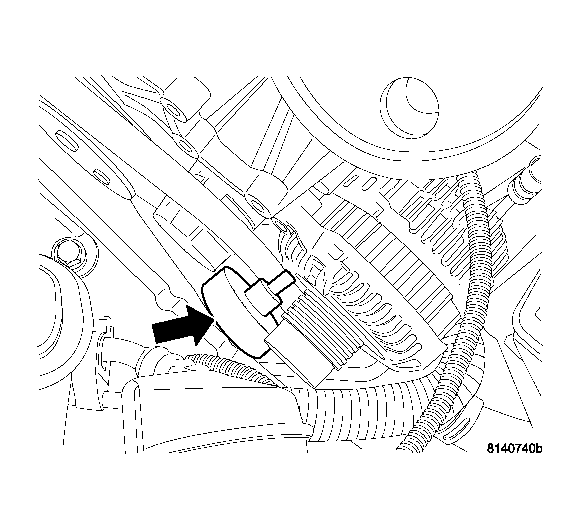

Fig 2: Generator Field Connector
Courtesy of DAIMLERCHRYSLER CORP.

1 - Connector Lock

2 - Field Connector
Disconnect the field electrical connector from rear of generator. See Fig 3.

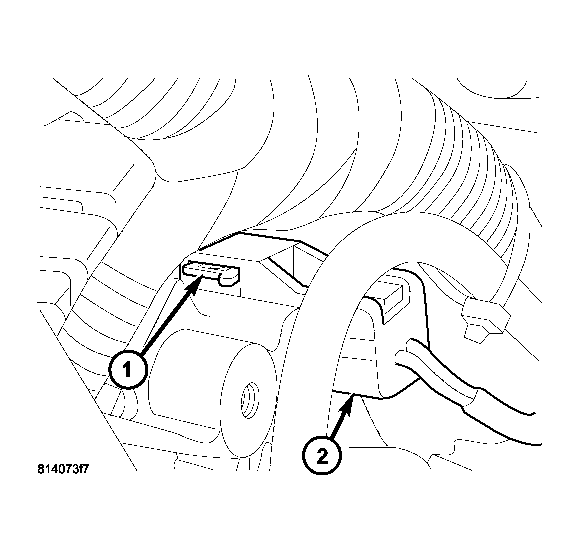

Fig 3: Electrical Connector Lock
Courtesy of DAIMLERCHRYSLER CORP.

1 - Connector Lock

2 - Field Connector
Remove cover from battery cable on rear of generator. See Fig 4.

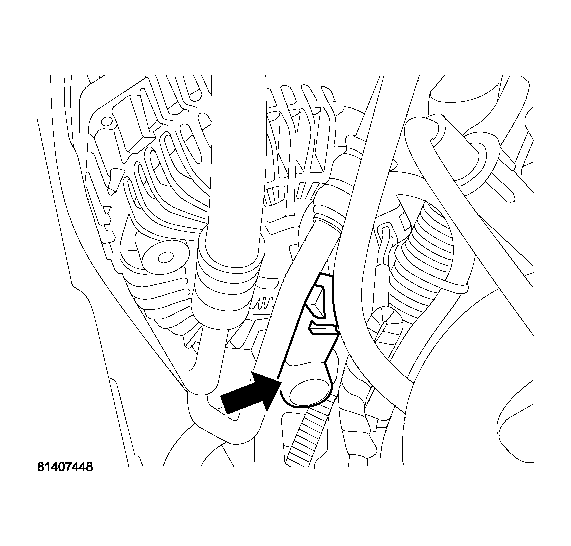

Fig 4: Generator Battery Connection Cover
Courtesy of DAIMLERCHRYSLER CORP.
Remove the positive battery cable from rear of generator.
Remove the accessory drive belt. See Fig 5. Refer to (COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .

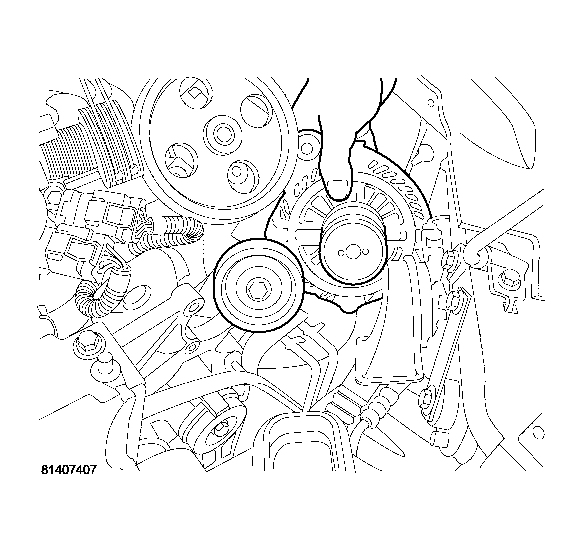

Fig 5: Drive Belt Removal
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 3 mounting bolts for the power steering assembly. See Fig 6.

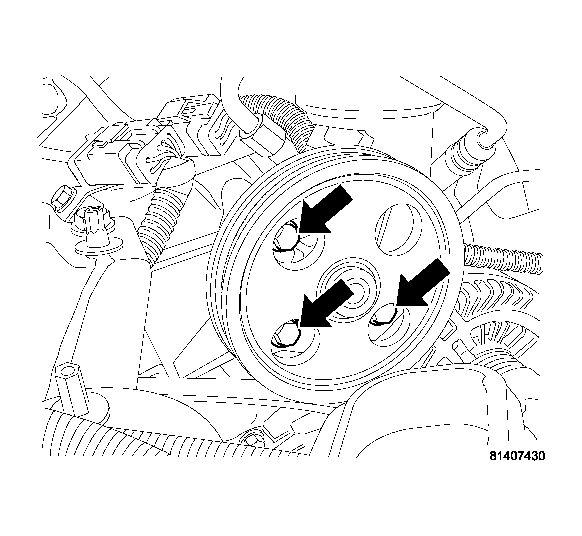

Fig 6: Power Steering Pump Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Relocate the power steering assembly. See Fig 7.

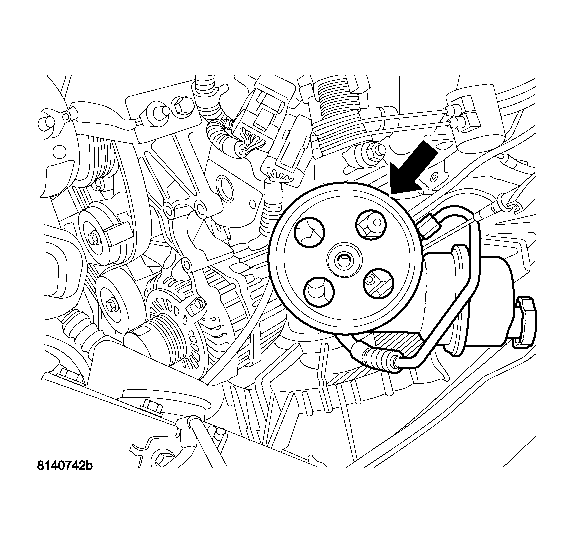

Fig 7: Power Steering Pump Relocation
Courtesy of DAIMLERCHRYSLER CORP.
Remove the idler pulley/lower mounting bolt for generator. See Fig 8. This will be removed with generator assembly.

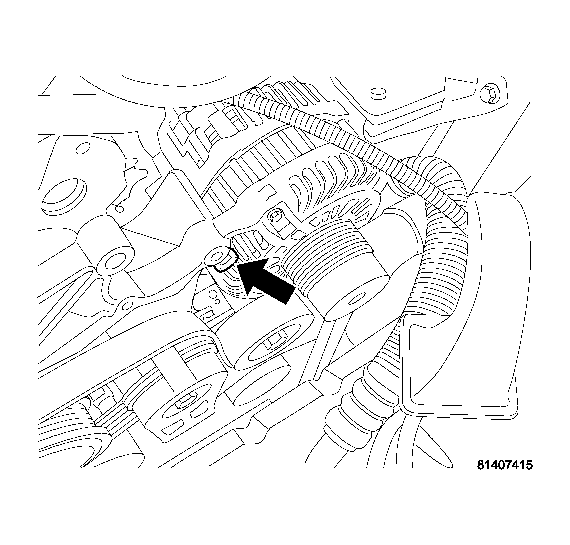

Fig 8: Idler Pulley
Courtesy of DAIMLERCHRYSLER CORP.
Remove the rear mounting bolt. See Fig 9.

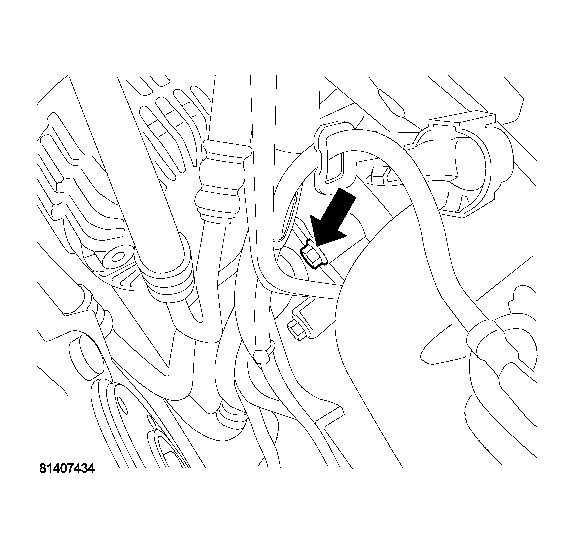

Fig 9: Generator Rear Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper mounting bolt. See Fig 10.

Fig 10: Upper Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove generator and idler pulley. See Fig 11.

Fig 11: Generator Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.
