Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNG
Engine 157.9, 276.9, 278.9 in model 166
as of model year 2016
Engine 157.9, 278.9 in model 292

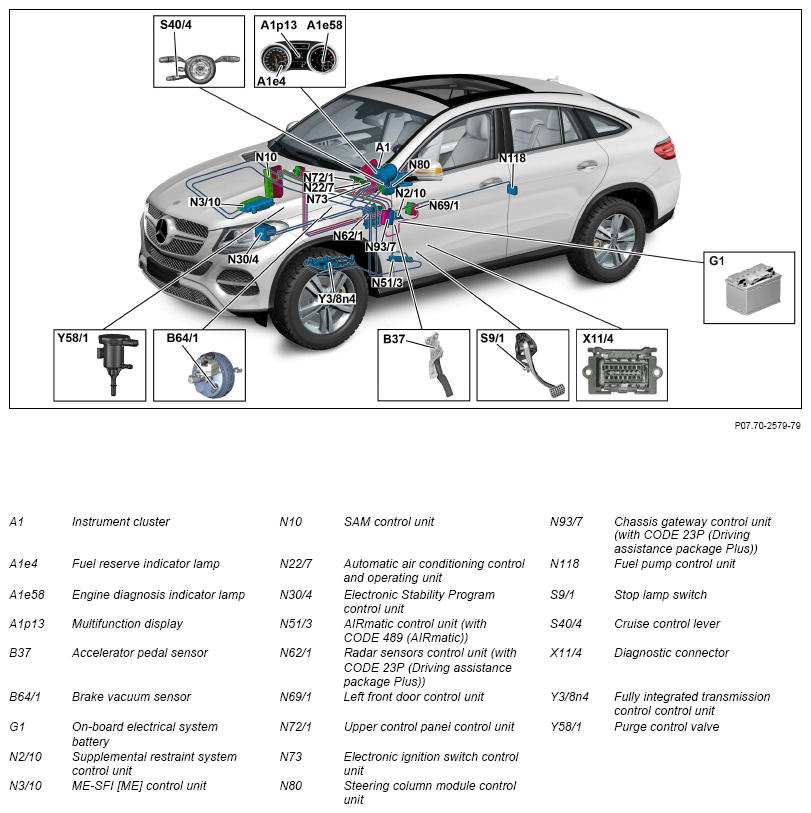

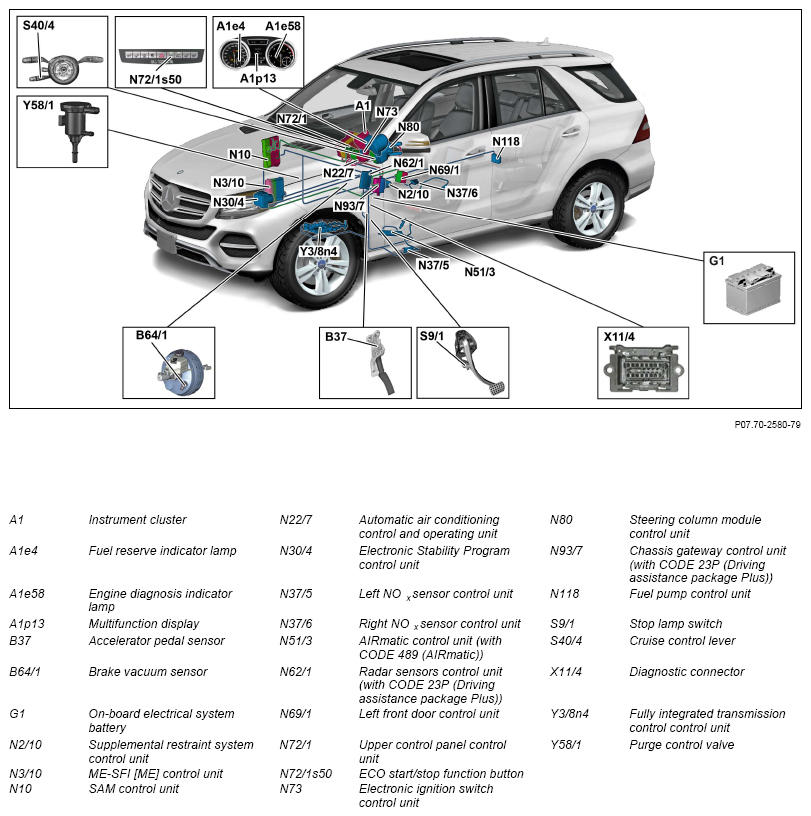

Shown: model 166 from model year 2016
Shown: Model 292

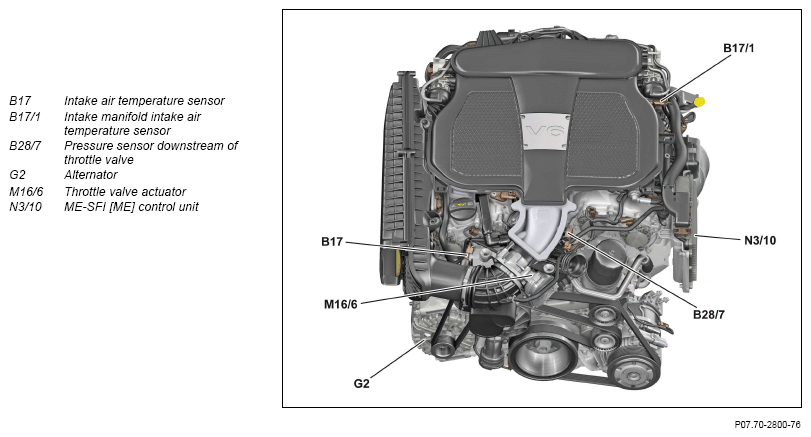

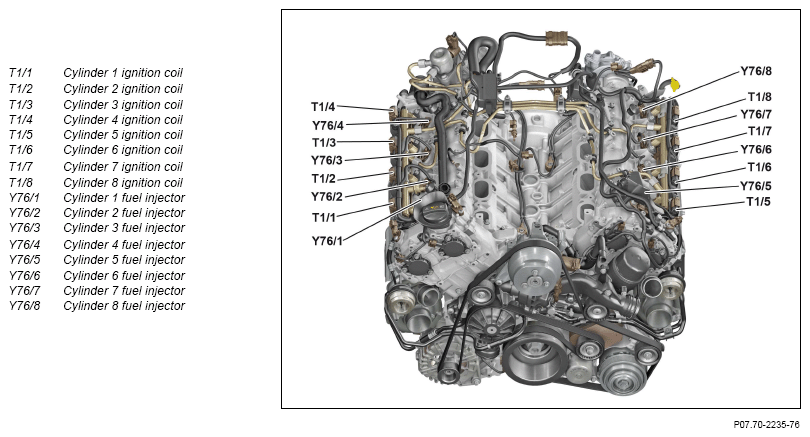

Shown: Engine 276.9 from the top front (except code 920 (Gasoline direct injection with stratified charge))
Shown: Engine 276.9 from the top front (with code 920 (Gasoline direct injection with stratified charge))

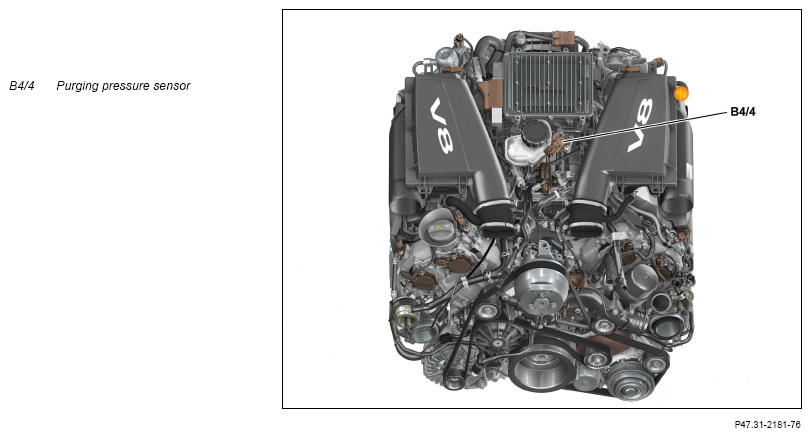

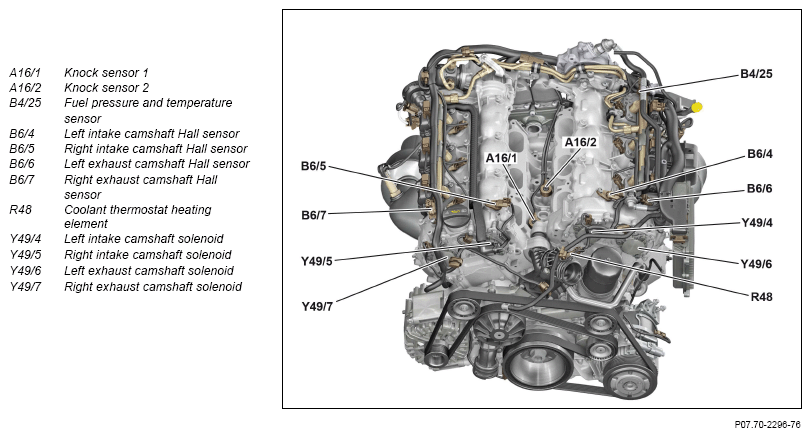

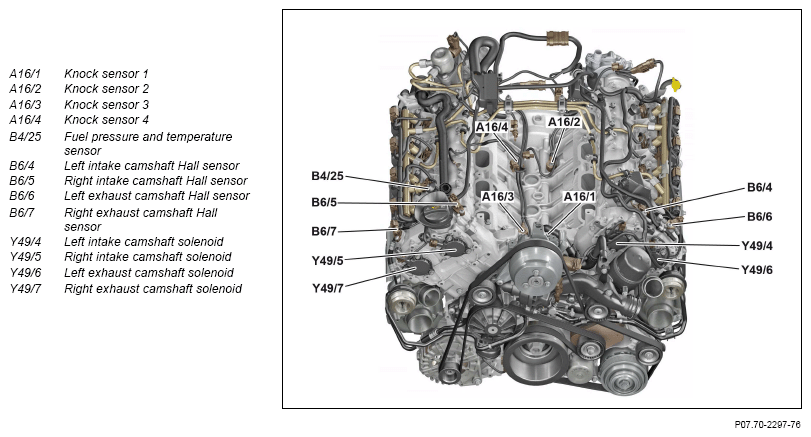

Shown: Engine 276.9 from the top front
Shown: Engine 276.9 from the top front

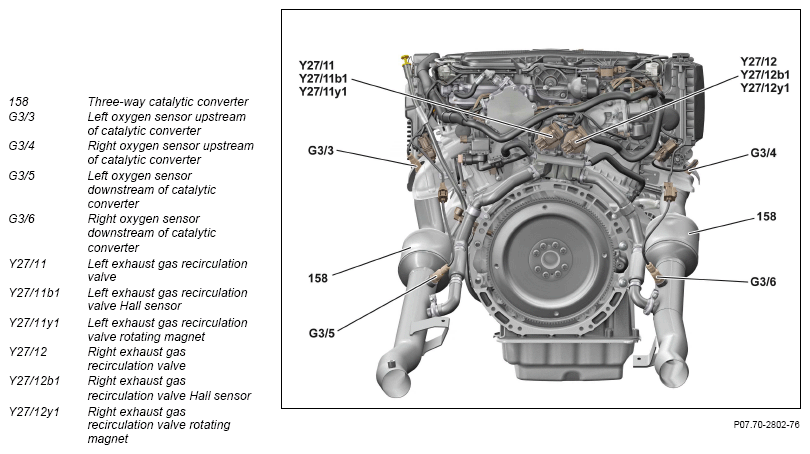

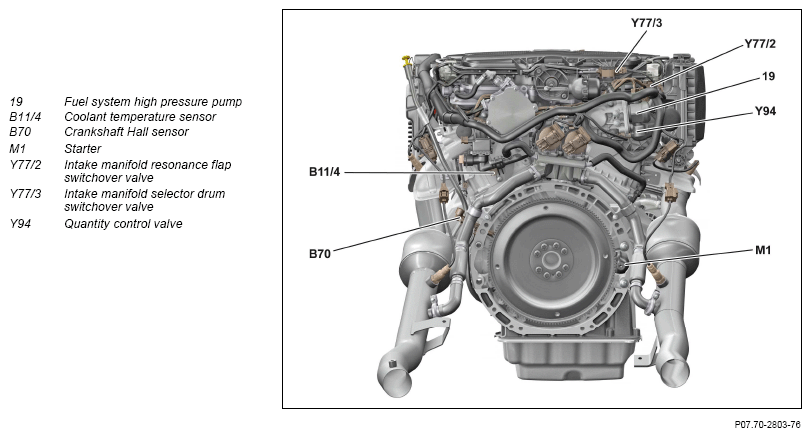

Shown: Engine 276.9 from rear (with code 920 (Gasoline direct injection with stratified charge))
Shown: Engine 276.9 from rear (with code 920 (Gasoline direct injection with stratified charge))

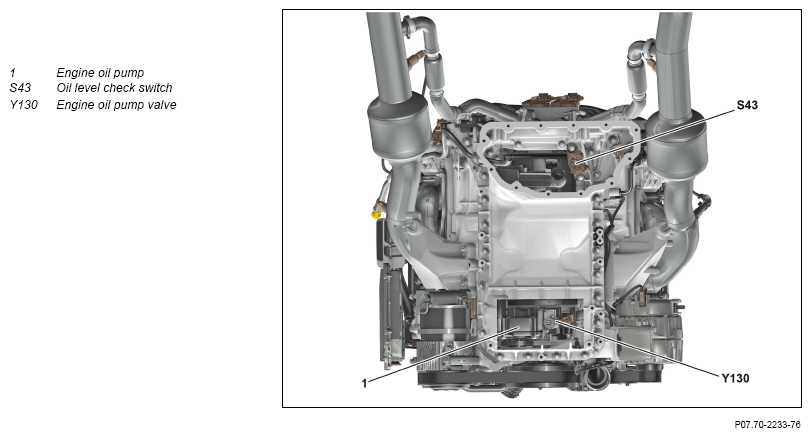

Shown: Engine 276.9 from bottom

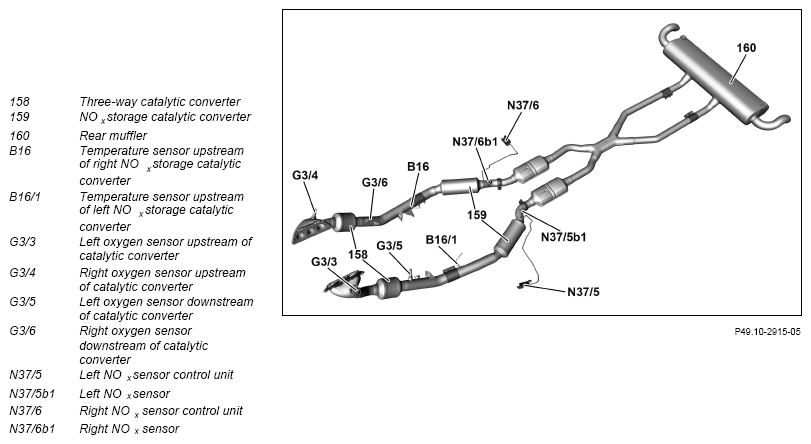

Shown: exhaust system for Engine 276.9 (with code 920 (Gasoline direct injection with stratified charge))

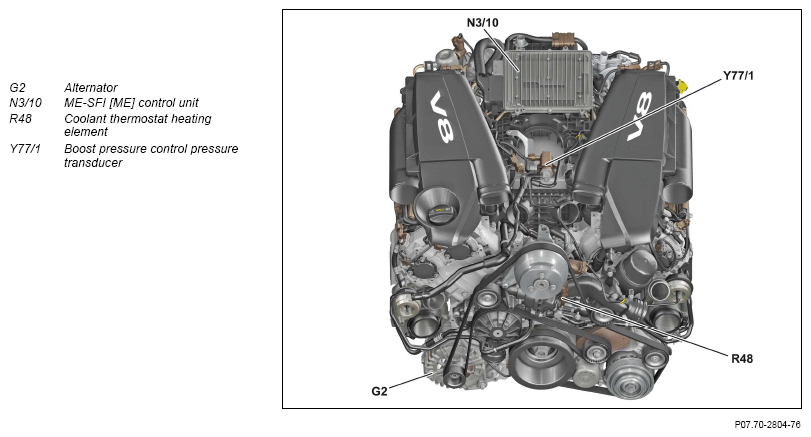

Shown: Engine 278.9 from the top front (except code 494 (USA version))
Shown: Engine 278.9 from the top front (with code 494 (USA version))

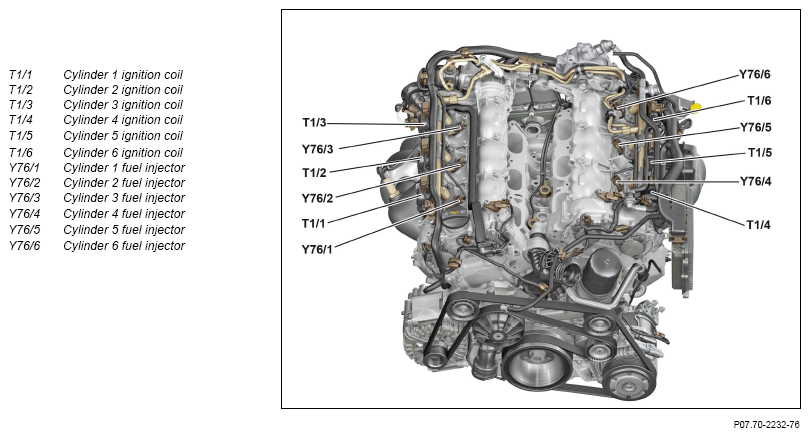

Shown: Engine 278.9 from the top front
Shown: Engine 278.9 from the top front

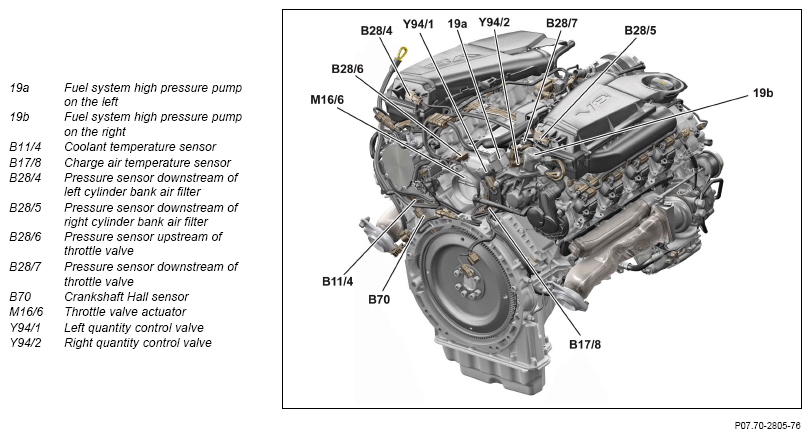

Shown: Engine 278.9 from right rear (except code 494 (USA version))

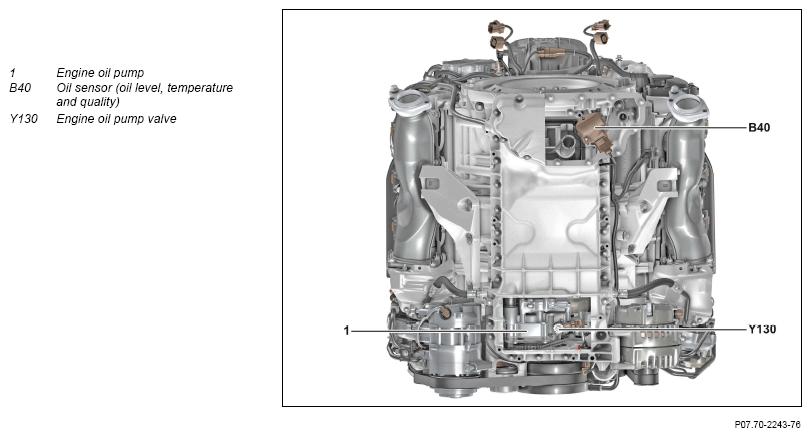

Shown: Engine 278.9 from bottom

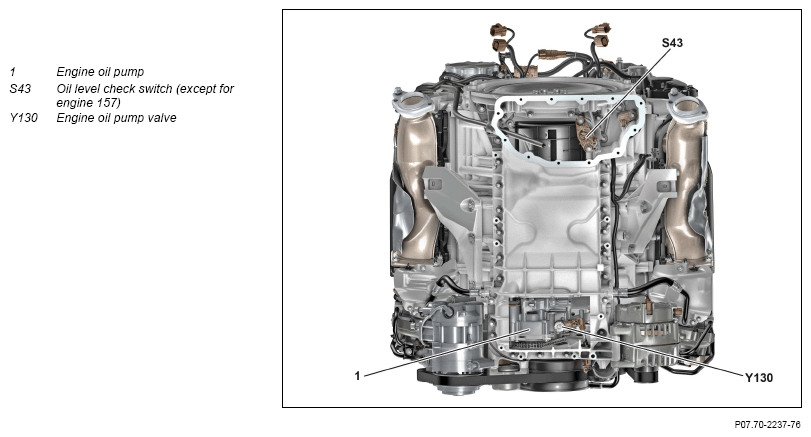

Shown: Engine 157.9 from bottom

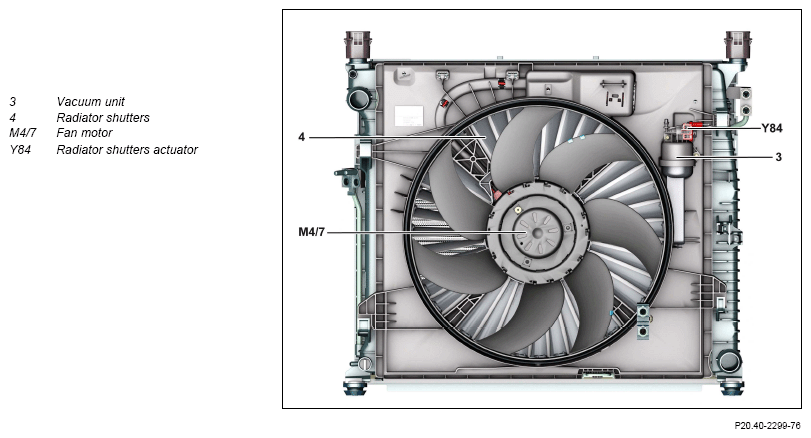

Shown: blower housing with radiator shutters (Engine 276.9 in model 166 from model year 2016)

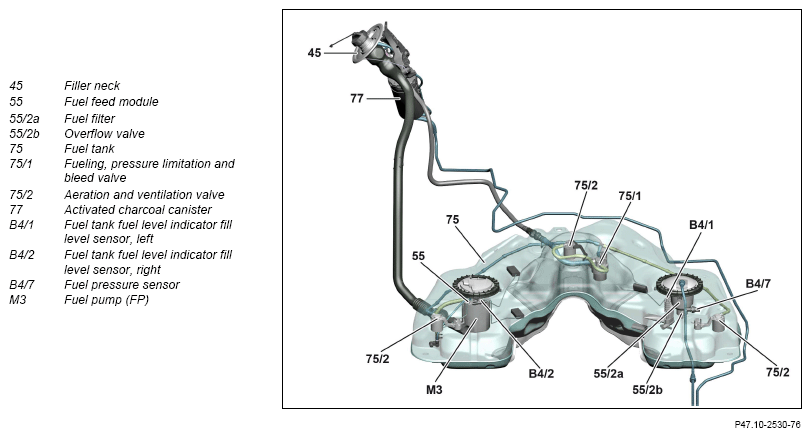

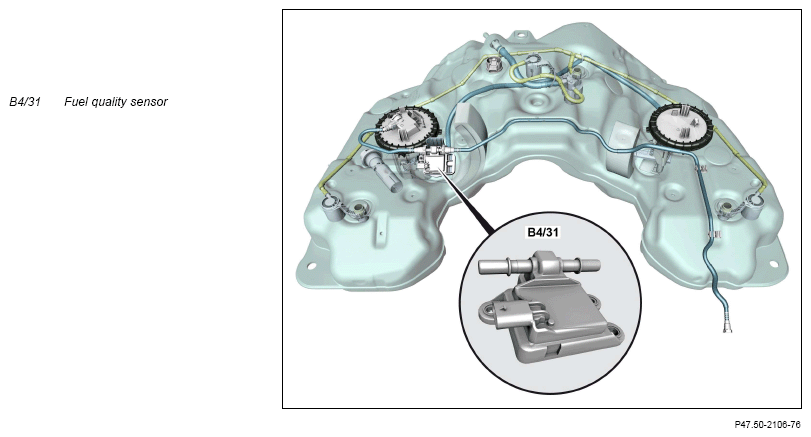

Phantom view of the fuel tank (except code 494 (USA version))
Phantom view of fuel tank (with Engine 276.9 and code 494 (USA version))

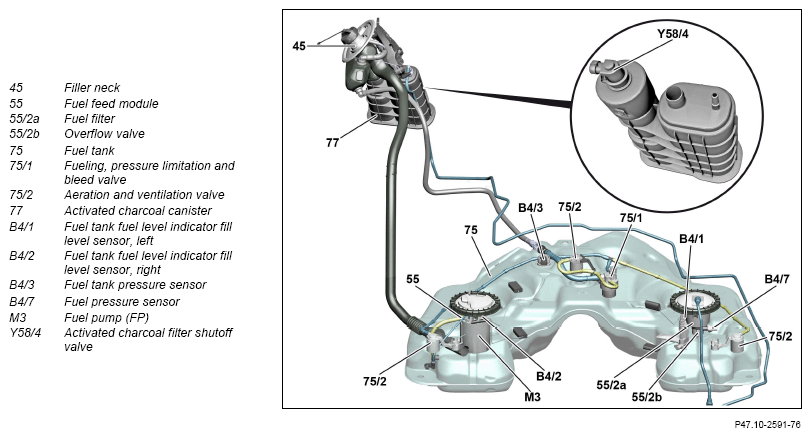

Phantom view of fuel tank (with code 494 (USA version) or code 929 (Engine for ethanol fuel))

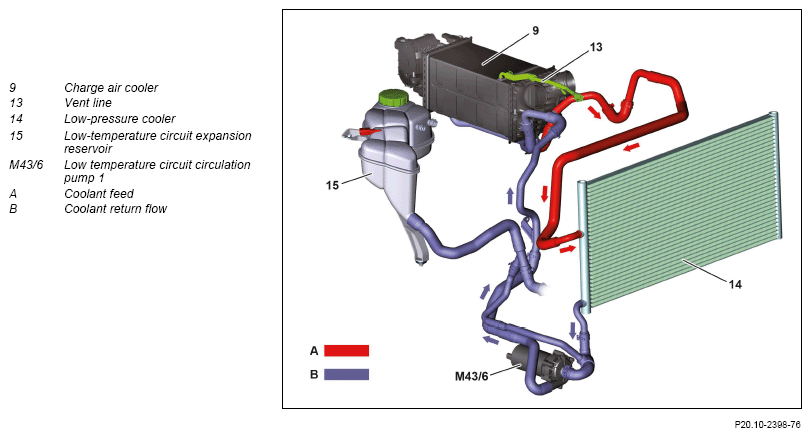

Shown: low-temperature circuit, engines 157.9, 278.9

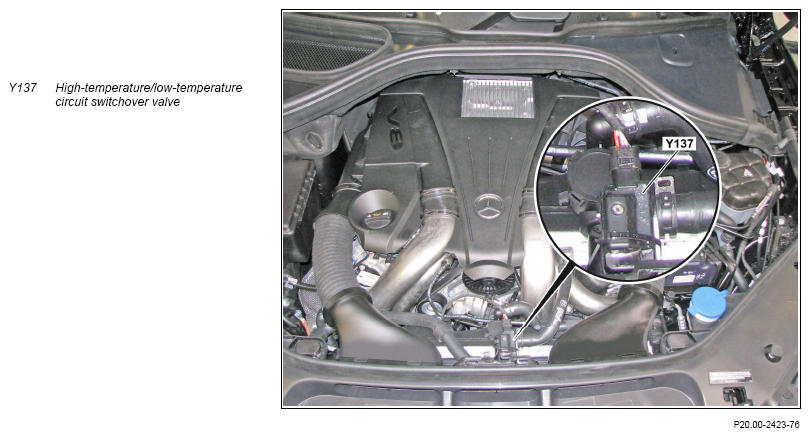

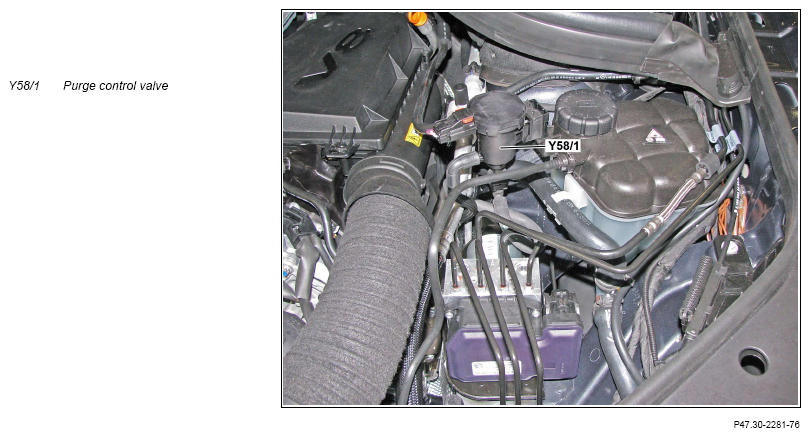

Shown: Engine compartment, model 166 with Engine 278.9
Shown: Engine compartment, model 166 with Engine 278.9

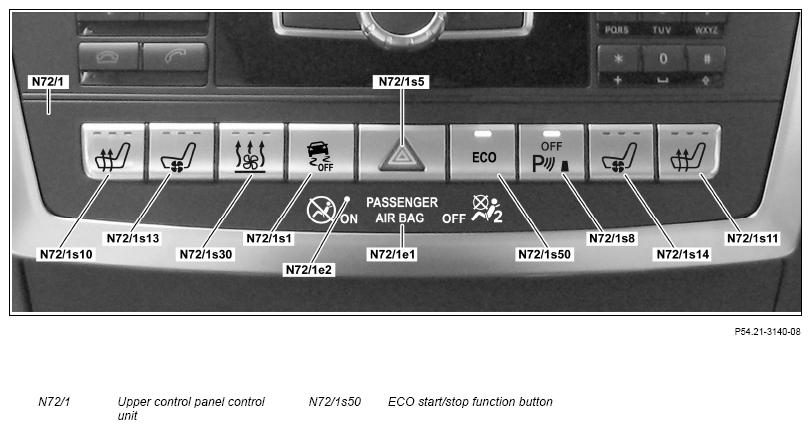

Shown: upper control panel, model 166

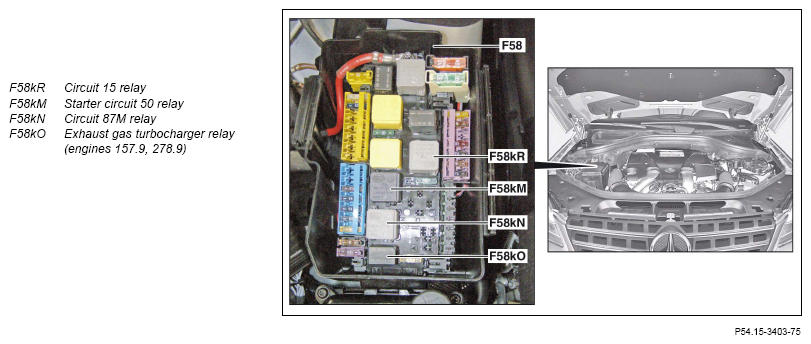

Shown: Engine compartment fuse and relay module, model 166
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for ME-SFI (ME) control unit | Engine 276.9 in model 166 as of model year 2016 N3/10 |
GF07.61-P-6000MNG | |
| Engine 157.9, 278.9 in model 166 as of model year 2016 Engine 157.9, 278.9 in model 292 N3/10 |
GF07.61-P-6000MMY | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002GN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GN | |
| Component description for NOx sensor control unit | Engine 276.9 in model 166 as of model year 2016 with code 920 (Direct gasoline injection with stratified charging) N37/5, N37/6 |
GF14.40-P-3024MNG | |
| AIRMATIC control unit, component description | Model 166 with Engine 157.9, 276.9, 278.9 as of model year 2016 with code 489 (AIRMATIC) Model 292 with Engine 157.9, 278.9 with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110GN | |
| Component description for radar sensors control unit | Model 166 with Engine 157.9, 276.9, 278.9 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with Engine 157.9, 278.9 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for chassis gateway control unit | Model 166 with Engine 157.9, 276.9, 278.9 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with Engine 157.9, 278.9 with code 23P (Driving Assistance package) N93/7 |
GF54.21-P-1010GN | |
| Component description for fuel pump control unit | Engine 276.9, 278.9 in model 166 as of model year 2016 Engine 278.9 in model 292 N118 |
GF47.40-P-2001MNG | |
| Engine 157.9 in model 166 as of model year 2016 Engine 157.9 in model 292 N118 |
GF47.40-P-2001MMY | ||
| Component description for fully integrated transmission control unit | Transmission 722.905 in model 166 with Engine 157.9 as of model year 2016 Transmission 722.905 in model 292 with Engine 157.9 Y38n4 |
GF27.60-P-5165ANN | |
| Transmission 725.0 in model 166 with Engine 276.9 as of model year 2016 Transmission 725.0 in model 166 with Engine 278.9 as of model year 2016 Y38n4 |
GF27.60-P-5165ANF | ||
| Transmission 725.0 in model 292 with Engine 278.9 Y38n4 |
GF27.60-P-5165ANJ | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | Engine 276.9 in model 166 as of model year 2016 |
GF07.70-P-0998MNG | |
| Engine 157.9, 278.9 in model 166 as of model year 2016 Engine 157.9, 278.9 in model 292 |
GF07.70-P-0998MMY |
