Control Units

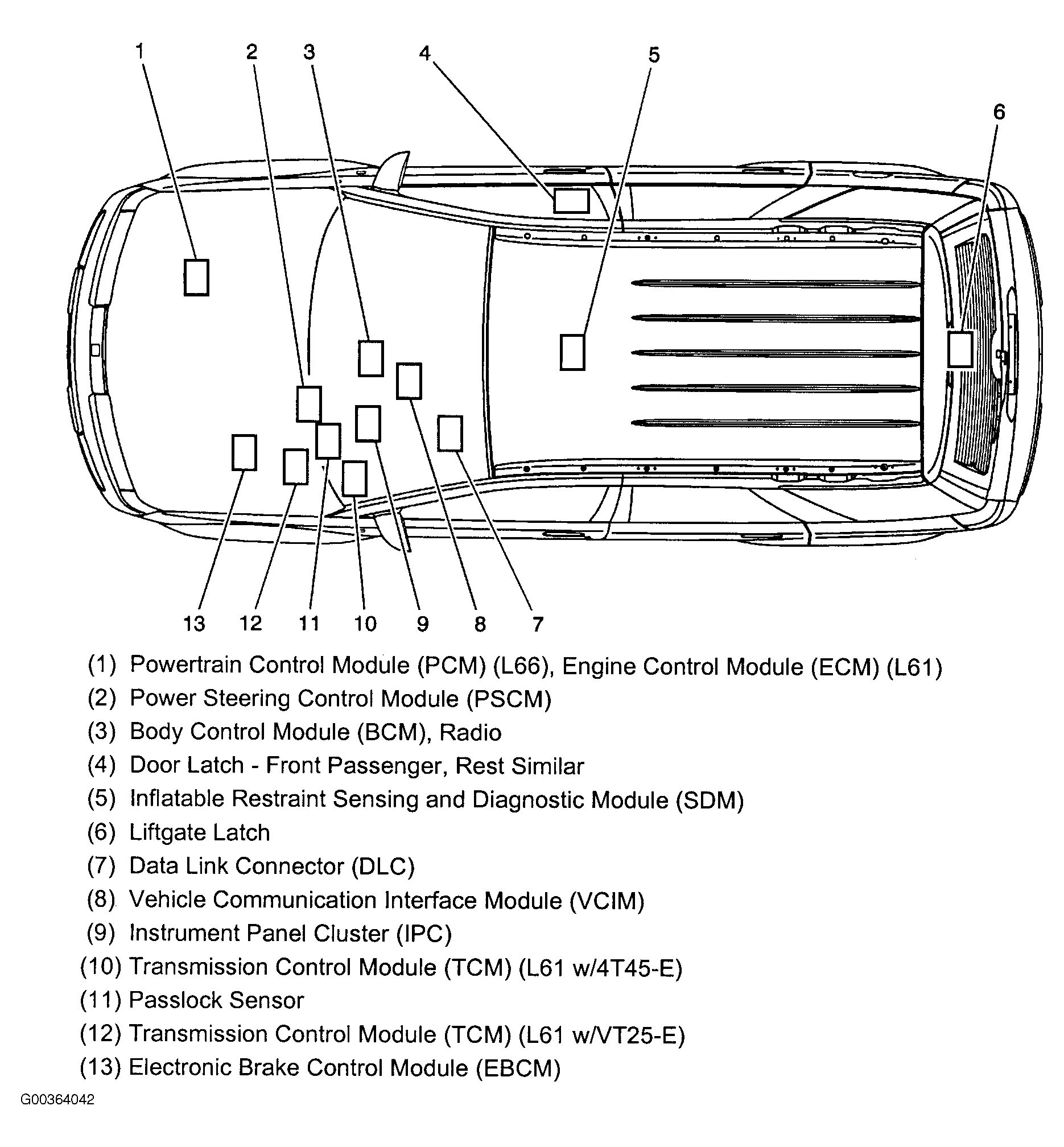

CONTROL UNITS LOCATION
| Component | Location |
|---|---|

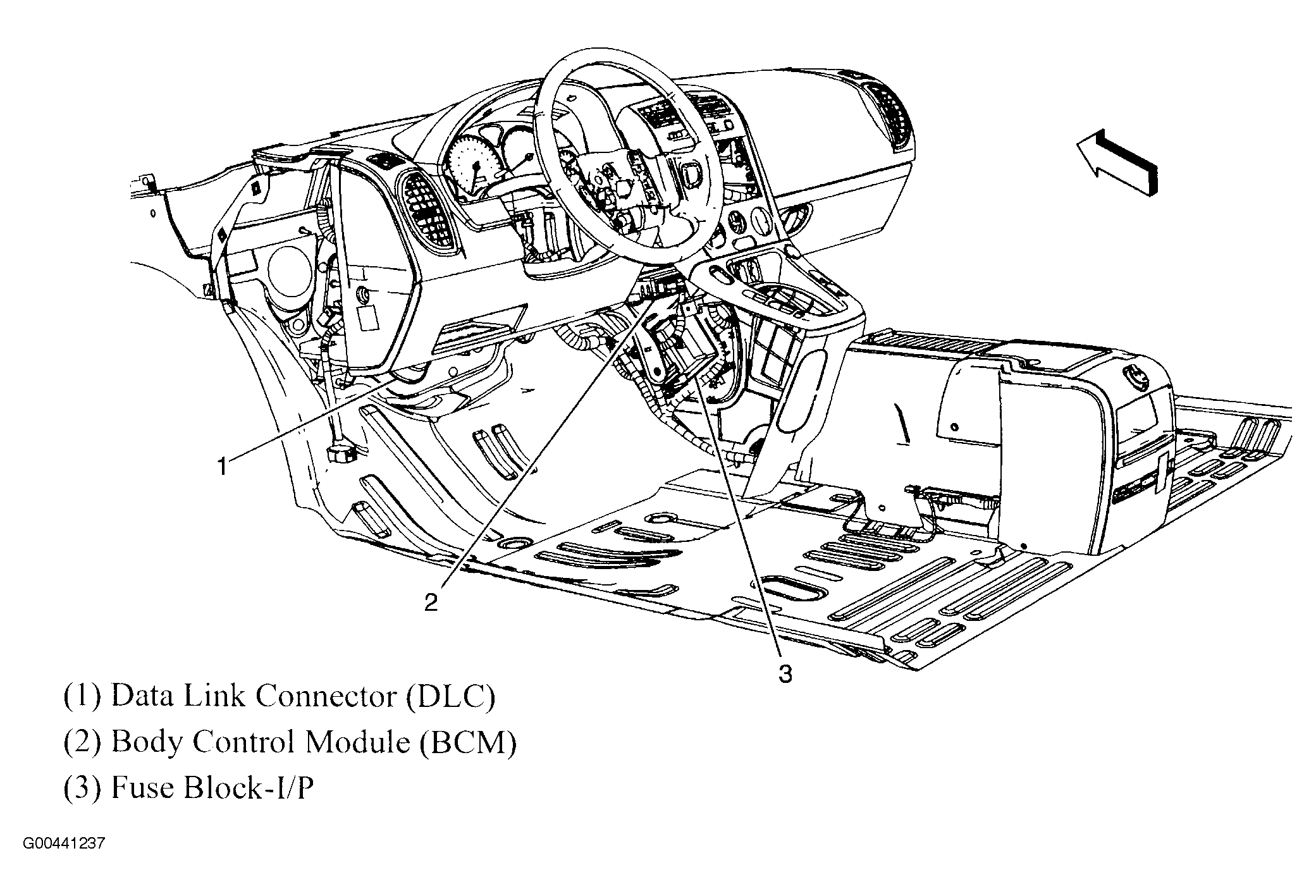

| Body Control Module (BCM) | Below front of center floor console. See Figure. |

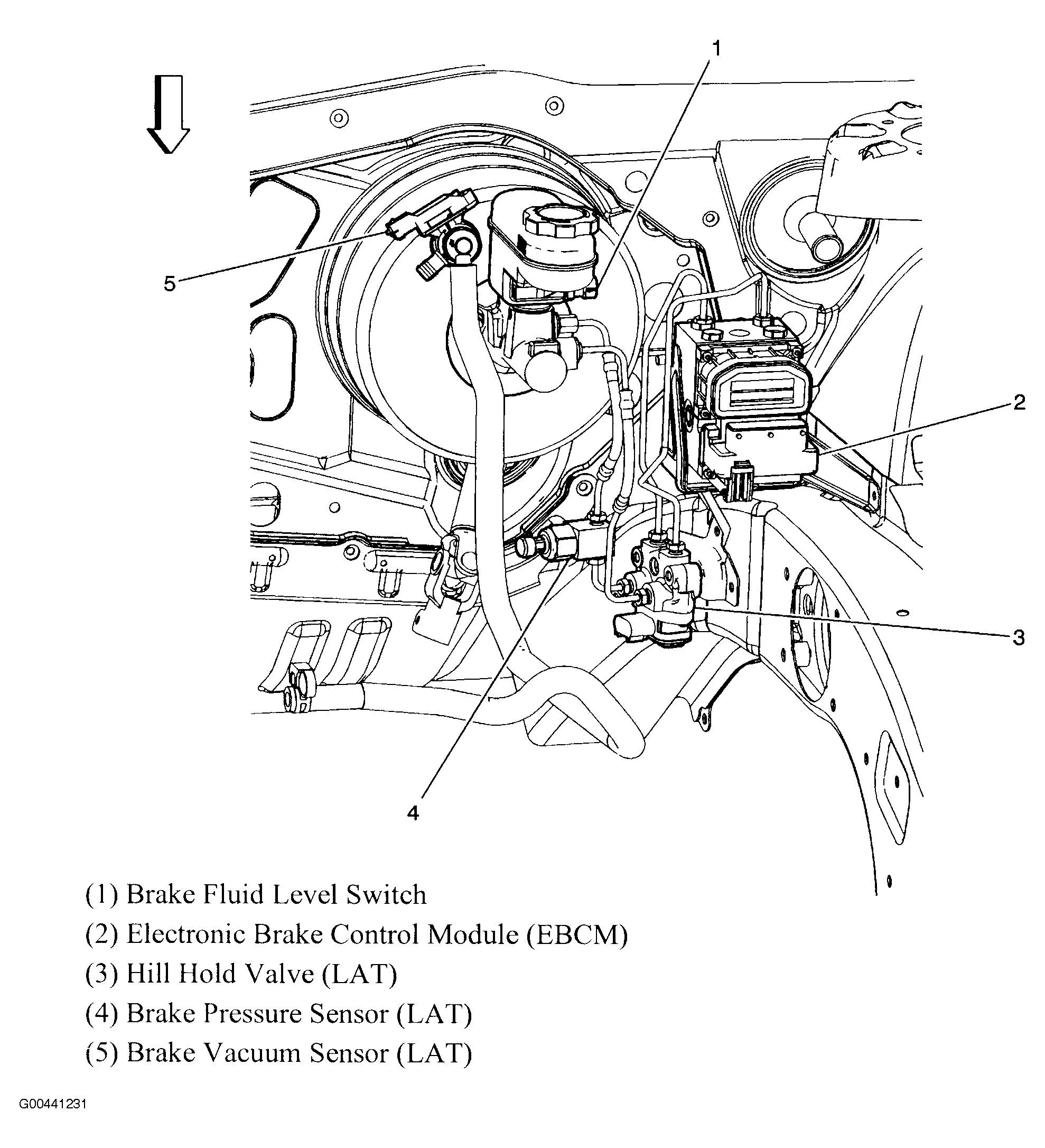

| Electronic Brake Control Module (EBCM) | Near left front shock tower. See Figure. |

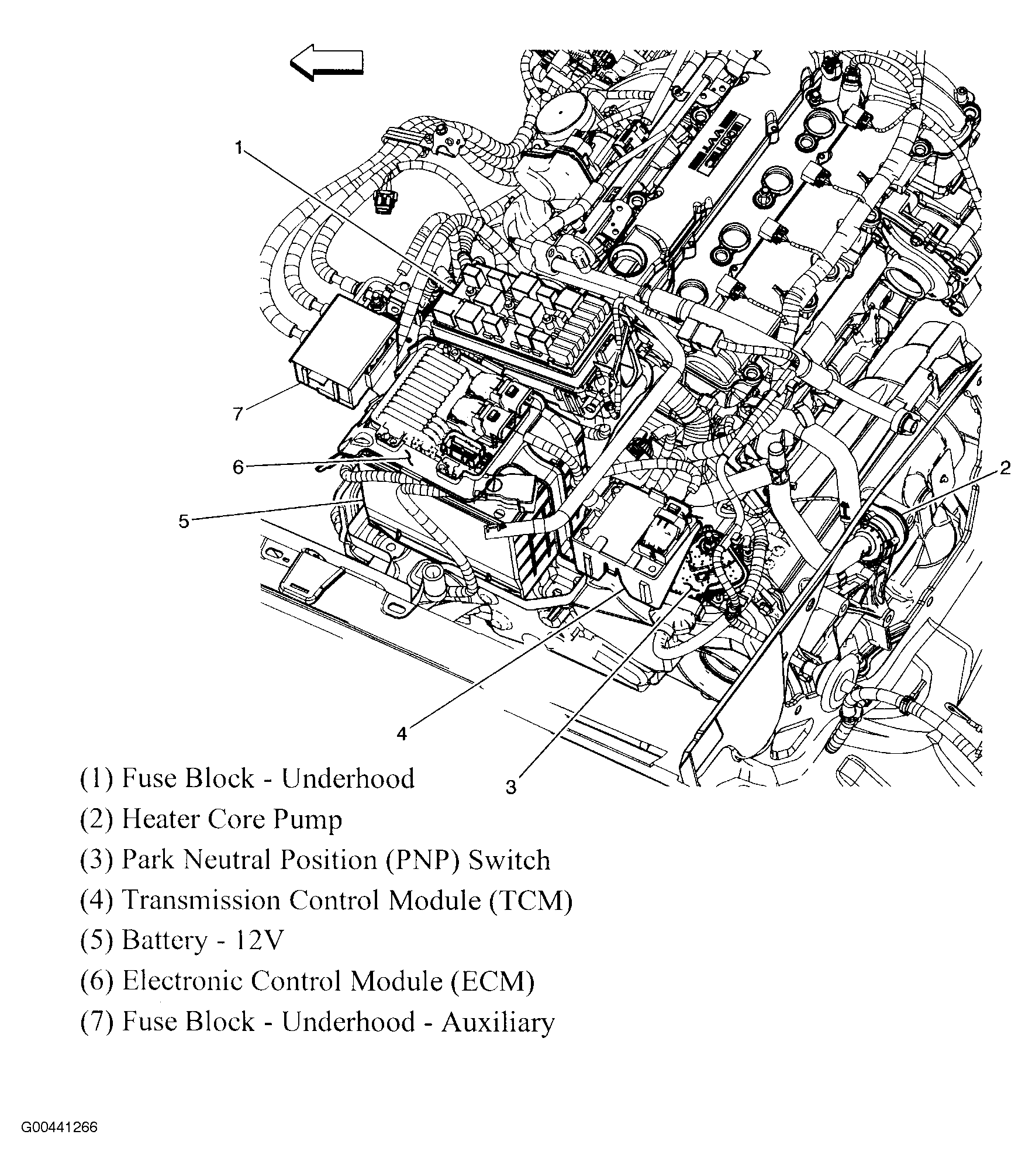

| Electronic Control Module (ECM) | Above battery. See Figure. |
| Engine Control Module (ECM) (2.2L) | Right side of engine compartment. See Figure. |
| Engine Control Module (ECM) (2.4L) | Left rear of engine compartment. See Figure. |

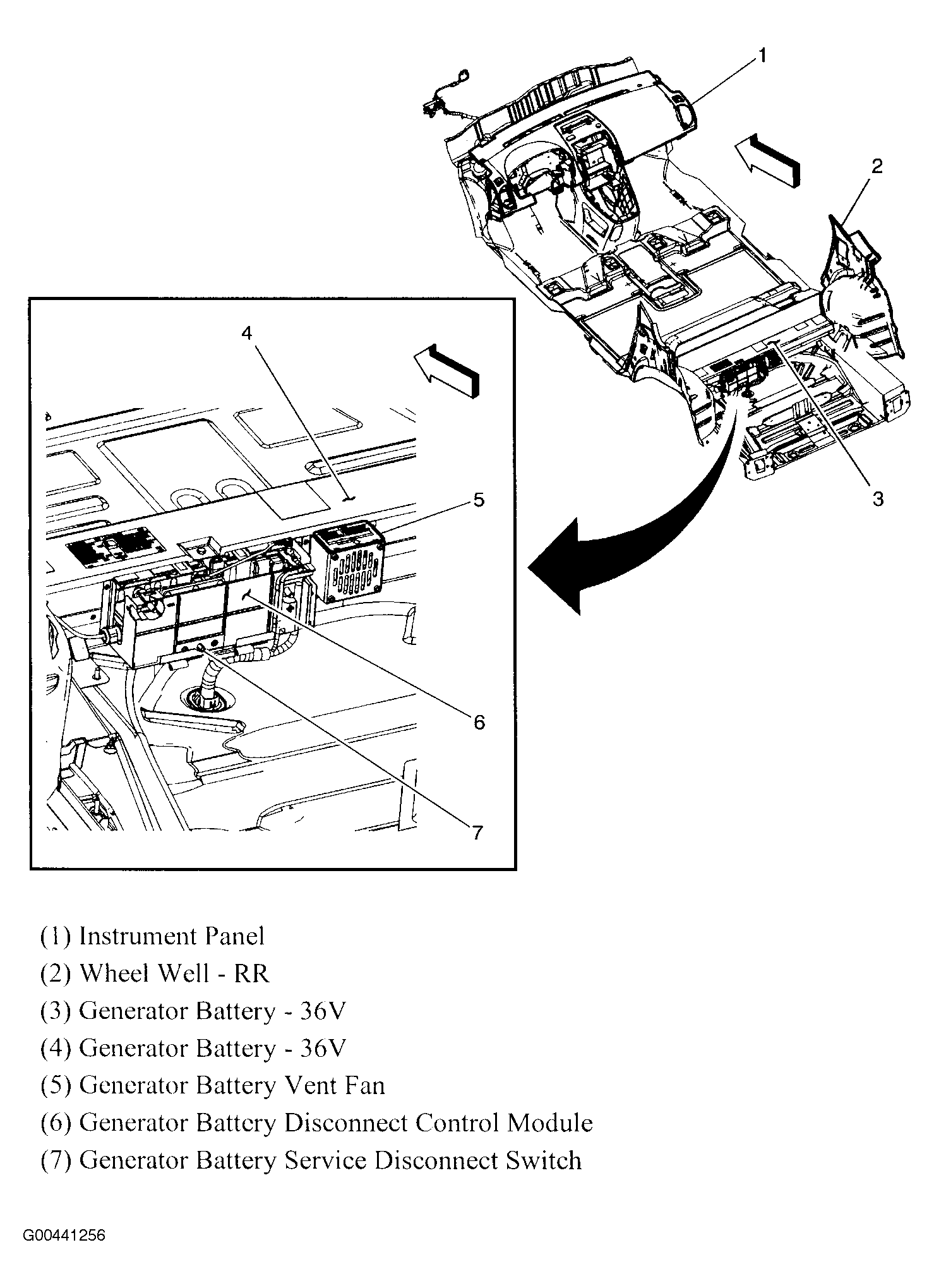

| Generator Battery Disconnect Control Module | Above spare tire. See Figure. |
| Heated Seat Module | Under right front seat. See Figure. |
| Hybrid Pump Driver | Left front of engine compartment. See Figure. |
| Ignition Control Modules (ICM) 1, 2 & 3 | At top of engine, above corresponding cylinder. See Figure. |
| Ignition Control Modules (ICM) 4, 5 & 6 | At top of engine, above corresponding cylinder. See Figure. |
| Inflatable Restraint I/P Module | Behind top right side of dash. See Figure. |

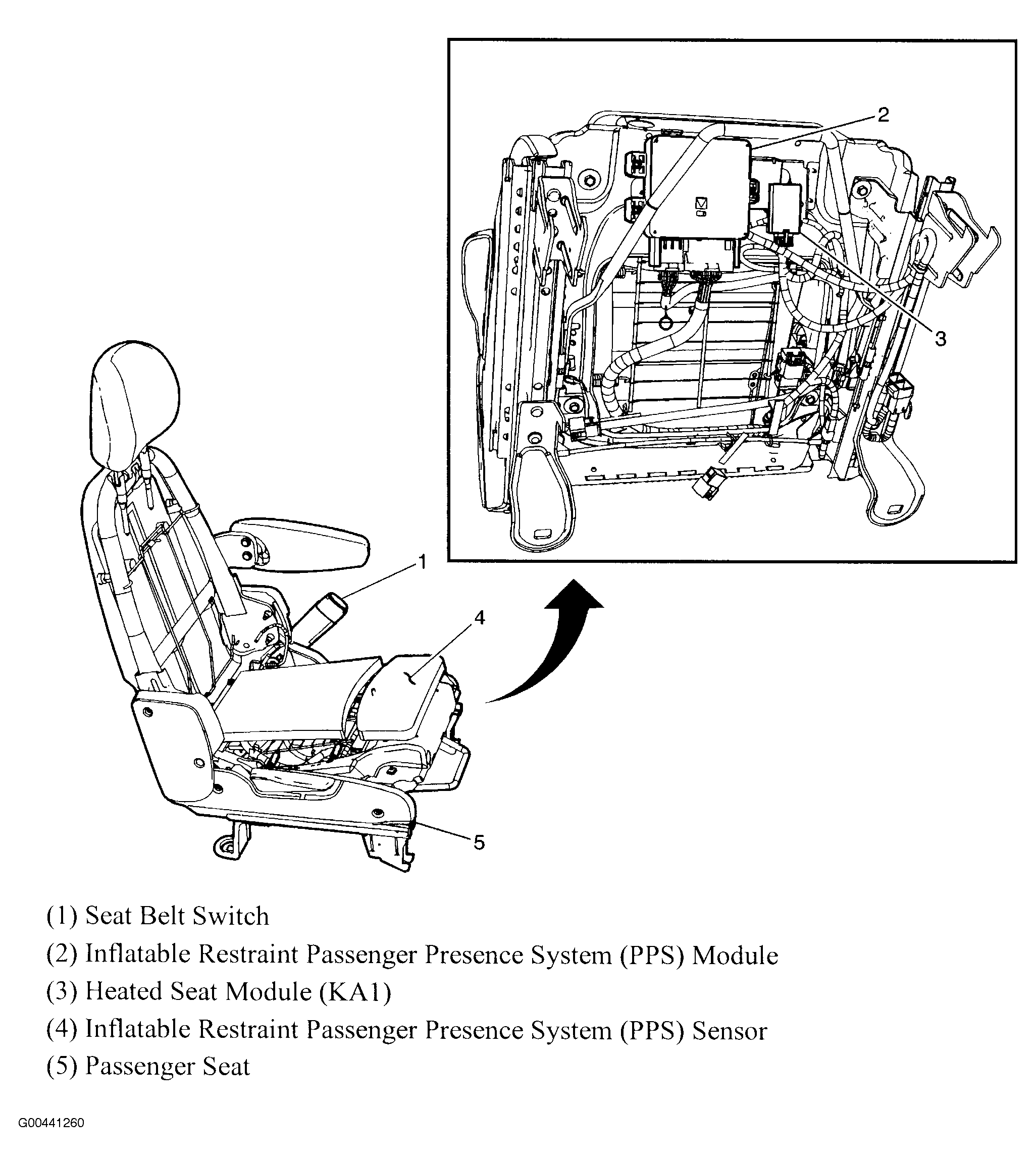

| Inflatable Restraint Passenger Presence System (PPS) Module | Under front passenger's seat. See Figure. |
| Inflatable Restraint Roof Rail Module - Left | Behind headliner, above driver. See Figure. |
| Inflatable Restraint Roof Rail Module - Left Disable Connector | Behind headliner, above left rear window. See Figure. |
| Inflatable Restraint Roof Rail Module - Right | Behind headliner, above front passenger. See Figure. |
| Inflatable Restraint Roof Rail Module - Right Disable Connector | Behind headliner, above right rear window. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console. See Figure. |
| Inflatable Restraint Steering Wheel Module | In center of steering wheel. See Figure. |

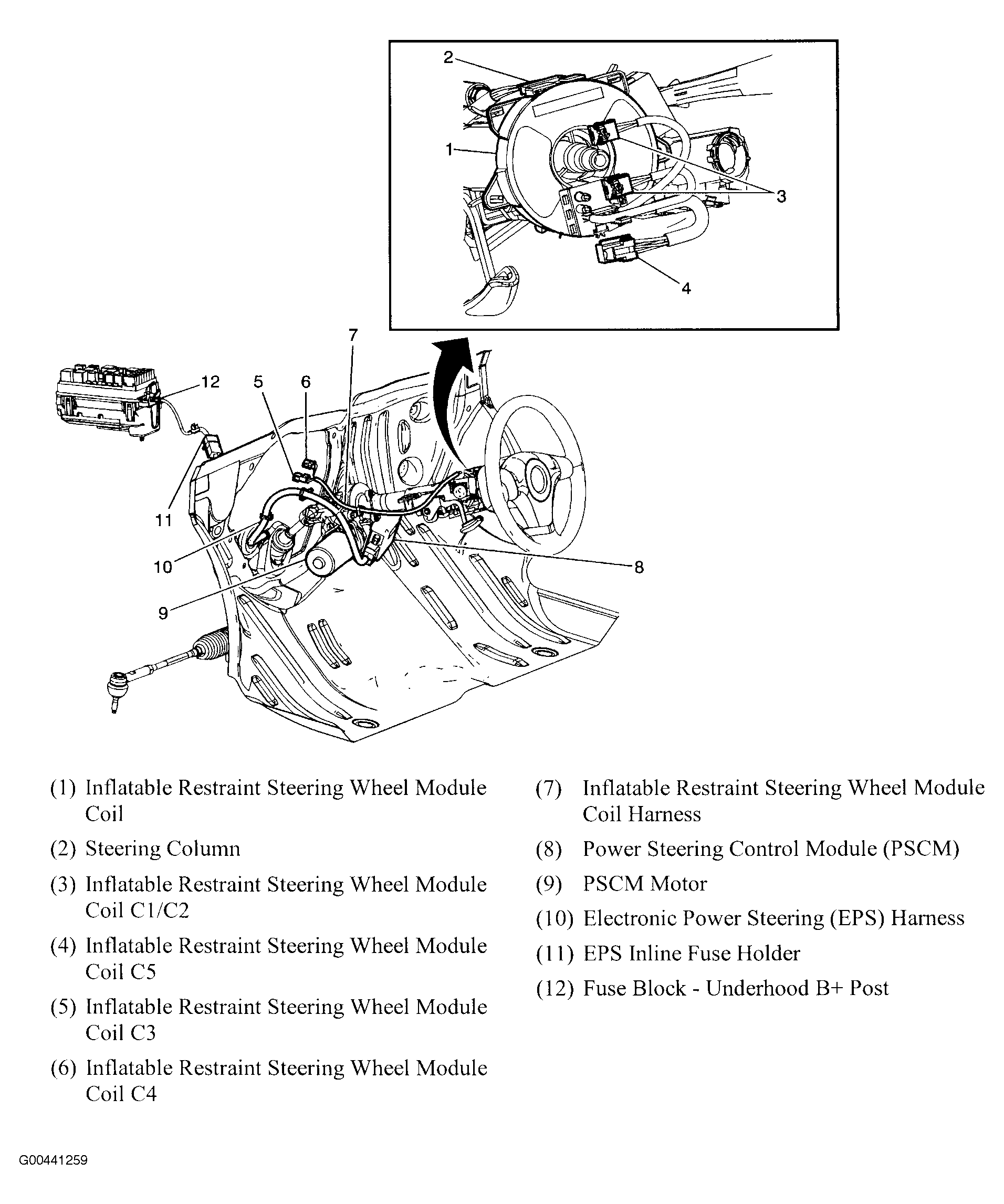

| Power Steering Control Module (PSCM) | On bottom of steering column. See Figure. |
| Powertrain Control Module (PCM) | Right side of engine compartment. See Figure. |
| Roof Rail Module - Left | At top of left "C" pillar. See Figure. |
| Roof Rail Module - Right | At top of right "C" pillar. See Figure. |
| Sensing & Diagnostic Module (SDM) | Under center floor console. See Figure. |

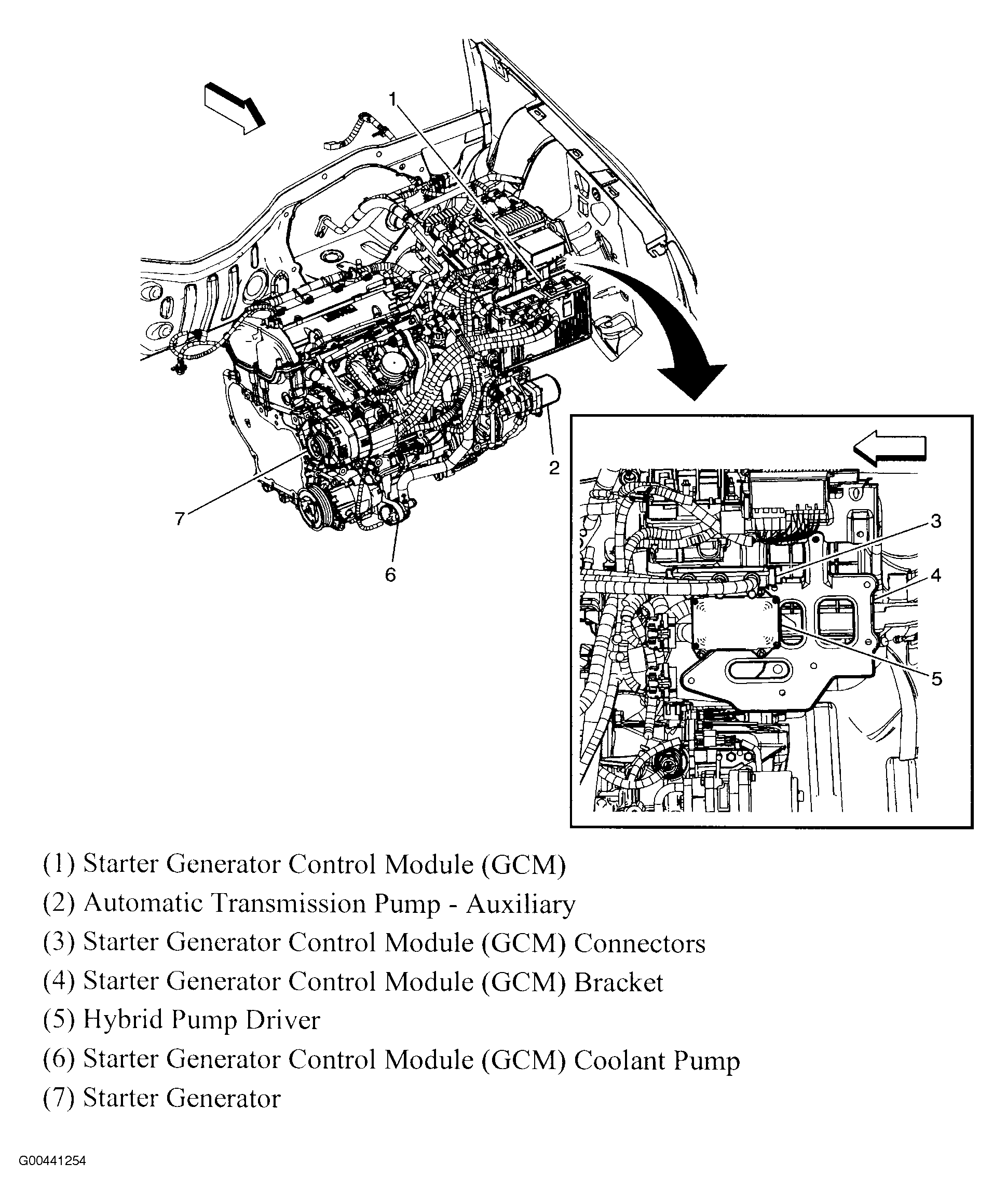

| Starter Generator Control Module (GCM) | Left front of engine compartment. See Figure. |

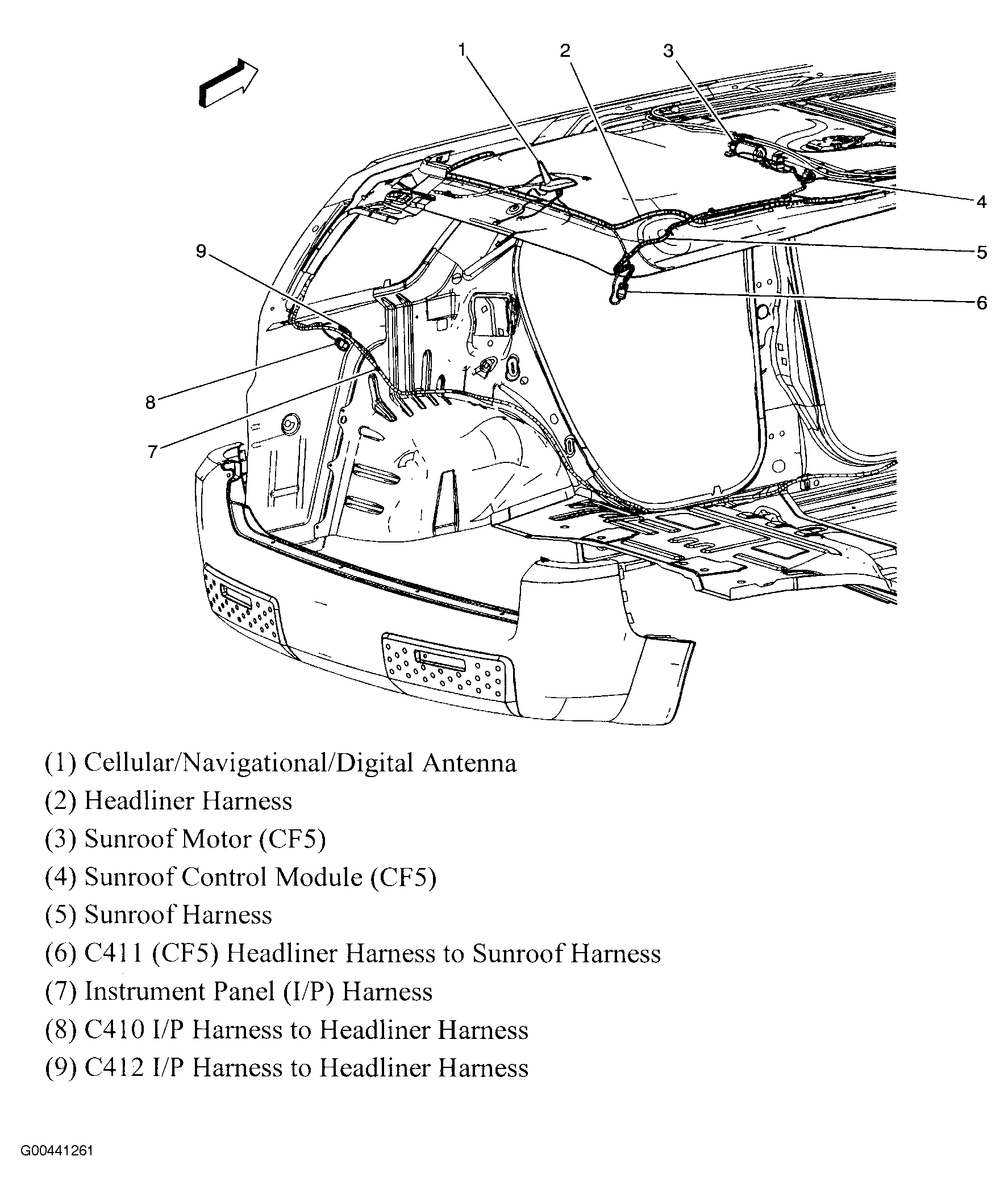

| Sunroof Control Module | Rear of sunroof module. See Figure. |

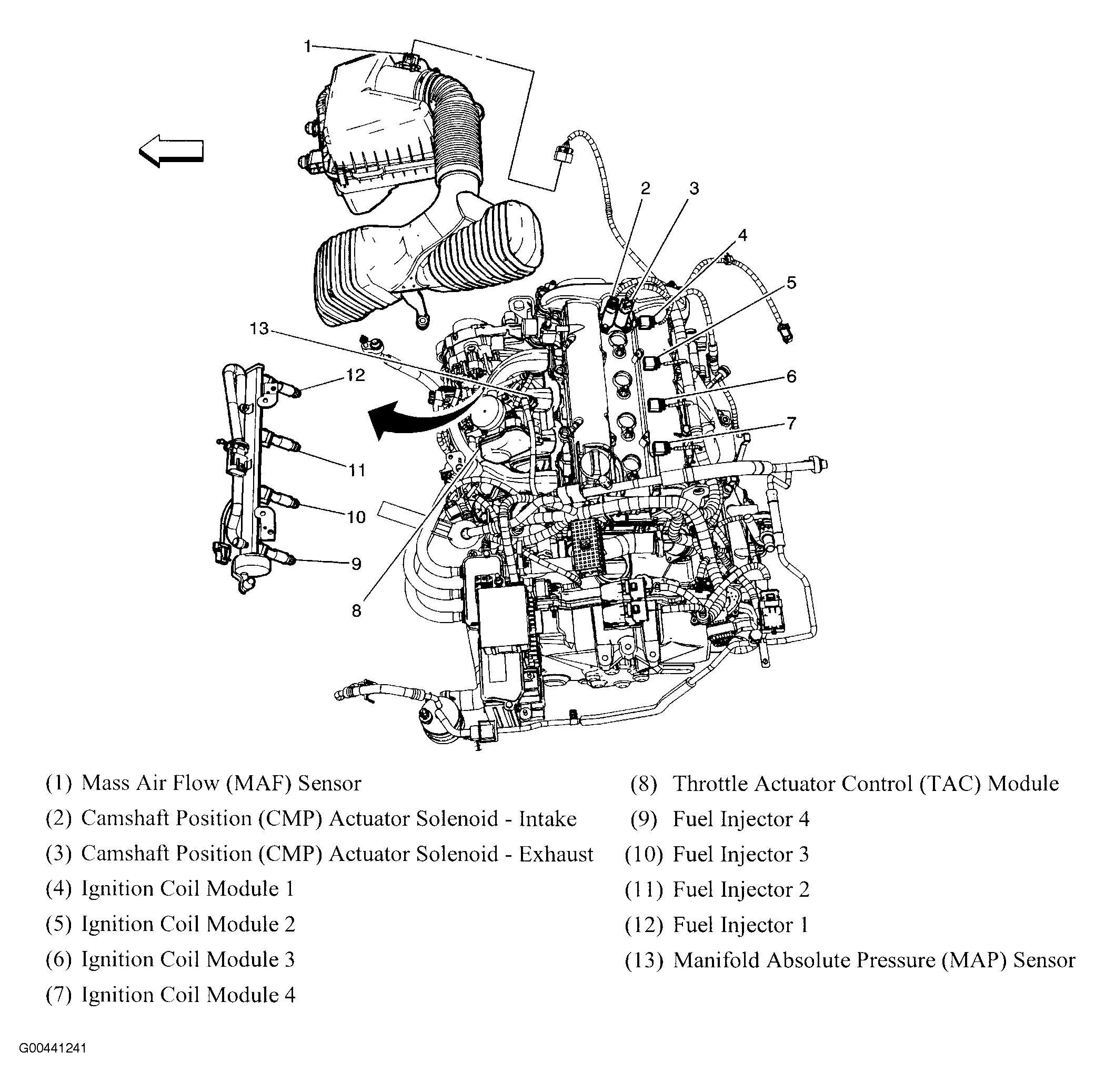

| Throttle Actuator Control (TAC) Module (2.2L) | Top left rear side of engine , on throttle body. See Figure. |
| Throttle Actuator Control (TAC) Module (3.5L) | At rear of engine , on throttle body. See Figure. |

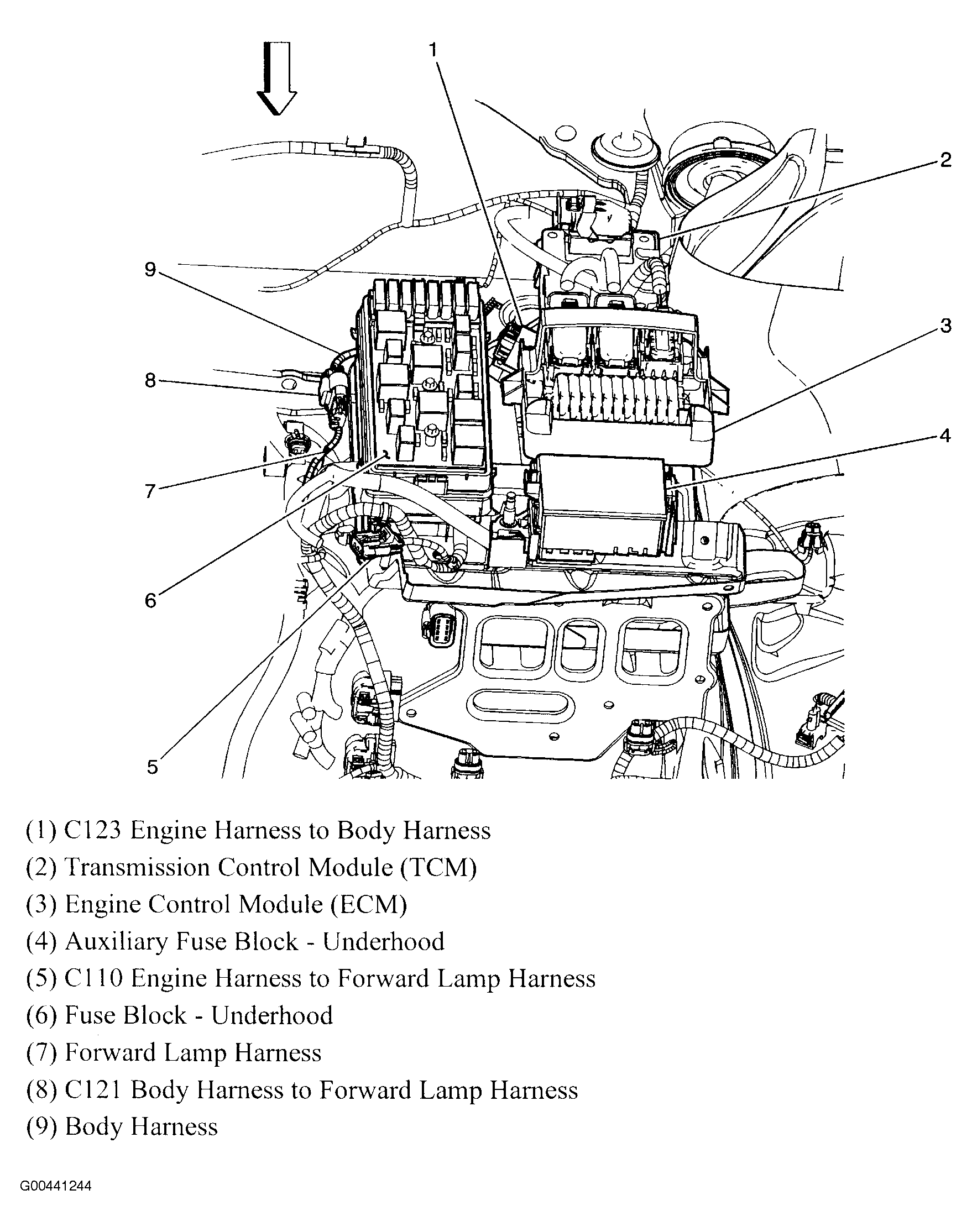

| Transmission Control Module (TCM) | At left side of engine compartment. See Figure. |

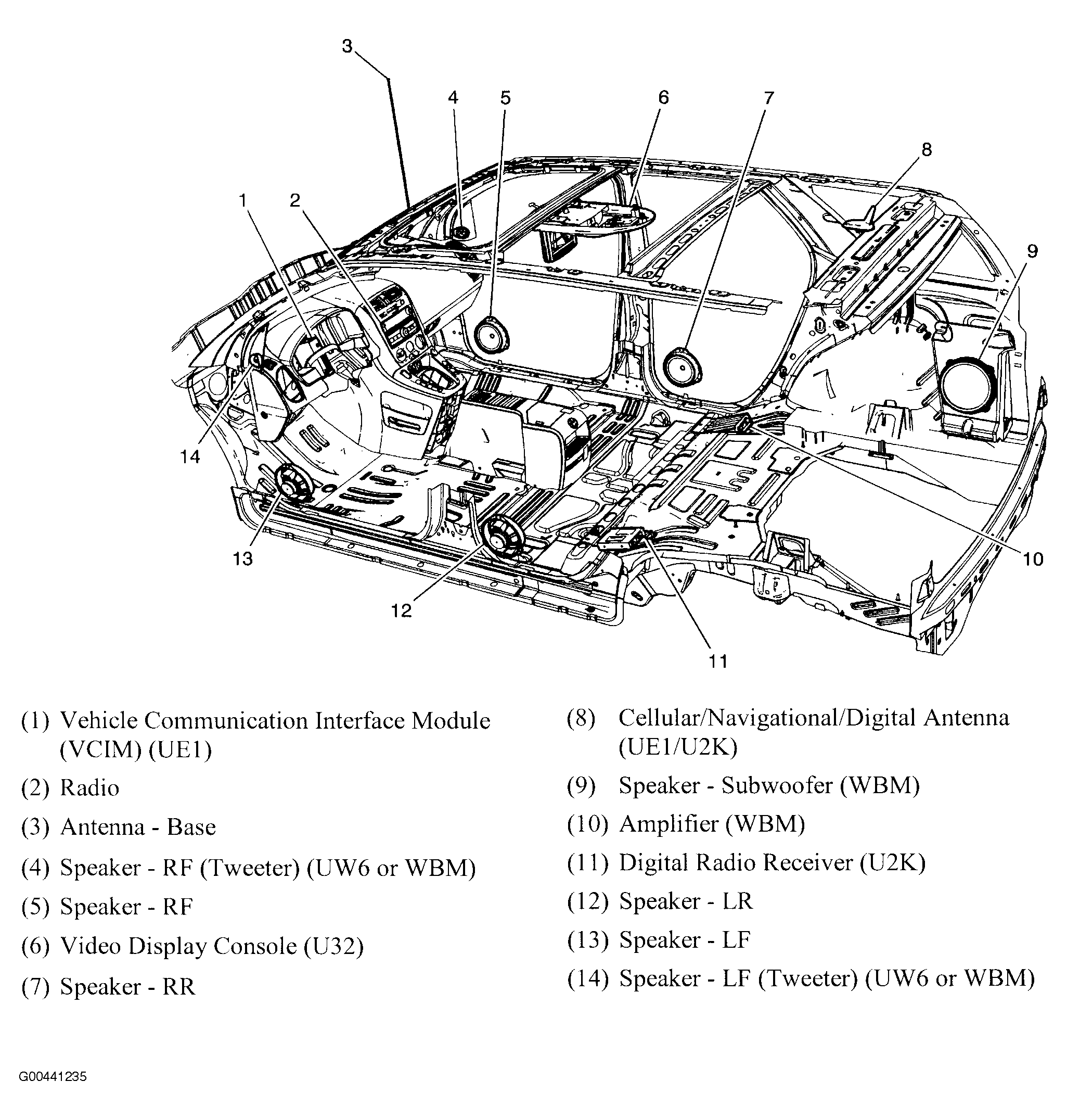

| Vehicle Communication Interface Module (VCIM) | Under left side of dash. See Figure. |
| Windshield Wiper Module | Under left side of cowl. See Figure. |
