Control Units
CONTROL UNITS LOCATION

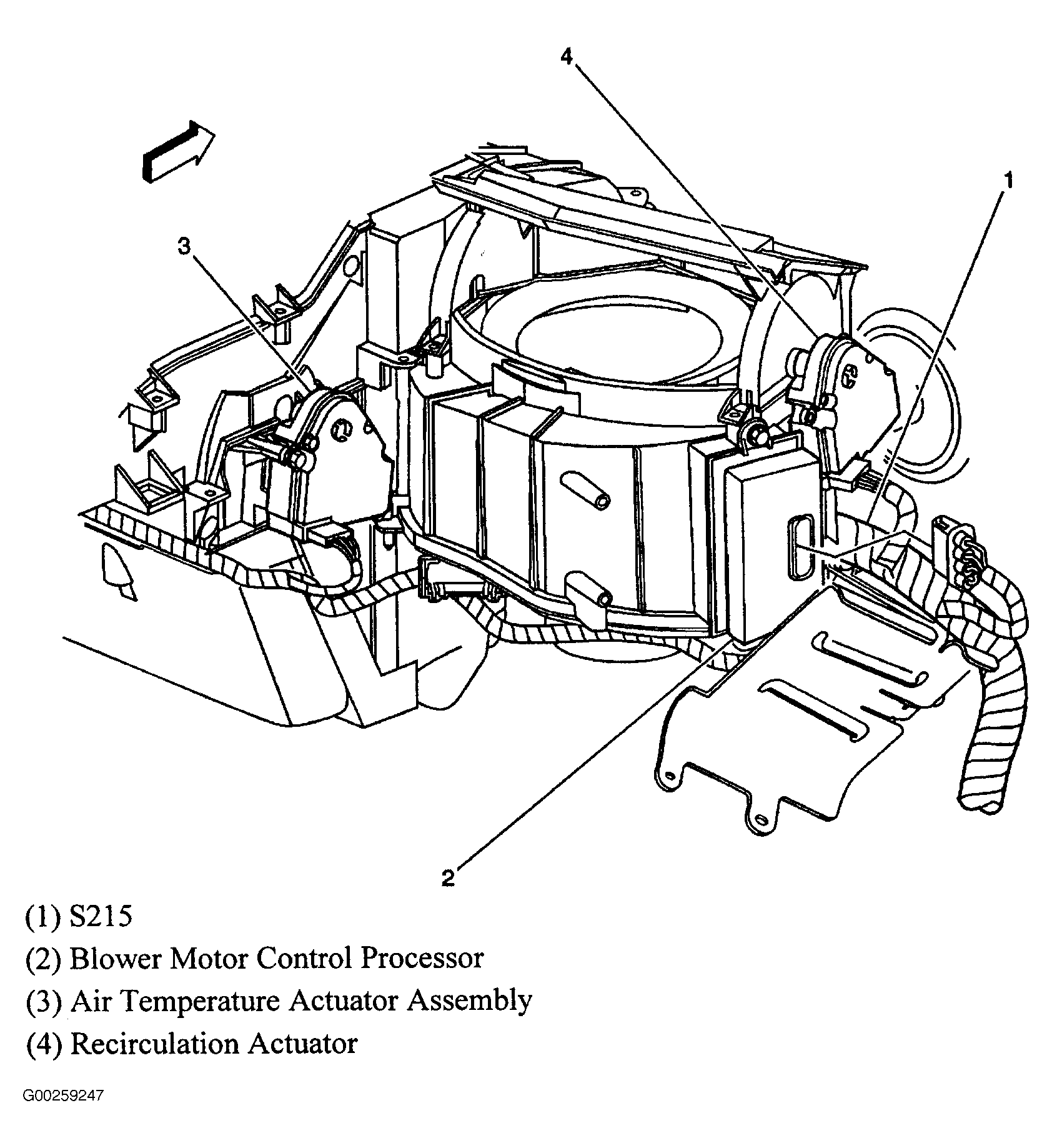

| Component | Location |
|---|---|
| Auxiliary HVAC Control Module | At rear of center console. |
| Blower Motor Control Processor | Under right side of dash, right of blower motor. See Figure . |

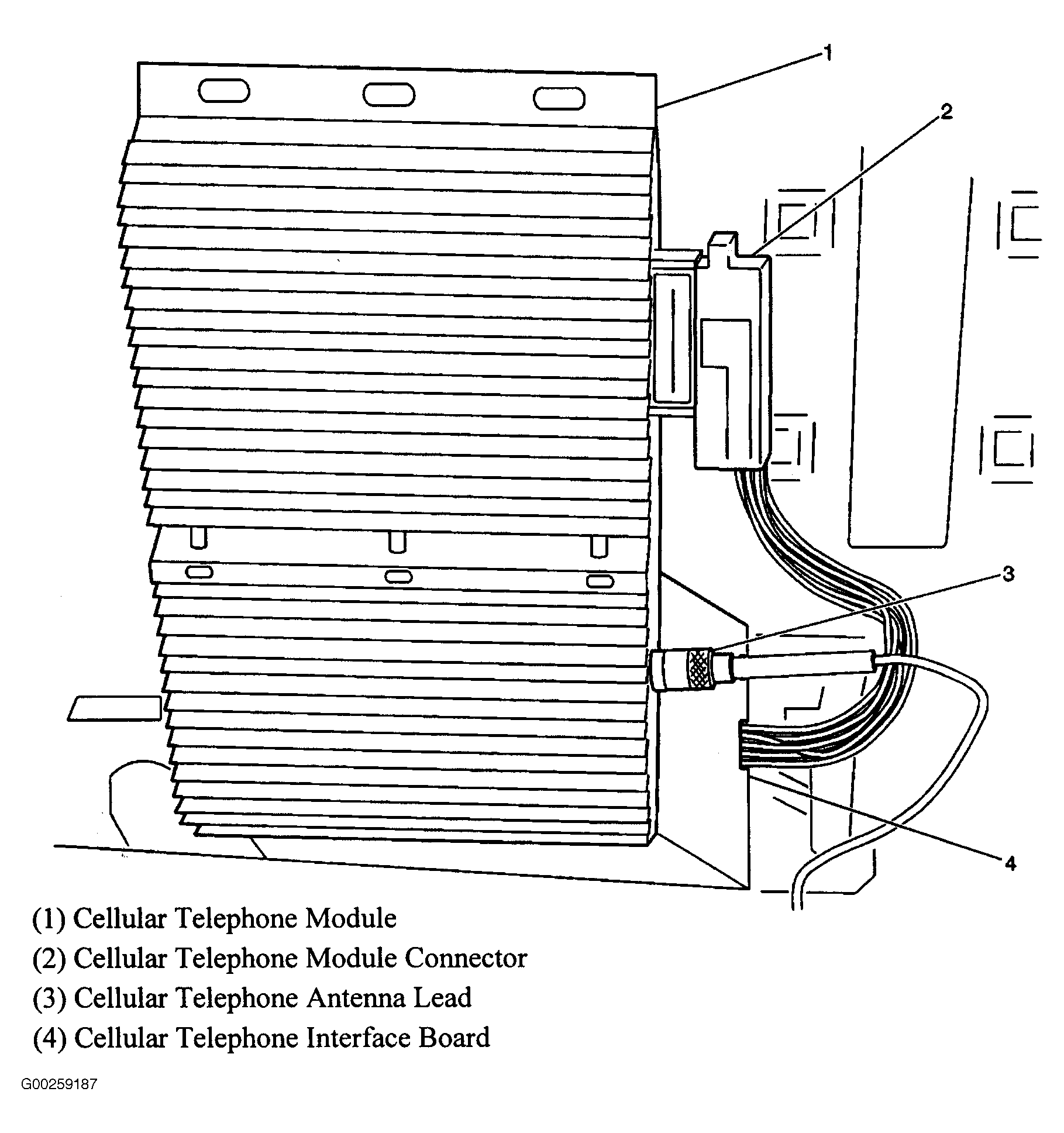

| Cellular Telephone Module | Under right side of rear package shelf. See Figure . |
| Cellular Telephone Module Connector | Under right side of rear package shelf. See Figure . |

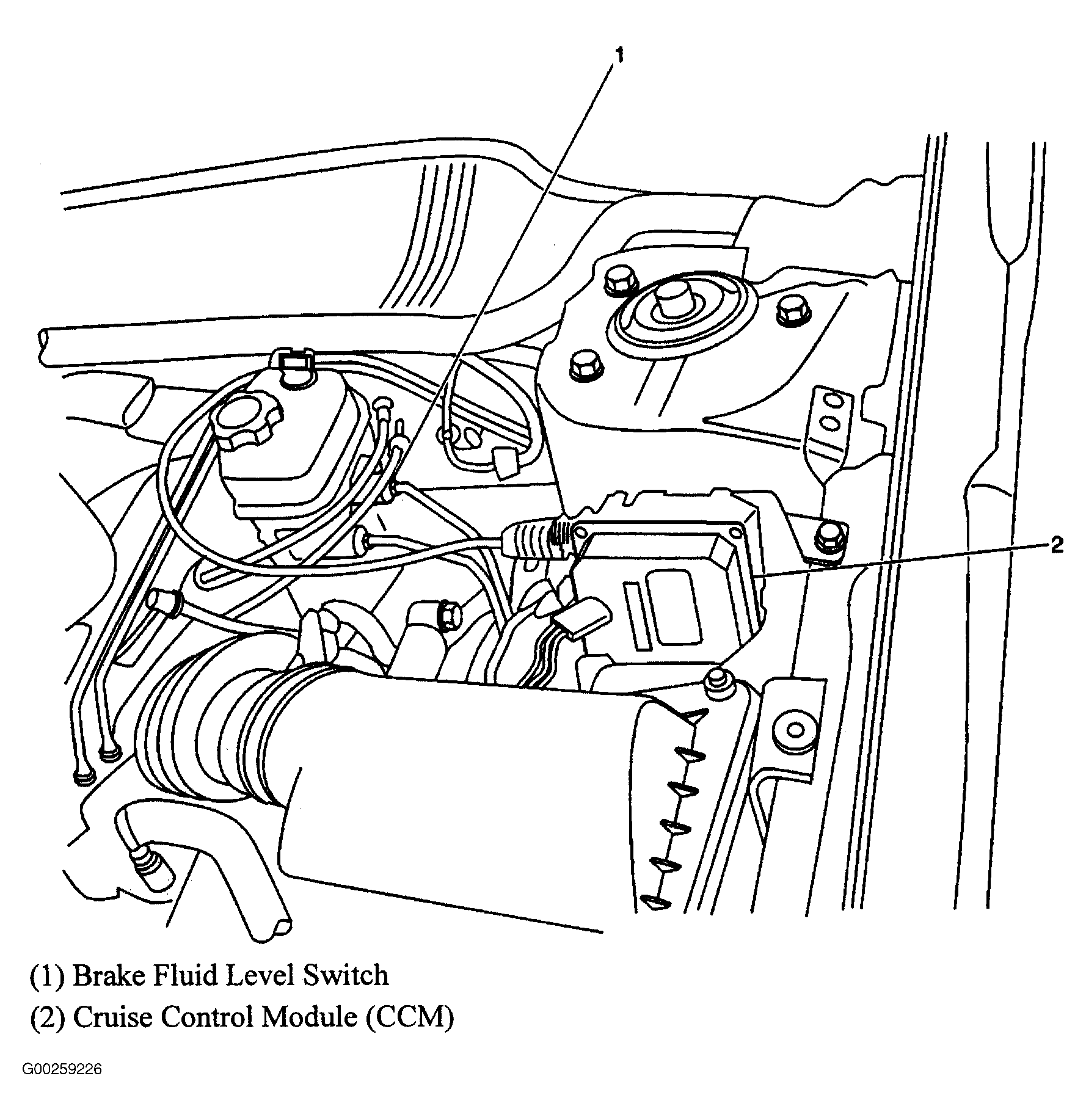

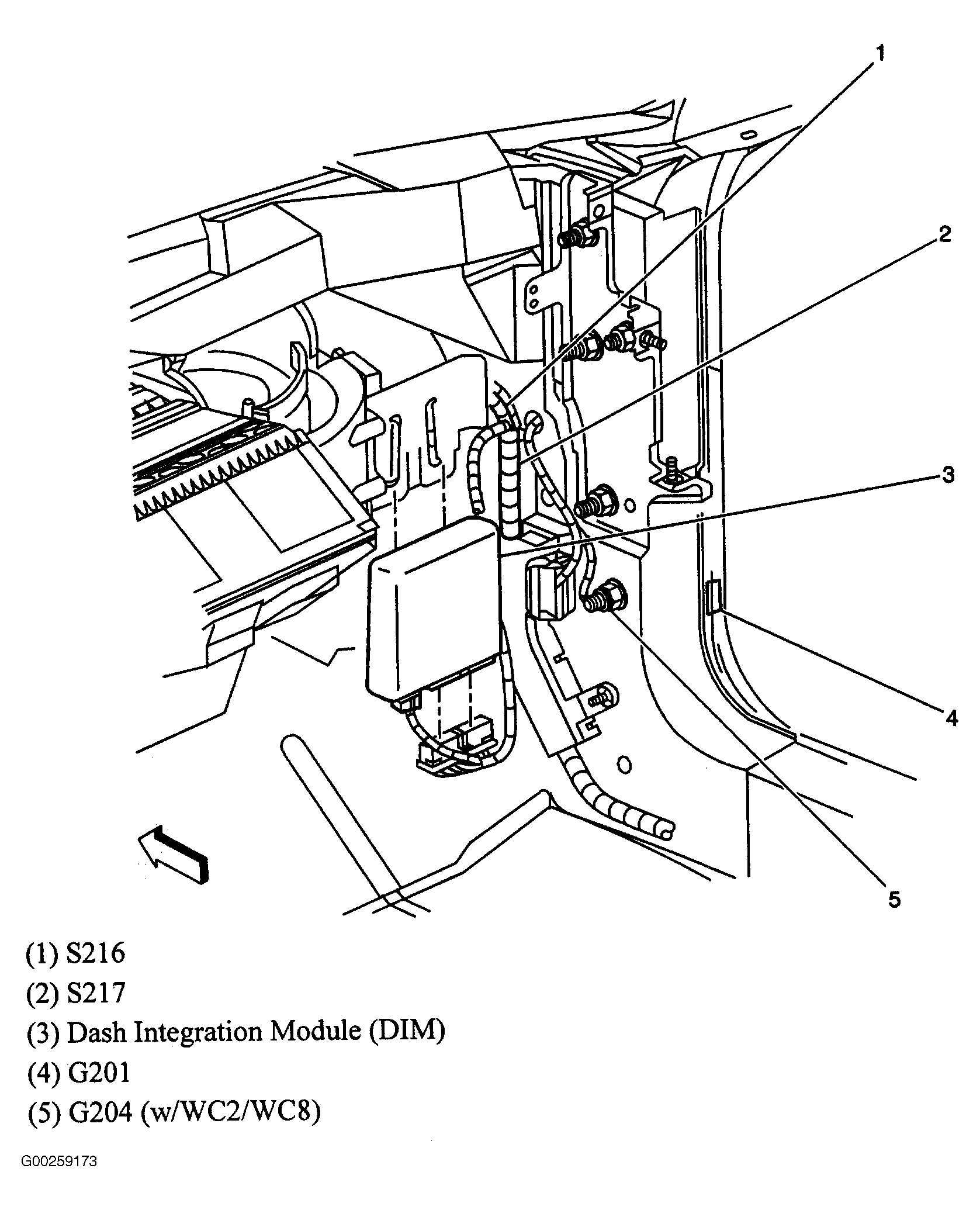

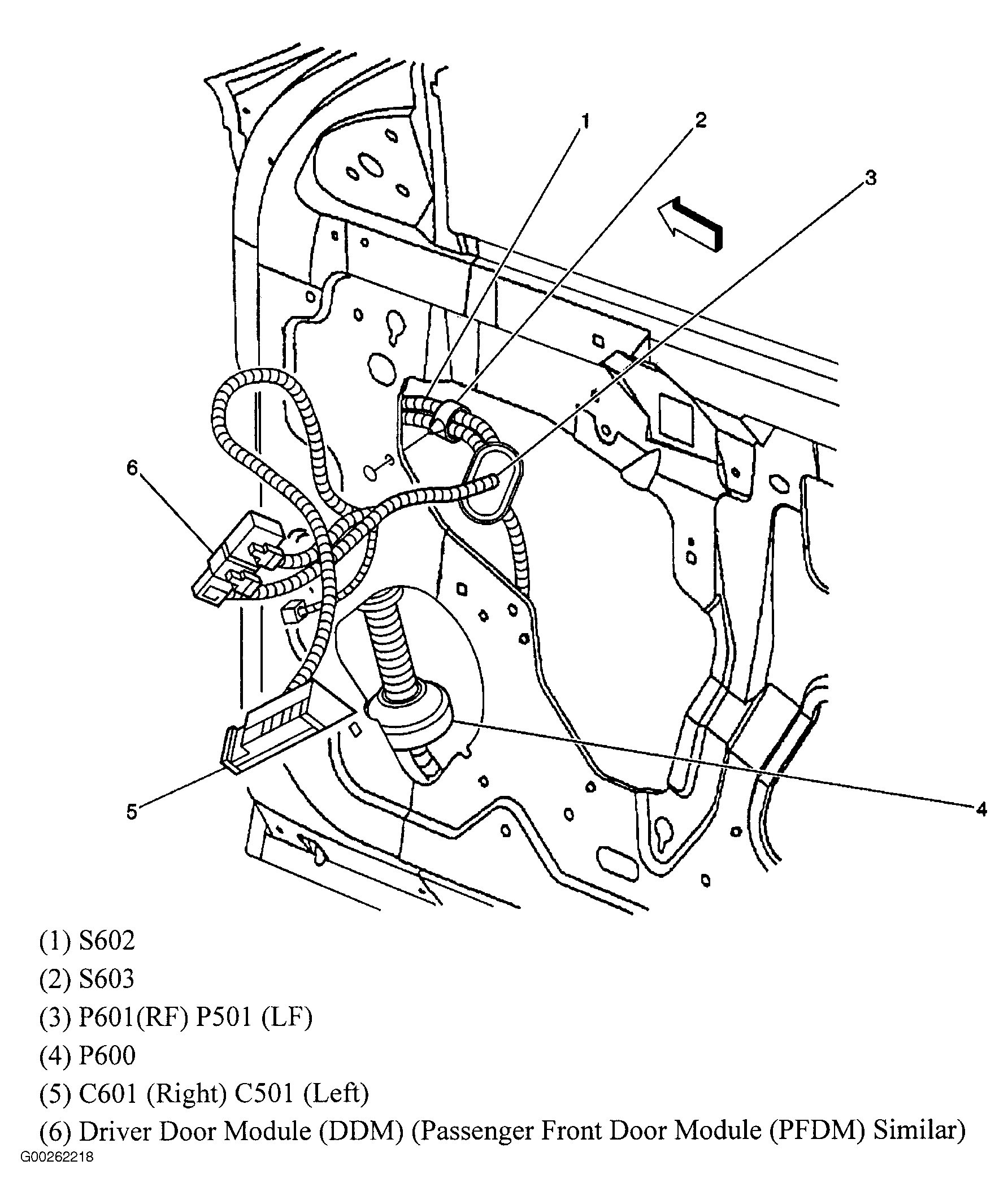

| Cruise Control Module | Near power brake booster. See Figure . |
| Dash Integration Module | Behind right side of dash, near blower motor. See Figure . |
| Driver Door Module | Inside middle of left front door. See Figure . |
| Driver Heated Seat Module | Below left front seat. |
| Driver Seat Massage Module | In left front seat back. |

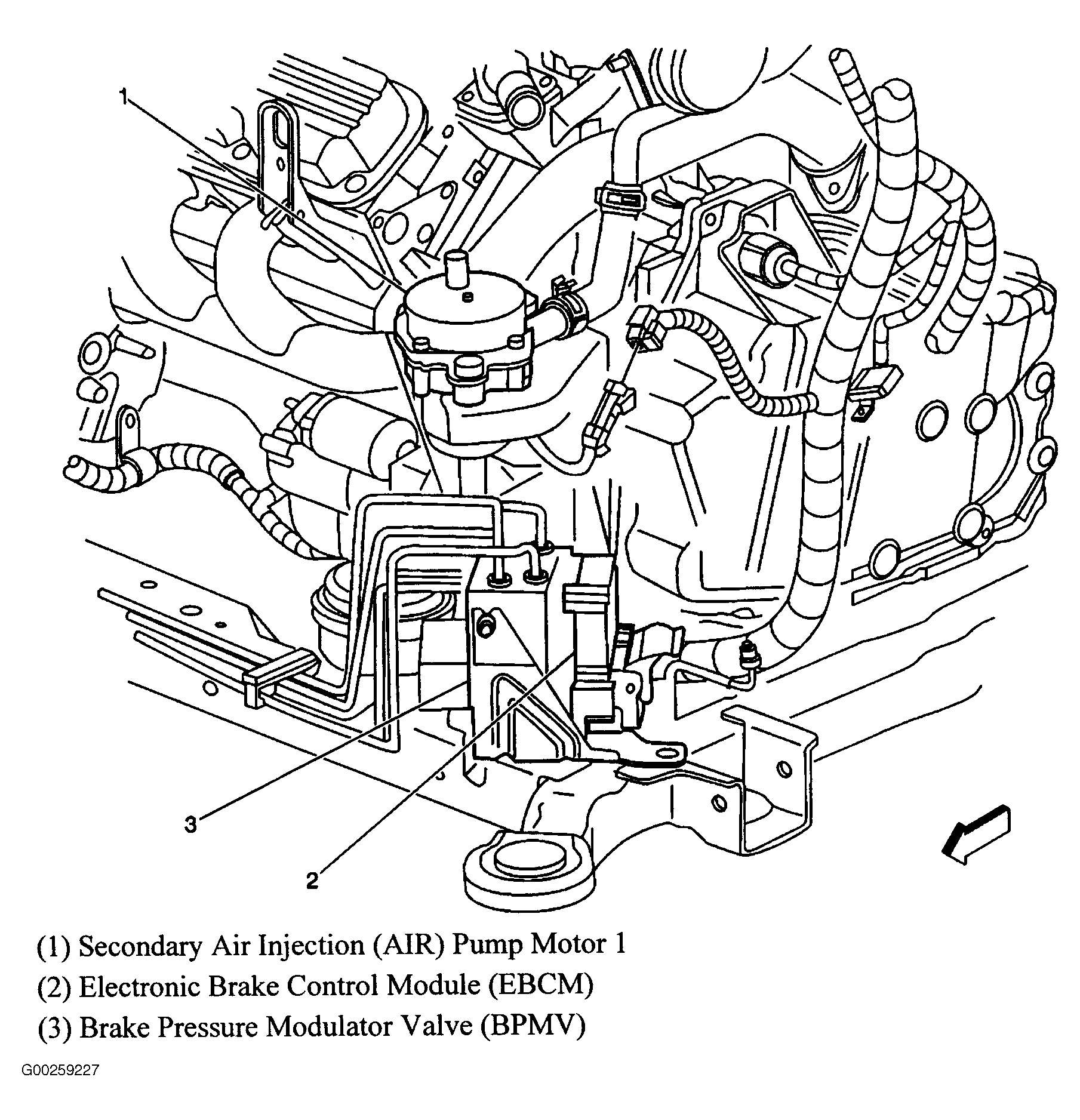

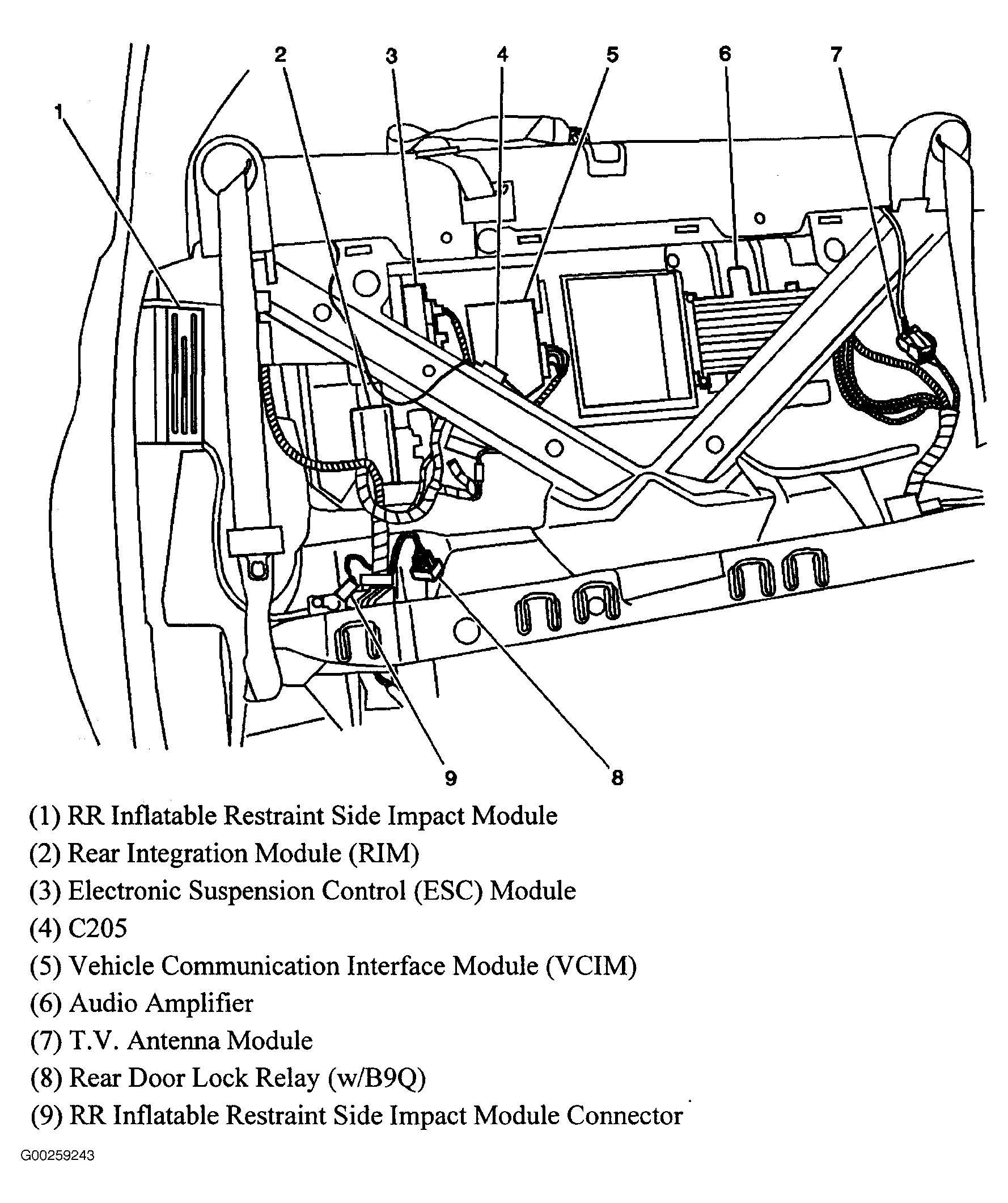

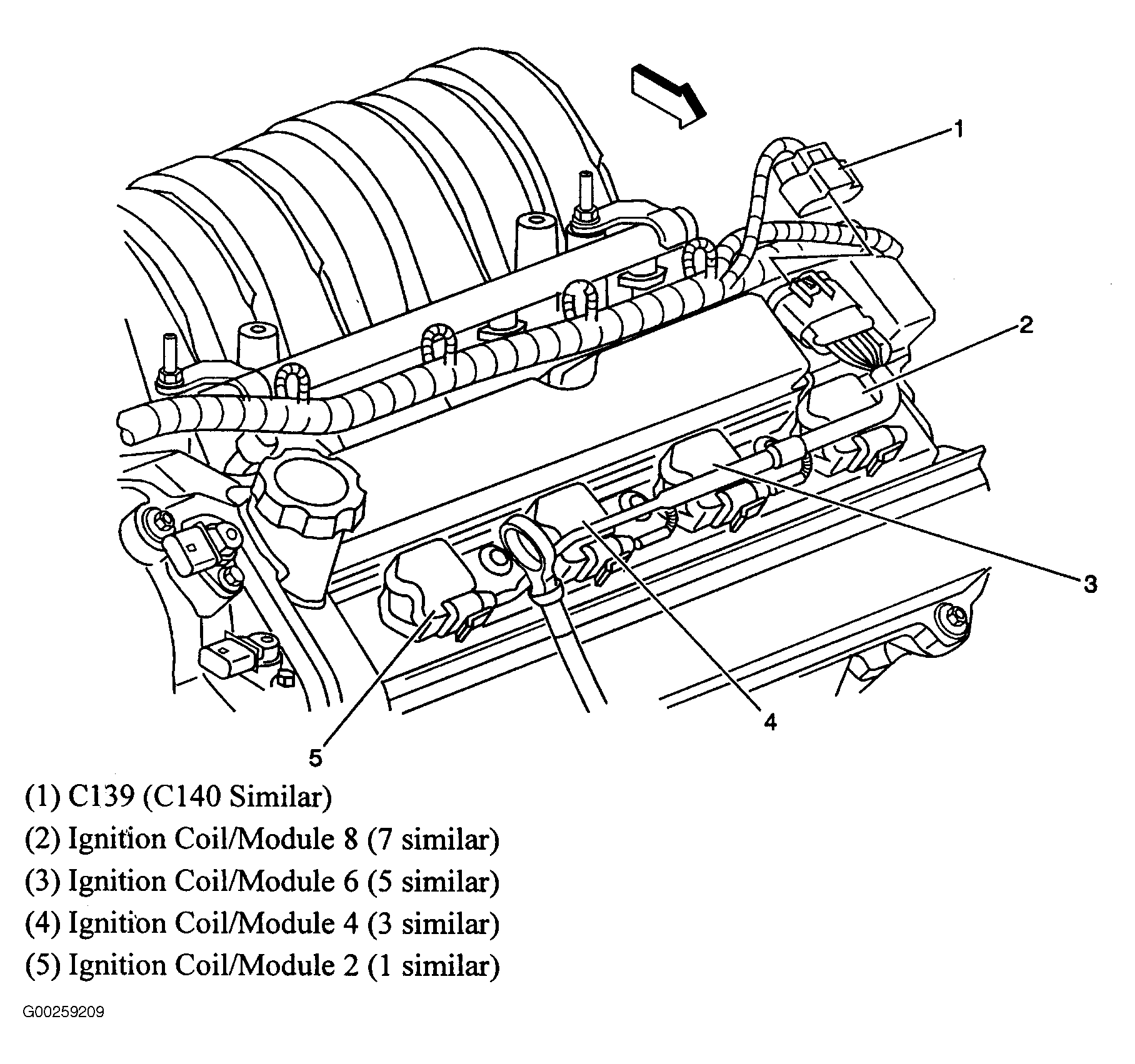

| Electronic Brake Control Module | Under air cleaner housing. See Figure . |
| Electronic Suspension Control Module | Behind right rear seat back. See Figure . |
| Front Passenger Door Module | Inside middle of right front door. See Figure . |
| Front Passenger Seat Massage Module | In right front seat back. |
| Ignition Coil/Module 1 | Top rear of engine. See Figure . |
| Ignition Coil/Module 2 | Top front of engine. See Figure . |
| Ignition Coil/Module 3 | Top rear of engine. See Figure . |
| Ignition Coil/Module 4 | Top front of engine. See Figure . |
| Ignition Coil/Module 5 | Top rear of engine. See Figure . |
| Ignition Coil/Module 6 | Top front of engine. See Figure . |
| Ignition Coil/Module 7 | Top rear of engine. See Figure . |
| Ignition Coil/Module 8 | Top front of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Under rear of center console. |
| Inflatable Restraint Side Impact Module Connector (Right Rear) | Behind lower right side of rear seat. See Figure . |
| Inflatable Restraint Side Impact Module (Right Rear) | Right corner of rear seat. See Figure . |

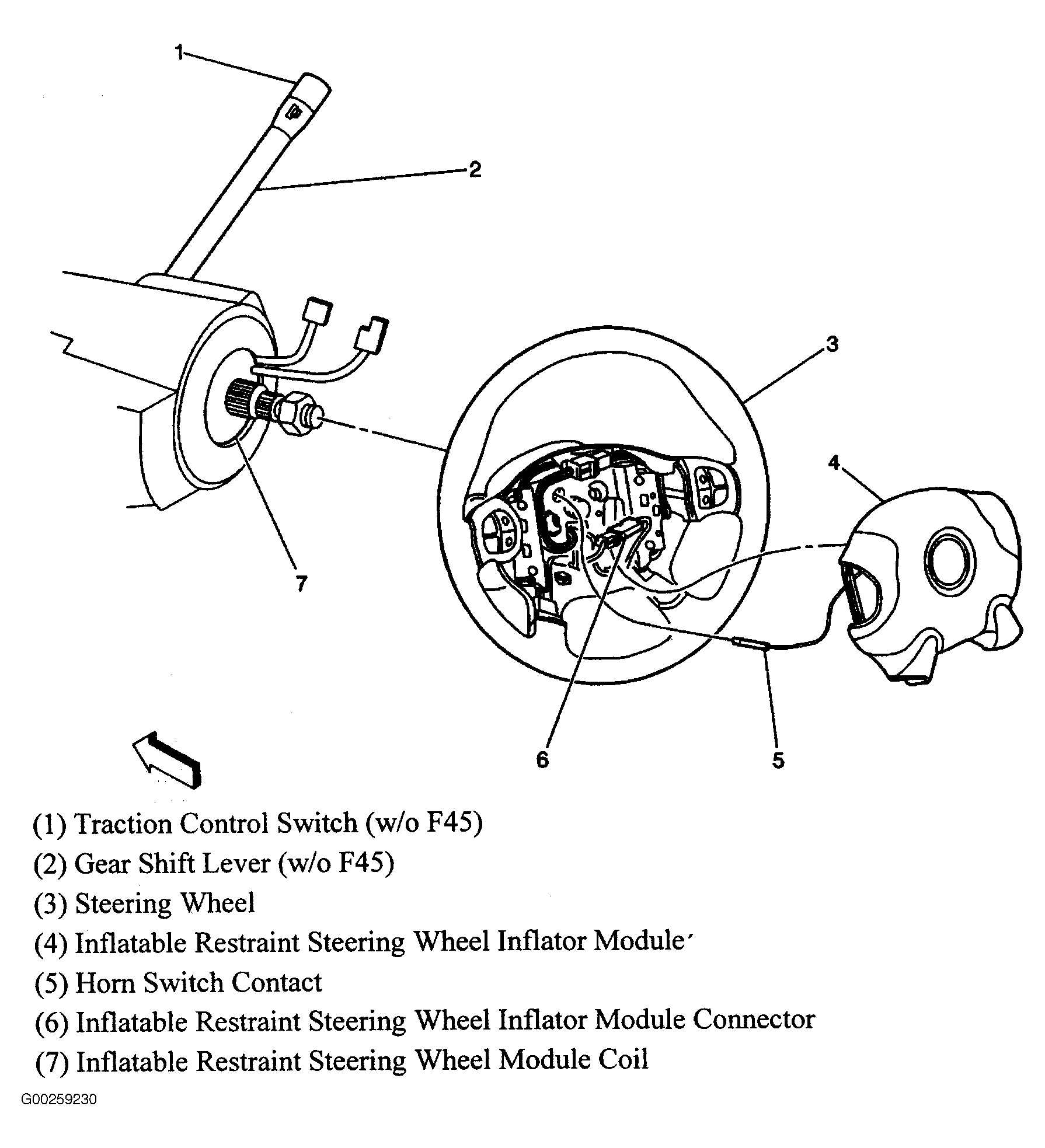

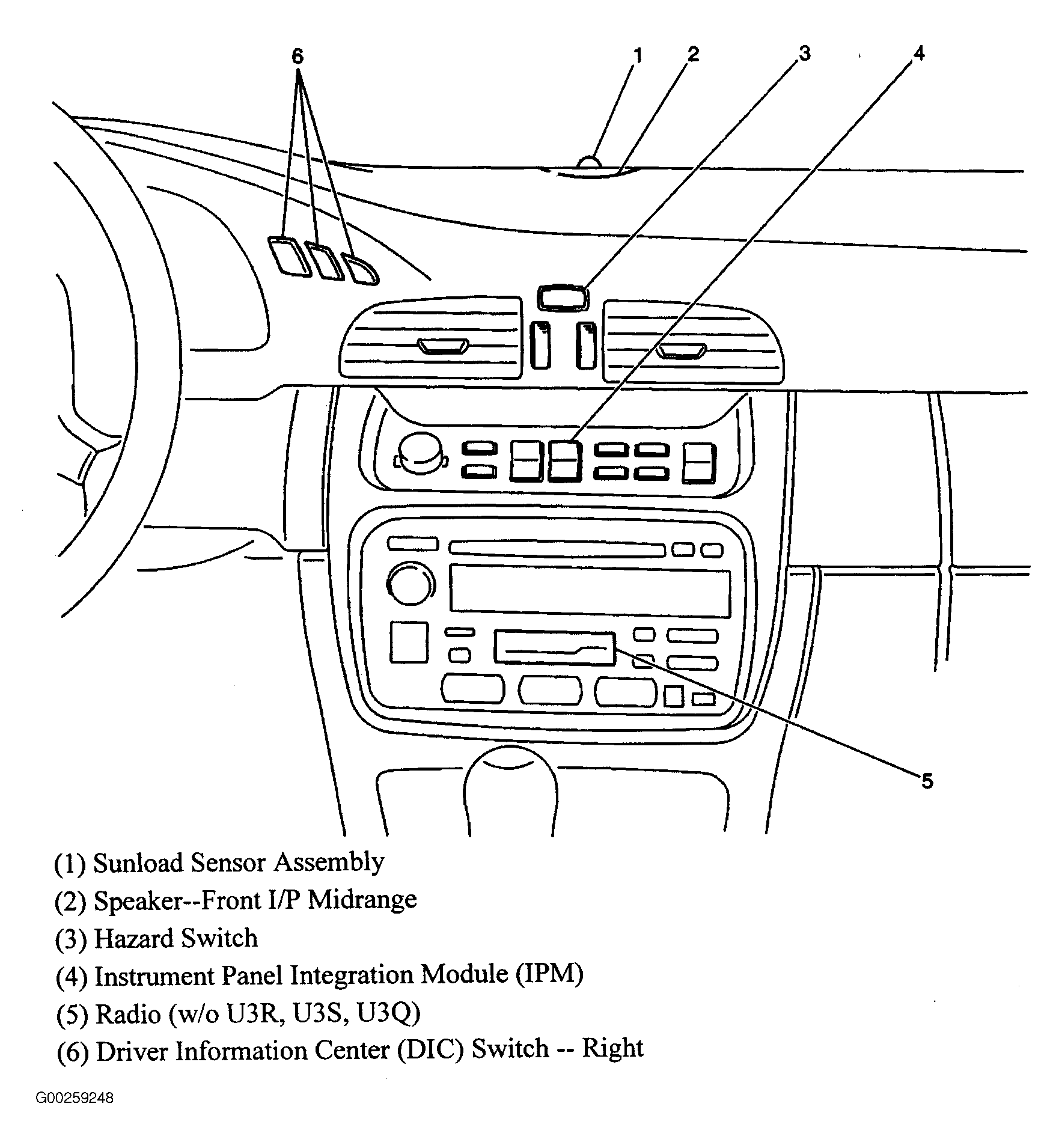

| Inflatable Restraint Steering Wheel Inflator Module | Top of steering wheel. See Figure . |
| Inflatable Restraint Steering Wheel Inflator Module Connector | On steering wheel. See Figure . |
| Inflatable Restraint Steering Wheel Module Coil | Top of steering column. See Figure . |
| Instrument Panel Integration Module | Above radio. See Figure . |
| Left Middle Door Module (Limousine) | Inside left middle door. |
| Left Rear Door Module | Inside front of left rear door. |
| Left Rear Heated Seat Module | In center of rear seat back. |
| Memory Seat Module | Under driver's seat. |

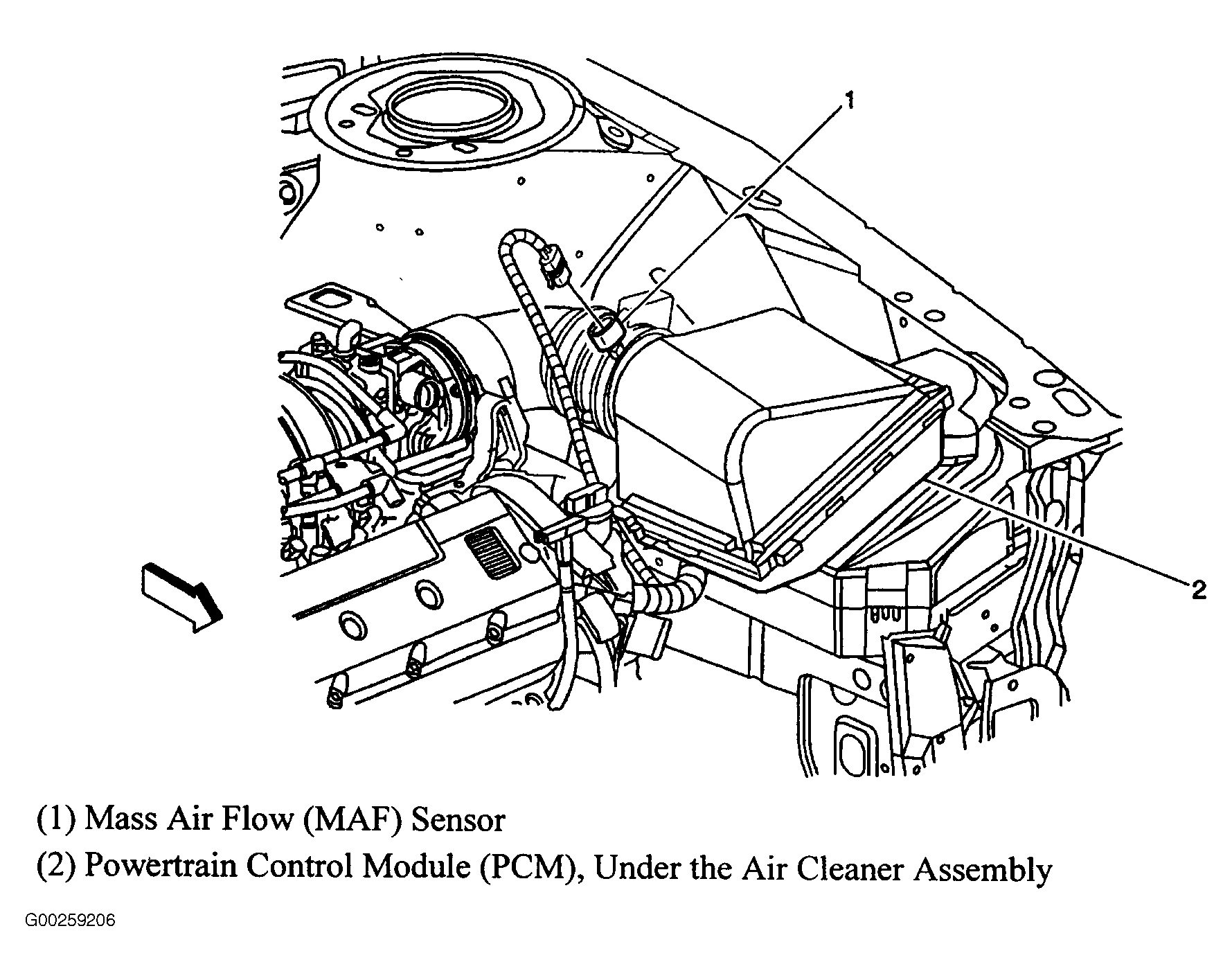

| Powertrain Control Module | At left side of engine compartment, inside air cleaner. See Figure . |

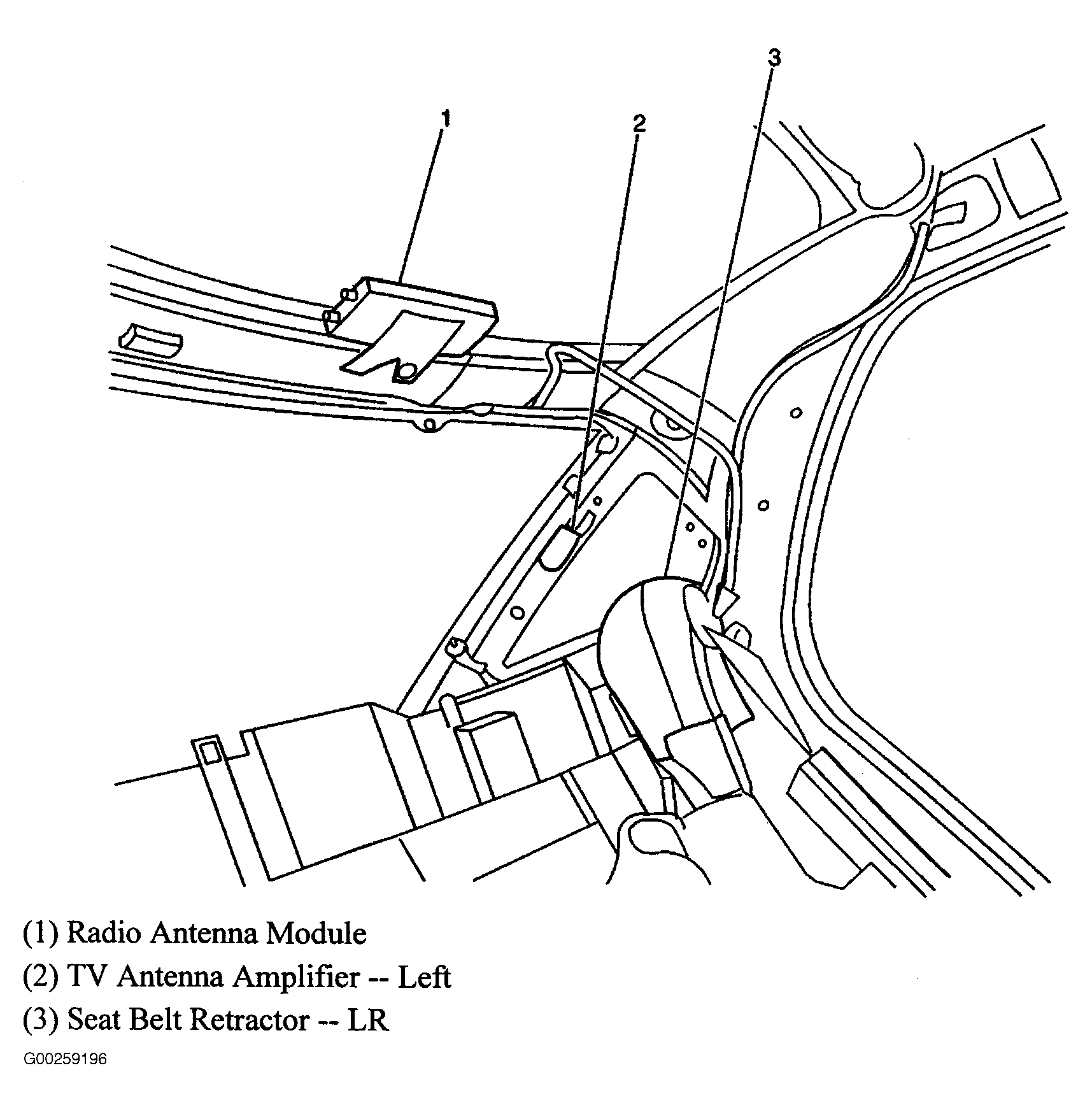

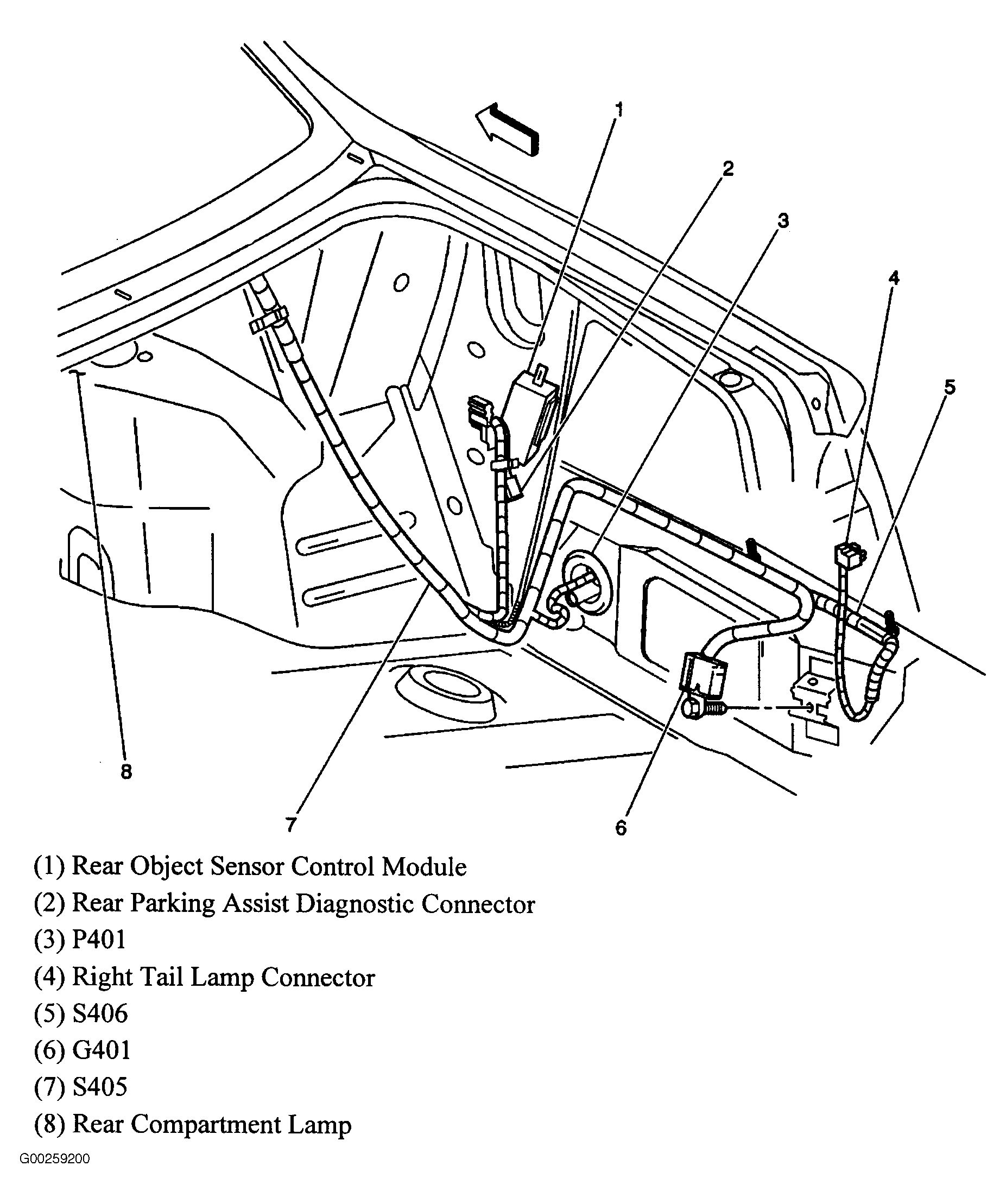

| Radio Antenna Module | Behind rear center of headliner. See Figure . |
| Rear Integration Module (RIM) | Behind right rear seat back. See Figure . |
| Rear Object Sensor Control Module | At right side of rear compartment. See Figure . |
| Rear Window Sunshade Module | Under center of rear package shelf. |

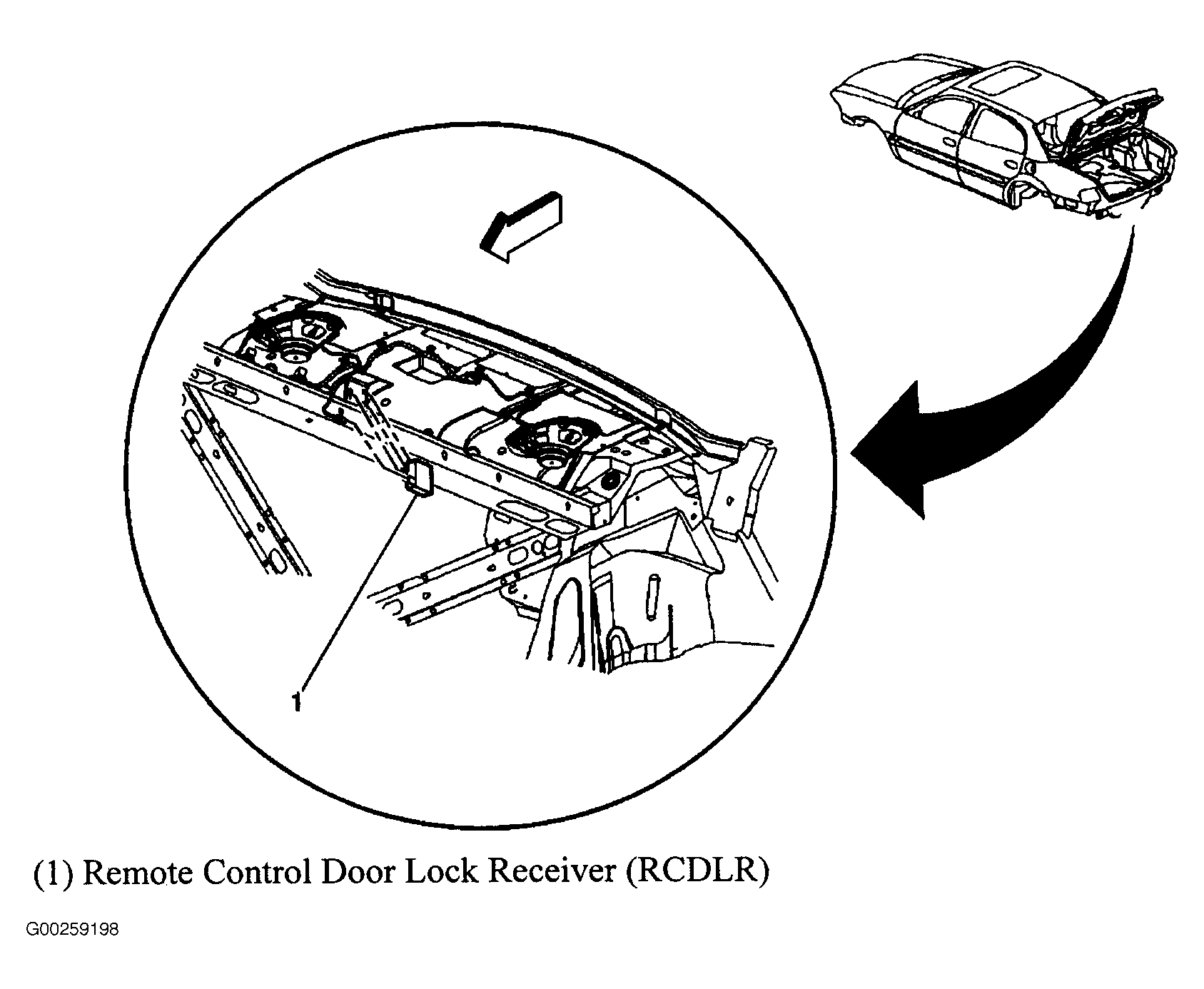

| Remote Control Door Lock Receiver (RCDLR) | Under center of rear package tray. See Figure . |
| Right Middle Door Module (Limousine) | Inside right middle door. |
| Right Rear Door Module | Inside front of right rear door. |
| Right Rear Heated Seat Module | In center of rear seat back. |

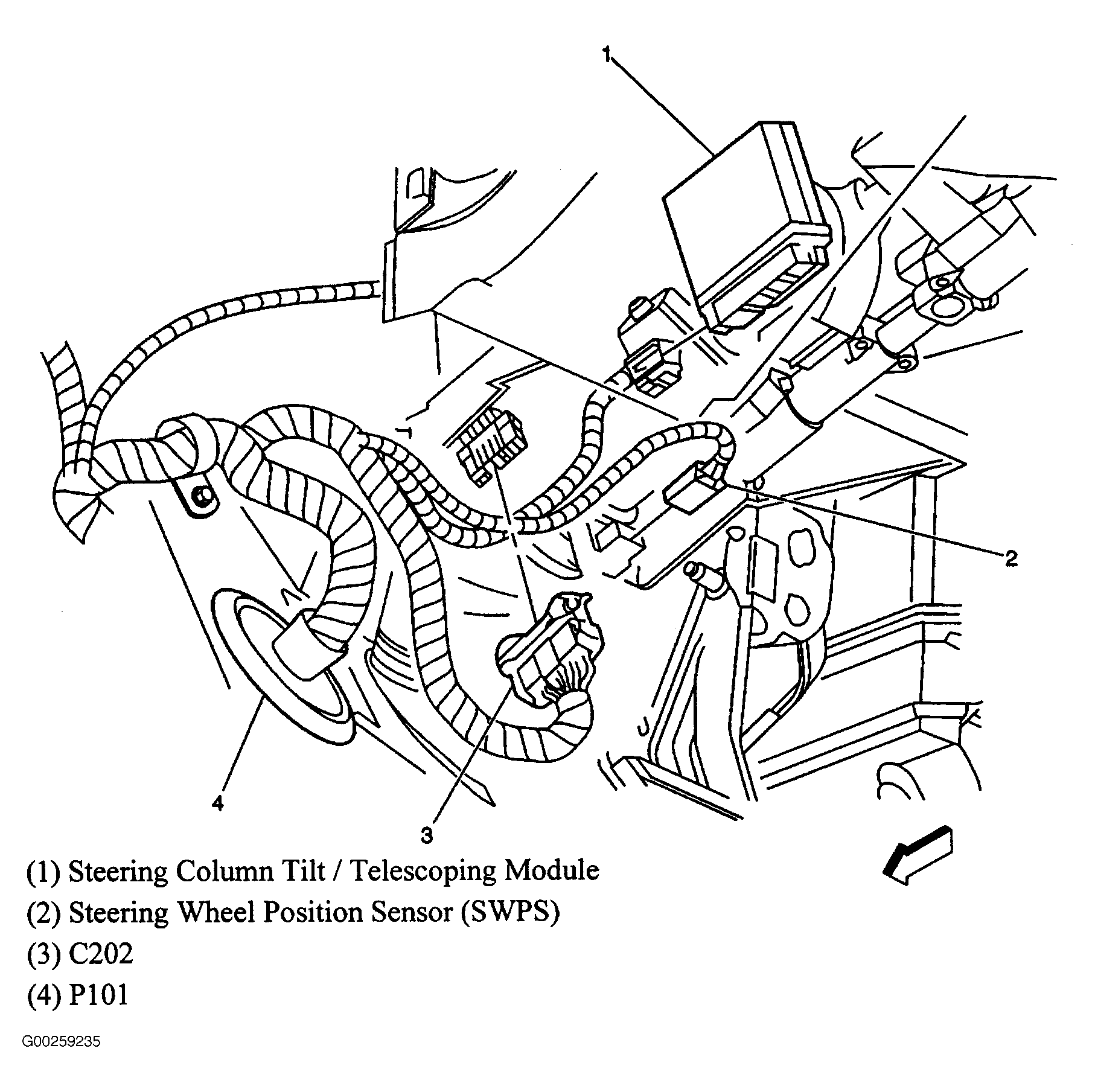

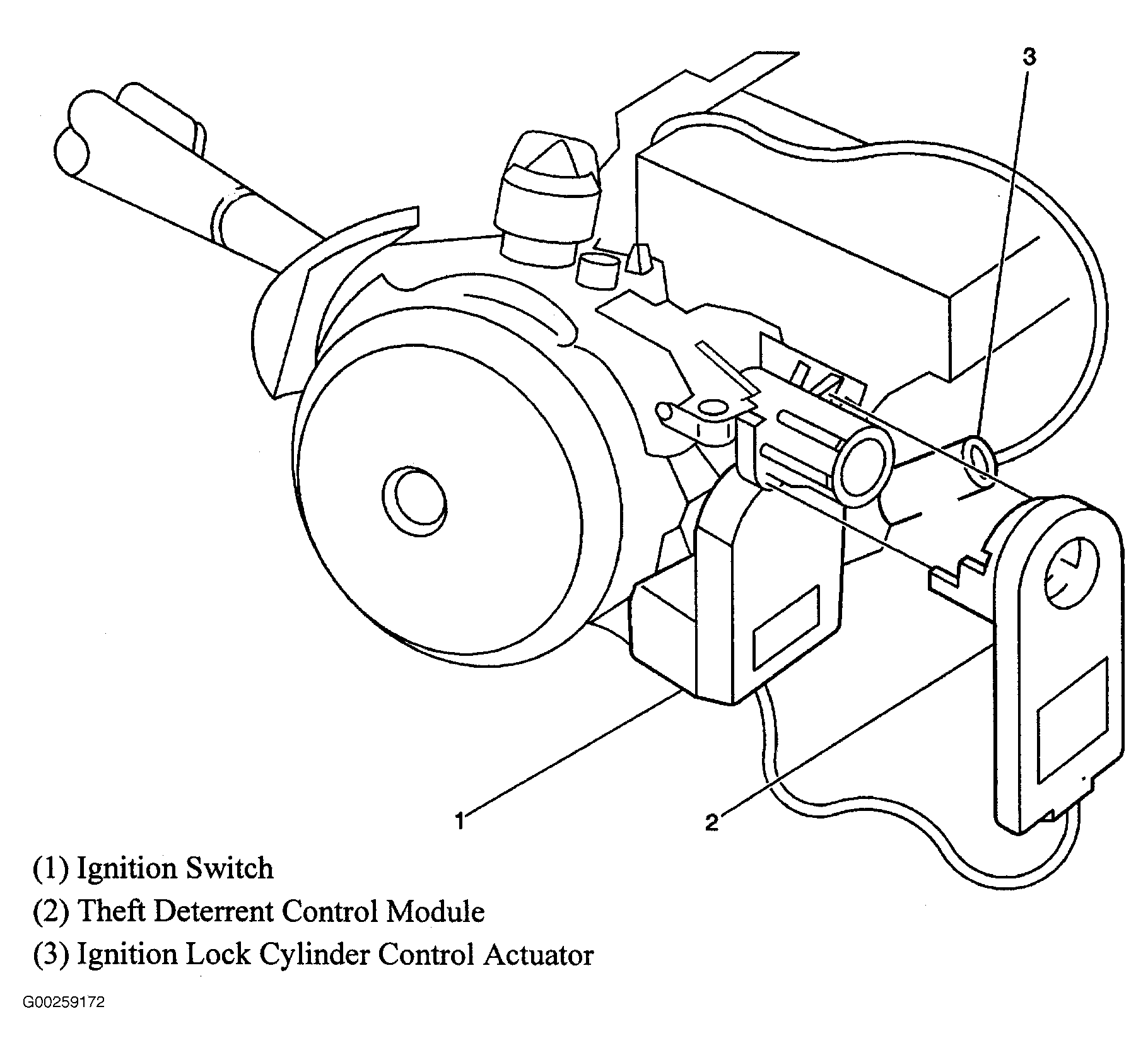

| Steering Column Tilt/Telescoping Module | At base of steering column. See Figure . |
| Sunroof Module | Near rear of sun roof. |
| Theft Deterrent Control Module | In steering column. See Figure . |
| Turn/Hazard Flasher Module | Behind left front knee bolster. |
| Vehicle Communication Interface Module (VCIM) | Behind right rear seat back. See Figure . |
| Vehicle Interface Unit | Behind right rear seat back. |
