Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind right kick panel. See Figure . |

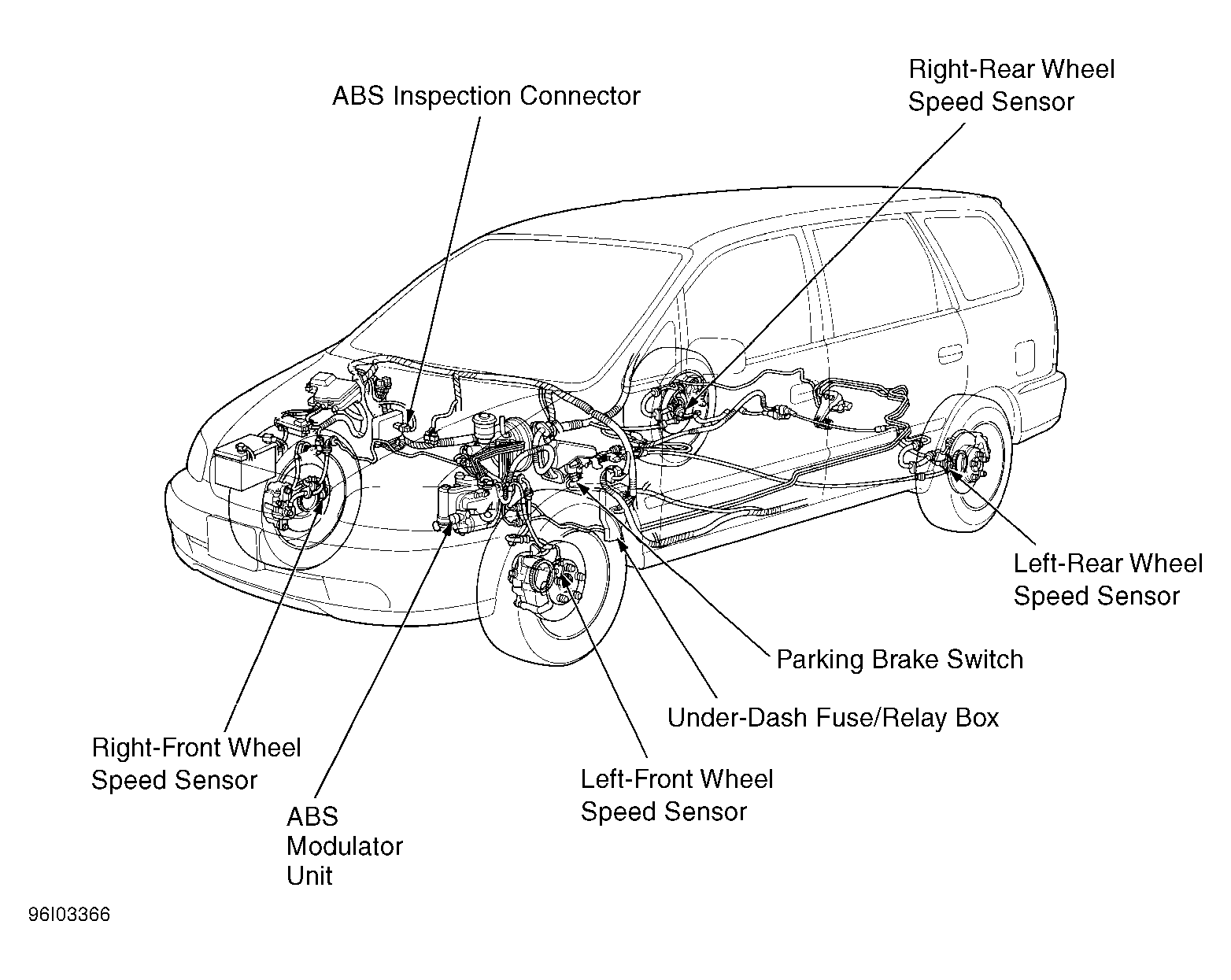

| ABS Modulator Unit | Left side of engine compartment. See Figure . |
| Cruise Control Unit | Below center of dash, forward of SRS unit. See Figure . |
| Daytime Running Lamps (DRL) Control Unit (Canada) | Behind left side of dash. See Figure . |
| Electrical Load Detector (ELD) Unit | Right rear corner of engine compartment, in under-hood fuse/relay box. See Figure . |
| Integrated Control Unit | At left kick panel, on rear of under-dash fuse/relay box. See Figure . |
| Interlock Control Unit | Behind dash, left of steering column. See Figure . |
| Keyless Door Lock Control Unit | In front of driver's door. See Figure . |
| Power Door Lock Control Unit | In front of driver's door. See Figure . |

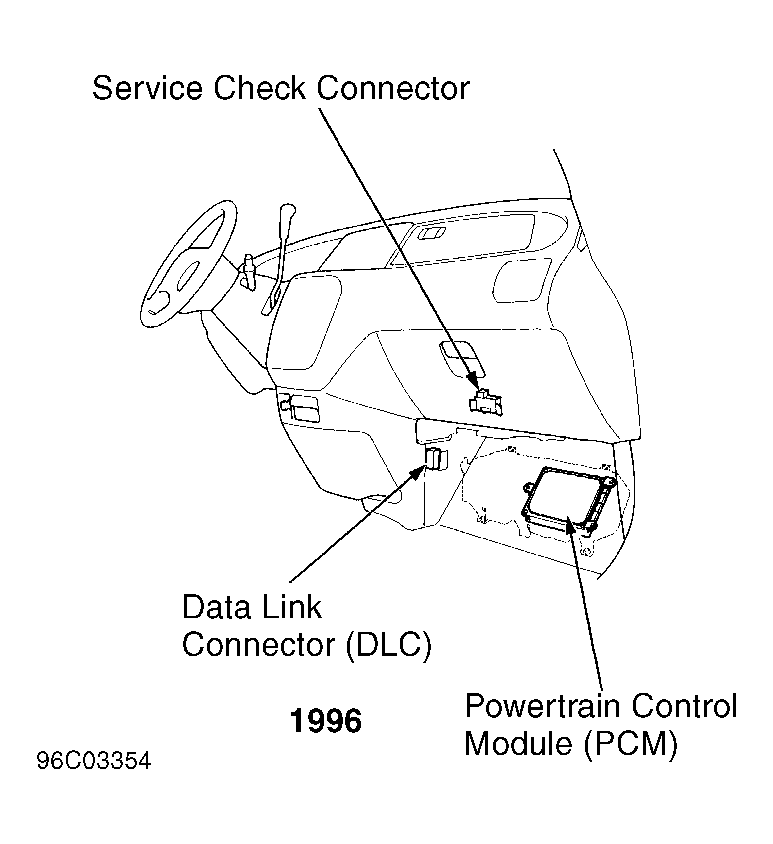

| Powertrain Control Module (PCM) | Underside of front passenger's footrest. See Figure . |
| Radiator Fan Control Module | Above left side of glove box. See Figure . |
| Security Control Unit | Underside of driver's seat. |
| SRS Unit | Below center of dash. See Figure . |
