Control Modules In Front Part Of Vehicle, Overview

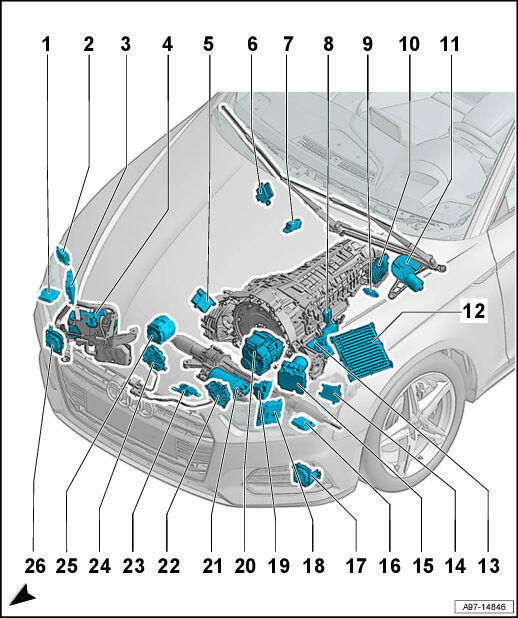

Fig 1: Identifying Control Modules In Front Part Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Right light control module -J1023-
   • Component location (8G0, 8G1, 8G4), through June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin arrangement (8G0, 8G1, 8G4), through June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
2. 2 -  Right LED Parking Lamp/DRL Module -L177-
   • Component location (8G0, 8G1, 8G4), through June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin arrangement (8G0, 8G1, 8G4), through June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
3. 3 -  Right LED Headlamp Power Output Stage 1 -A27-
   • Component location (8G0, 8G1, 8G4), through June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Component Location (8IT, 8IY), from June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- (8IT, 8IY), FROM JUNE 2020
   • Pin arrangement (8G0, 8G1, 8G4), through June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
   • Pin arrangement (8IT, 8IY), from June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
4. 4 -  Auxiliary Heater Control Module -J364-
   • Component Location AUXILIARY HEATER CONTROL MODULE -J364- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin Arrangements Pin Arrangements Auxiliary Heater Control Module -J364-
5. 5 -  Automatic Glow Time Control Module -J179-
   • Component Location for engine codes DEWA, DEWB Automatic Glow Time Control Module -J179-, FOR ENGINE CODES DEWA, DEWB
   • Component Location for engine codes DMGA, DMKC Automatic Glow Time Control Module -J179-, FOR ENGINE CODES DMGA, DMKC
   • Component Location for engine codes DCPC, DCPE, DESA, DETA, DETB, DEUA, DEUB, DEZB, DEZE, DFBA, DFVA, DTPA, DTNA, DTNB, CVMD  -7- Automatic Glow Time Control Module -J179-
   • Pin arrangement for engine codes DEWA, DEWB Pin Arrangements Automatic Glow Time Control Module -J179-
   • Pin arrangement for engine codes DMGA, DMKC Pin Arrangements Automatic Glow Time Control Module -J179-
6. 6 -  Structure-Borne Sound Control Module -J869-
   • Component location left-hand drive vehicles STRUCTURE-BORNE SOUND CONTROL MODULE -J869- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Component location right-hand drive vehicles mirror-inverted
7. 7 -  Automatic Glow Time Control Module -J179-
   • Component Location for engine codes DCPC, DCPE, DESA, DETA, DETB, DEUA, DEUB, DEZB, DEZE, DFBA, DFVA, DTPA, DTNA, DTNB, CVMD Automatic Glow Time Control Module -J179-, FOR ENGINE CODES DCPC, DCPE, DESA, DETA, DETB, DEUA, DEUB, DEZB, DEZE, DFBA, DFVA, DTPA, DTNA, DTNB, CVMD
   • Pin Arrangements Pin Arrangements Automatic Glow Time Control Module -J179-
   • Component Location and pin arrangement for vehicles with engine codes DEWA, DEWA, DEWB, DMKC  -5- Automatic Glow Time Control Module -J179-
8. 8 -  Direct Shift Gearbox (DSG) Mechatronic -J743-
   • Component Location Direct Shift Gearbox (DSG) Mechatronic -J743- (7-SPEED DIRECT SHIFT GEARBOX)
   • Pin Arrangements Pin Arrangements Direct Shift Gearbox (DSG) Mechatronic -J743-
9. 9 -  NOX Sensor Control Module -J583- / -GX30-
   • for vehicles with engine codes DCPC, DCPE, DEWA, DEWB, DMGA, DMKC
   • Component Location NOX SENSOR CONTROL MODULE -J583- / -GX30- COMPONENT LOCATION AND CONNECTOR END VIEW
   • Pin Arrangements Pin Arrangements NOX Sensor Control Module -J583- / -GX30-
   • for vehicles in engine compartment, front  -23- NOX Sensor Control Module -J583- / -GX30-
10. 10 -  All-Wheel Drive Control Module -J492-
    • Component location on transmission ALL-WHEEL DRIVE CONTROL MODULE -J492- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements All-Wheel Drive Control Module -J492-
11. 11 -  Wiper Motor Control Module -J400-
    • Component location left-hand drive vehicles WIPER MOTOR CONTROL MODULE -J400- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Component location right-hand drive vehicles mirror-inverted
    • Pin Arrangements, left-hand drive vehicles Pin Arrangements, Left-Hand Drive, Wiper Motor Control Module -J400-
    • Pin Arrangements right-hand drive vehicles Pin Arrangements, Right-Hand Drive, Wiper Motor Control Module -J400-
12. 12 -  Engine Control Module (ECM) -J623-
    • Component location, 196-pin Engine Control Module (ECM) -J623-, 196-PIN
    • Component location, 315-pin Engine Control Module (ECM) -J623-, 315-PIN
    • Component location, 280-pin Engine Control Module (ECM) -J623-, 280-PIN
    • Component location, 336-pin Engine Control Module (ECM) -J623-, 336-PIN
13. 13 -  Transmission Control Module (TCM) -J217-
    • Component Location Transmission Control Module (TCM) -J217-
    • Pin Arrangements Pin Arrangements Transmission Control Module (TCM) -J217-
14. 14 -  Left LED Parking Lamp/DRL Module -L176-
    • Component location (8G0, 8G1, 8G4), through June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin arrangement (8G0, 8G1, 8G4), through June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
15. 15 -  ABS Control Module -J104-
    • Component Location ABS CONTROL MODULE -J104- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements ABS Control Module -J104-
16. 16 -  Left light control module -J1018-
    • Component location (8G0, 8G1, 8G4), through June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin arrangement (8G0, 8G1, 8G4), through June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
17. 17 -  Distance Regulation Control Module 2 -J850-
    • Component Location DISTANCE REGULATION CONTROL MODULE 2 -J850- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Distance Regulation Control Module 2 -J850-
18. 18 -  Left LED Headlamp Power Output Stage 1 -A31-
    • Component location (8G0, 8G1, 8G4), through June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Component Location (8IT, 8IY), from June 2020 CONTROL MODULES ON FRONT HEADLAMP -MX1- / -MX2- (8IT, 8IY), FROM JUNE 2020
    • Pin arrangement (8G0, 8G1, 8G4), through June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
    • Pin arrangement (8IT, 8IY), from June 2020 Pin Arrangements Front Left Headlamp -MX1- / Front Right Headlamp -MX2-
19. 19 -  Control unit for electric compressor -J1123-
    • For vehicles with 48 V hybrid system
    • Component Location CONTROL UNIT FOR ELECTRIC COMPRESSOR -J1123- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Control Unit For Electric Compressor -J1123-
20. 20 -  Starter generator -C29-
    • for vehicles with 12 V hybrid system
    • for vehicles with 48 V hybrid system  -25- Starter generator -C29-
    • Component Location STARTER GENERATOR -C29- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Starter Generator -C29-
21. 21 -  Power Steering Control Module -J500-
    • Component Location POWER STEERING CONTROL MODULE -J500- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Power Steering Control Module -J500-
22. 22 -  Radiator Fan Control Module -J293-
    • Component Location with Radiator 400 watt or 600 watt RADIATOR FAN CONTROL MODULE -J293-, WITH 400 WATT OR 600 WATT
    • Component Location with Radiator 800 watt or 1200 watt RADIATOR FAN CONTROL MODULE -J293- / -J671-, WITH 800 WATT OR 1200 WATT
    • Pin Arrangements with Radiator Fan 400 watt or 600 watt Pin Arrangements Radiator Fan Control Module -J293-, With 400 Watt Or 600 Watt
    • Pin Arrangements with Radiator Fan 800 watt or 1200 watt Pin Arrangements Radiator Fan Control Module -J293- / -J671-, With 800 Watt Or 1200 Watt
23. 23 -  NOX Sensor Control Module -J583- / -GX30-
    • for vehicles with engine code DEZB, DEZE, DFBA, DTPA, DTNA, DTNB, DFVA, DESA, DETA, DETB, DEUA, DEUB
    • Component Location NOX Sensor Control Module -J583- / -GX30-, FOR ENGINE CODES DEZB, DEZE, DFBA, DTPA, DTNA, DTNB, DFVA, DESA, DETA, DETB, DEUA, DEUB
    • Pin Arrangements Pin Arrangements NOX Sensor Control Module -J583- / -GX30-
24. 24 -  Radiator Fan Control Module 2 -J671-
    • Component Location with Radiator 800 watt or 1200 watt RADIATOR FAN CONTROL MODULE -J293- / -J671-, WITH 800 WATT OR 1200 WATT
    • Pin Arrangements with Radiator Fan 800 watt or 1200 watt Pin Arrangements Radiator Fan Control Module -J293- / -J671-, With 800 Watt Or 1200 Watt
25. 25 -  Starter generator -C29-
    • For vehicles with 48 V hybrid system
    • Component Location STARTER GENERATOR -C29- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Starter Generator -C29-
26. 26 -  Distance Regulation Control Module -J428-
    • Component Location DISTANCE REGULATION CONTROL MODULE -J428- COMPONENT LOCATION AND CONNECTOR END VIEW
    • Pin Arrangements Pin Arrangements Distance Regulation Control Module -J428-
