Lighting Systems Component Views (RHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Instrument Panel and Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Inflatable Restraint I/P Module
2	Analog Clock
3	Sunload/Ambient Light Sensor
4	Speaker - Front Midrange (UQS)
5	Turn Signal/Multifunction Switch
6	Instrument Panel Cluster (IPC)
7	Inflatable Restraint Steering Wheel Module
8	Windshield Wiper/Washer Switch
9	Dimmer Switch
10	Driver Information Center (DIC) Switch
11	Data Link Connector (DLC)
12	Courtesy Lamp - Right Footwell
13	HVAC Control Module
14	Inside Air Temperature Sensor
15	Traction Control Switch
16	Cigar Lighter
17	Inflatable Restraint I/P Module Indicator
18	Auxiliary Power Outlet - Center Console 1
19	Auxiliary Power Outlet - Center Console 2 (UQS)
20	Speaker - Center Console (UQS)
21	Rear Video Display (U42)
22	Tow/Haul Switch
23	Hazard Switch
24	Rear Window Defogger Switch
25	Courtesy Lamp - Right Footwell
26	Radio/CD/DVD/Navigation Unit

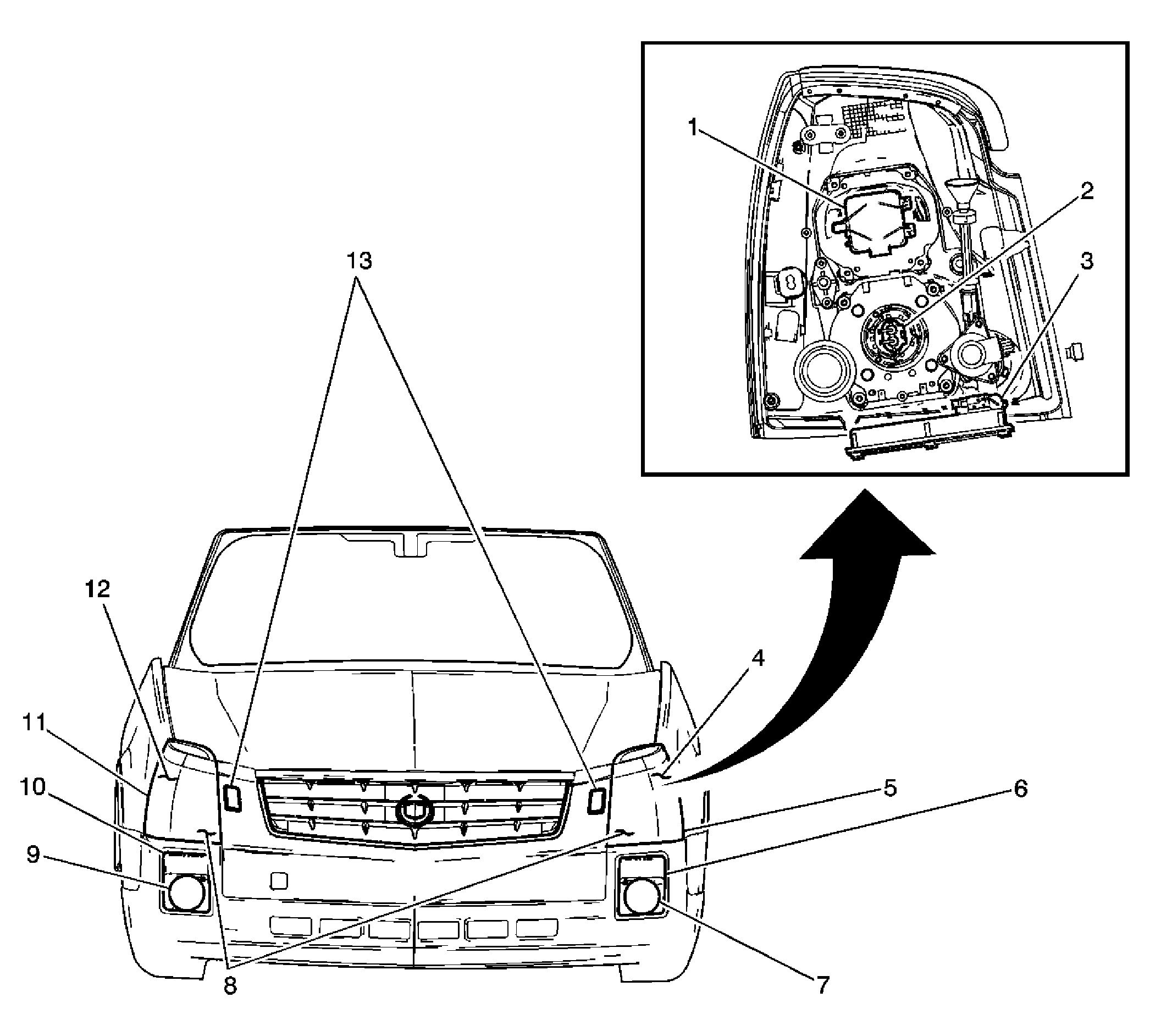

Fig 2: Identifying Front Exterior Lights (w/TT6/TT7)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Headlamp - Low Beam - Left, Right Similar
2	Headlamp - High Beam - Left, Right Similar
3	Headlamp Ballast - Left, Right Similar (TR7)
4	Marker Lamp - Left
5	Headlamp Assembly - Left
6	Turn Signal Lamp - LF
7	Fog Lamp - LF
8	Park Lamp - Right/Left
9	Fog Lamp - RF
10	Turn Signal Lamp - RF
11	Headlamp Assembly - Right
12	Marker Lamp - Right
13	Headlamp Washer Fluid Nozzle - Left/Right (XA7)

Fig 3: Identifying Front Exterior Lights (w/o TT6/TT7)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Turn Signal Lamp - RF, LF Similar
2	Fog Lamp - RF, LF Similar
3	Headlamp - Low Beam - Left, Right Similar
4	Marker Lamp - Left, Right Similar
5	Headlamp - High Beam - Left, Right Similar
6	Park Lamp - Left, Right Similar

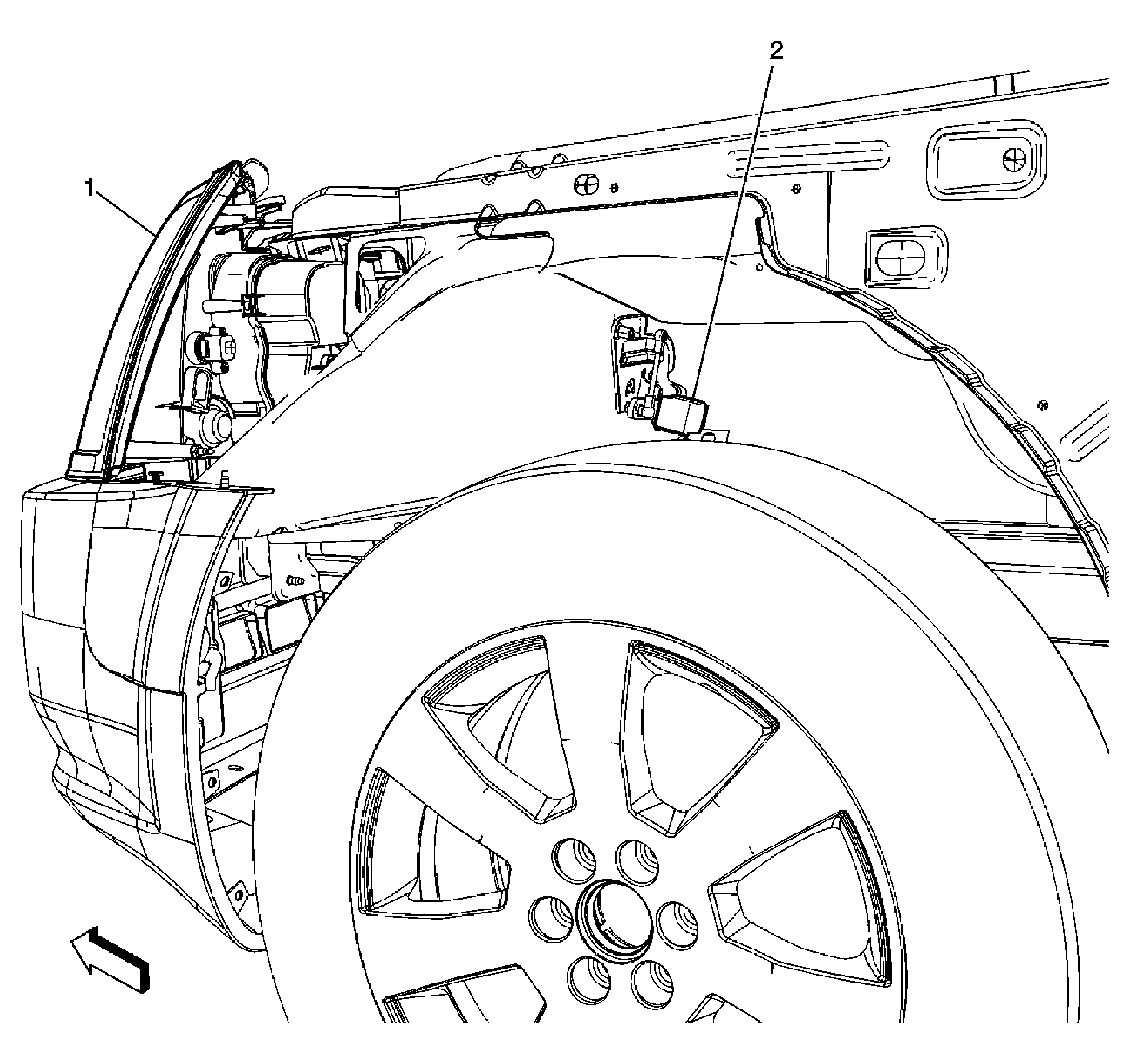

Fig 4: Identifying Left Front Wheel Well Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Headlamp Assembly - LF
2	Headlamp Leveling Sensor - Front (TR7)

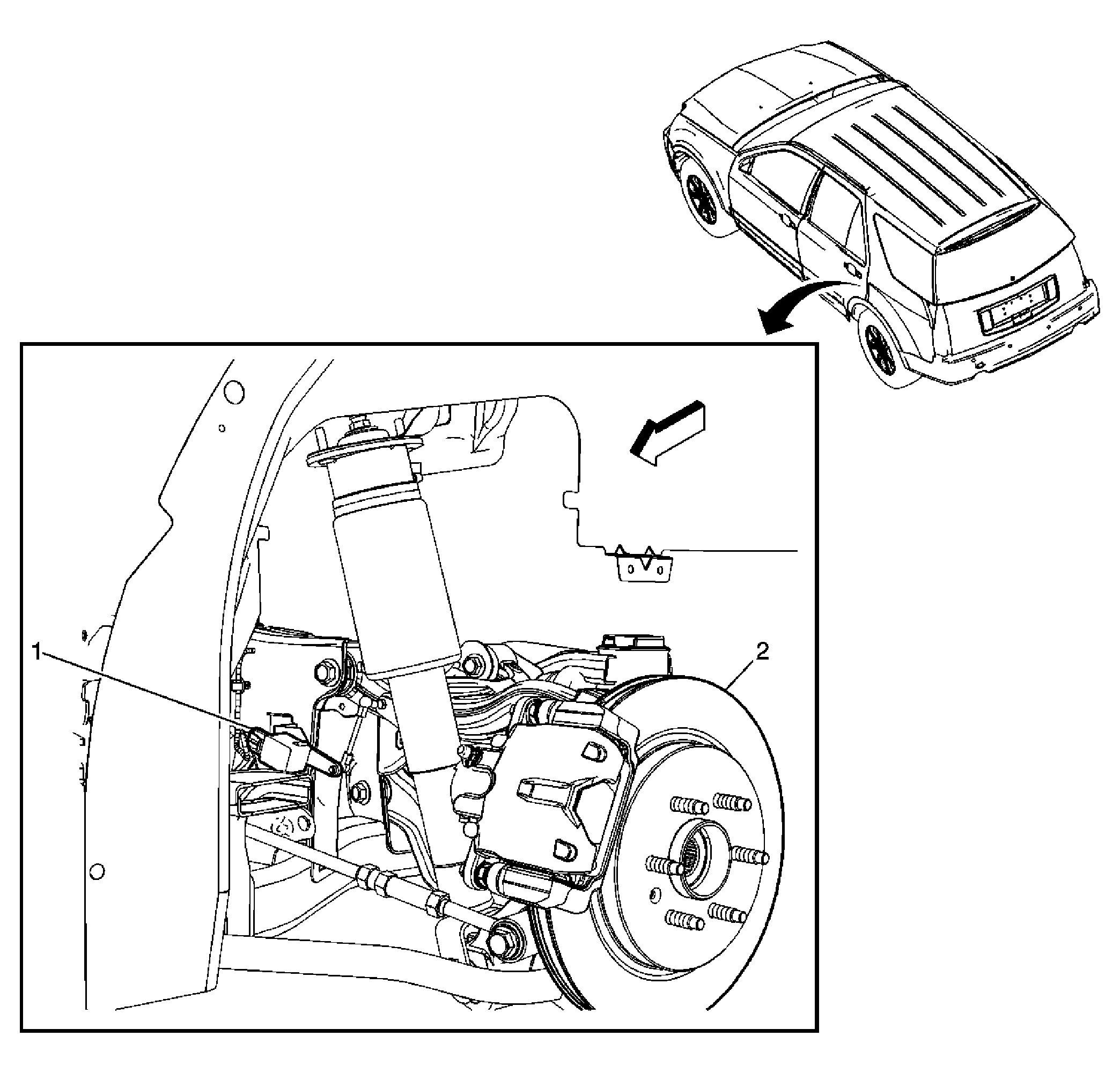

Fig 5: Identifying Left Rear Wheel Well Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Headlamp Leveling Sensor - Rear (TR7)
2	Rotor - LR

Fig 6: Identifying Hydraulic Brake Components (RHD)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Brake Fluid Reservoir
2	Brake Fluid level Switch
3	Adjustable Accelerator Pedal Position Sensor (JF4)
4	Adjustable Pedal Motor (JF4)
5	Accelerator Pedal Position (APP) Sensor
6	Park Brake Switch
7	Adjustable Brake Pedal Position Sensor (JF4)

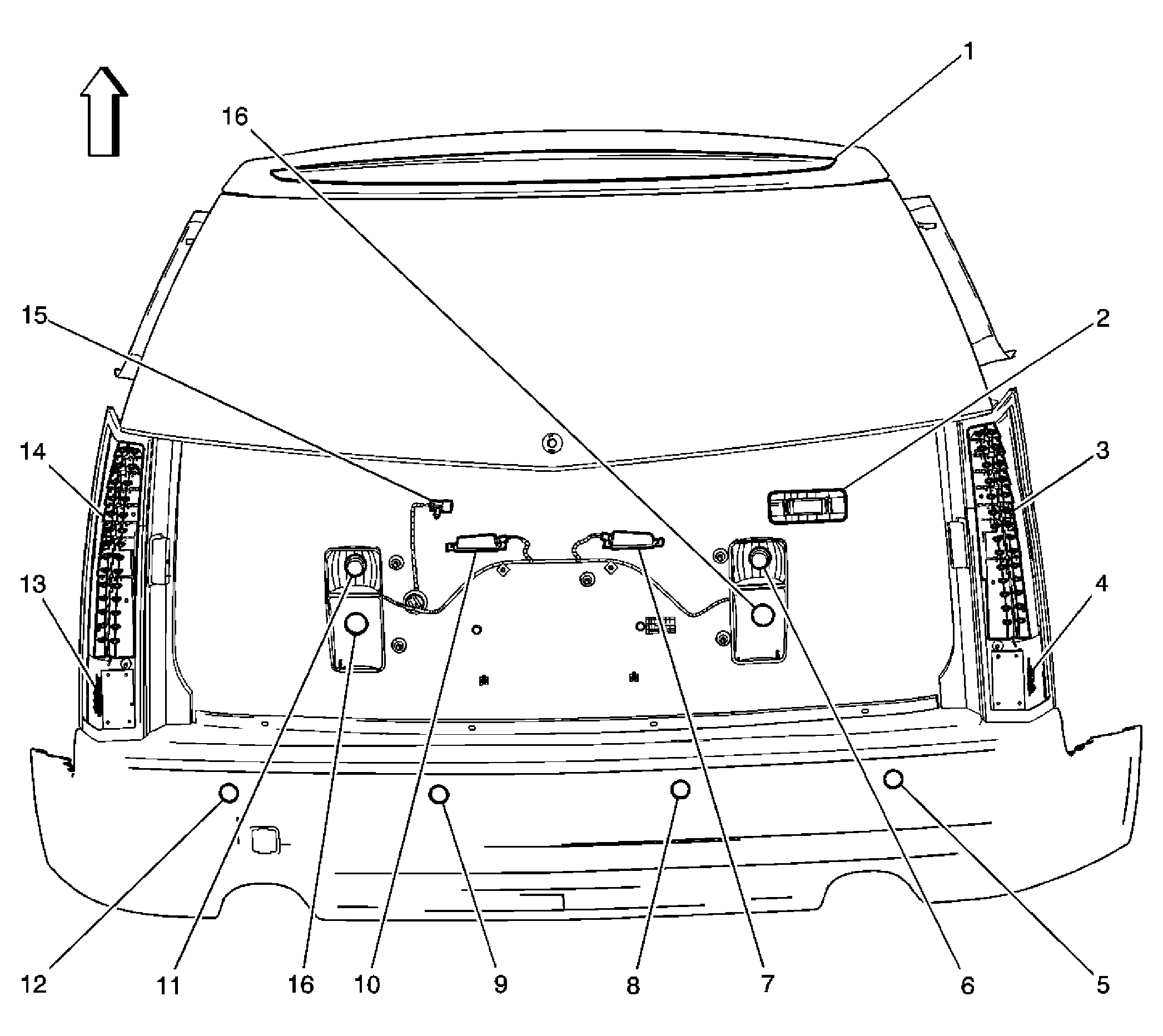

Fig 7: Identifying Rear Exterior Lights

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Courtesy Lamp - Liftgate
3	Tail Lamp Assembly - Right
4	Tail Lamp Drive Module - Right
5	Object Sensor - RR Corner
6	Backup Lamp - Right
7	License Lamp - Right
8	Object Sensor - RR Middle
9	Object Sensor - LR Middle
10	License Lamp - Left
11	Backup Lamp - Left
12	Object Sensor - LR Corner
13	Tail Lamp Drive Module - Left
14	Tail Lamp Assembly - Left
15	C901
16	Fog Lamp - LR/RR (T79)

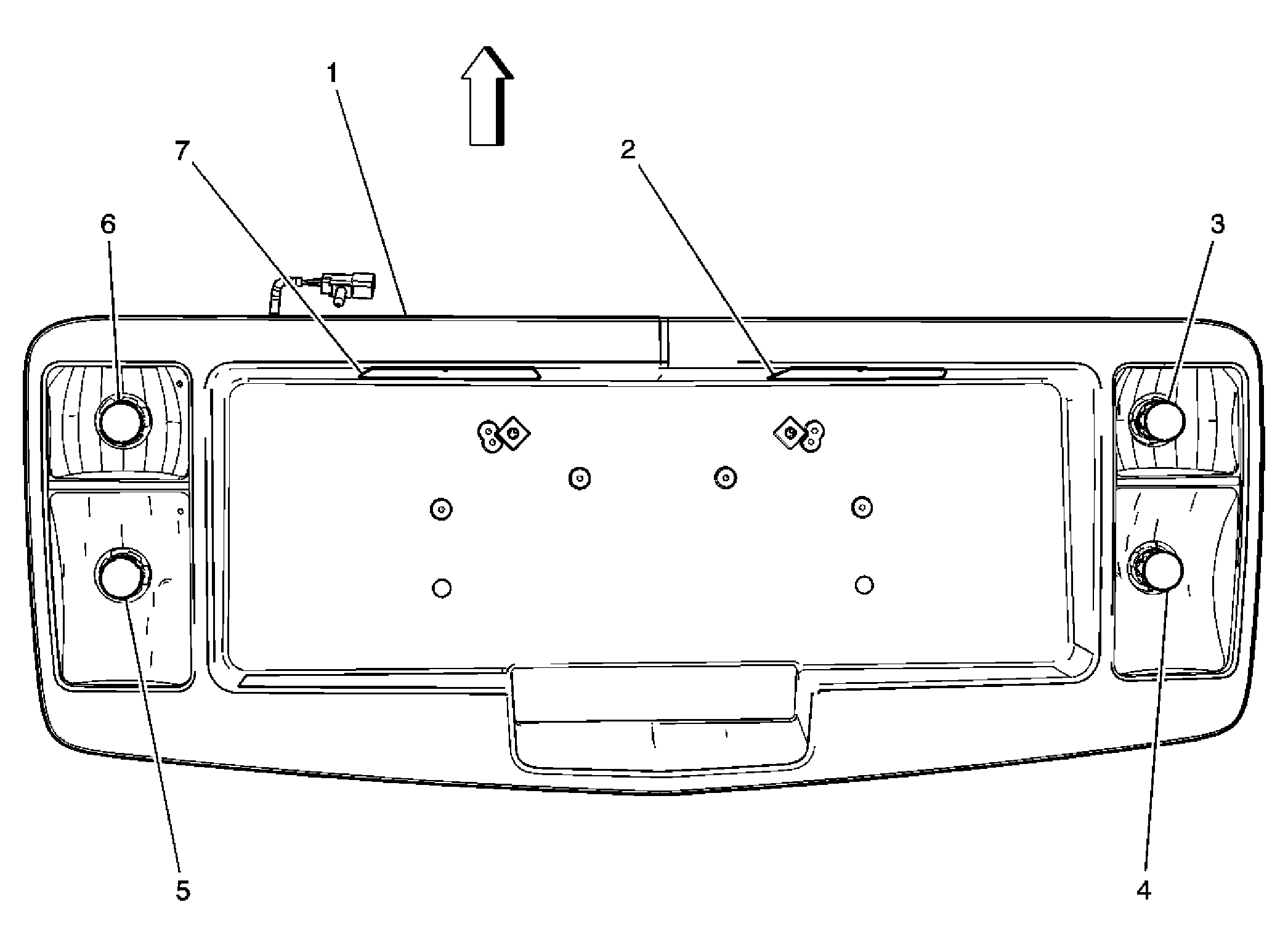

Fig 8: Identifying Tailgate Exterior Lights

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	License Lamp Assembly
2	License Lamp - Right
3	Backup Lamp - Right
4	Fog Lamp - RR (T79)
5	Fog Lamp - LR (T79)
6	Backup Lamp - Left
7	License Lamp - Left

Fig 9: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	Outside Rearview Mirror
2	Courtesy Lamp
3	Driver Door Module (DDM)
4	Door Lock Switch
5	Window Lockout Switch
6	Window Switches
7	Speaker - RF Door
8	Outside Rearview Mirror Switch
9	Memory Seat Switch
10	Heated Seat Switches

Fig 10: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	Outside Rearview Mirror
2	Heated Seat Switches
3	Window Switch
4	Speaker - LF Door
5	Door Lock Switch
6	Courtesy Lamp - LF Door

Fig 11: Identifying Headliner & Overhead Console Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 11

Callout	Component Name
1	Inside Rearview Mirror (ISRVM) Connector
2	Courtesy/Reading Lamp - Front Left
3	Courtesy/Reading Lamp Switch - Front Left
4	Sunshade - Left
5	Garage Door Opener (UG1)
6	Vanity Mirror Lamp Switch - Left
7	Vanity Mirror Lamp Connector - Left
8	Vanity Mirror Lamps - Left
9	Rear Wiper/Washer Switch
10	Blower Motor Switch - Auxiliary (C57)
11	Noise Compensation Microphone (UQS)
12	Vanity Mirror Lamps - Right
13	Sunshade Connector - Right
14	Sunshade - Right
15	Vanity Mirror Lamp Switch - Right
16	Courtesy/Reading Lamp Switch - Front Right
17	Courtesy/Reading Lamp - Front Right
18	Overhead Console Assembly - Center
19	Blower Motor Switch - Rear Auxiliary (C57)
20	Courtesy Lamp - Left Center
21	Courtesy Lamp Switch - Left Center
22	Blower Motor Switch Connector - Rear Auxiliary (C57)
23	Courtesy Lamps Connector
24	Courtesy Lamp Switch - Right Center
25	Courtesy Lamp - Right Center
26	Repeater Lamp - Left, Right Similar (T90)

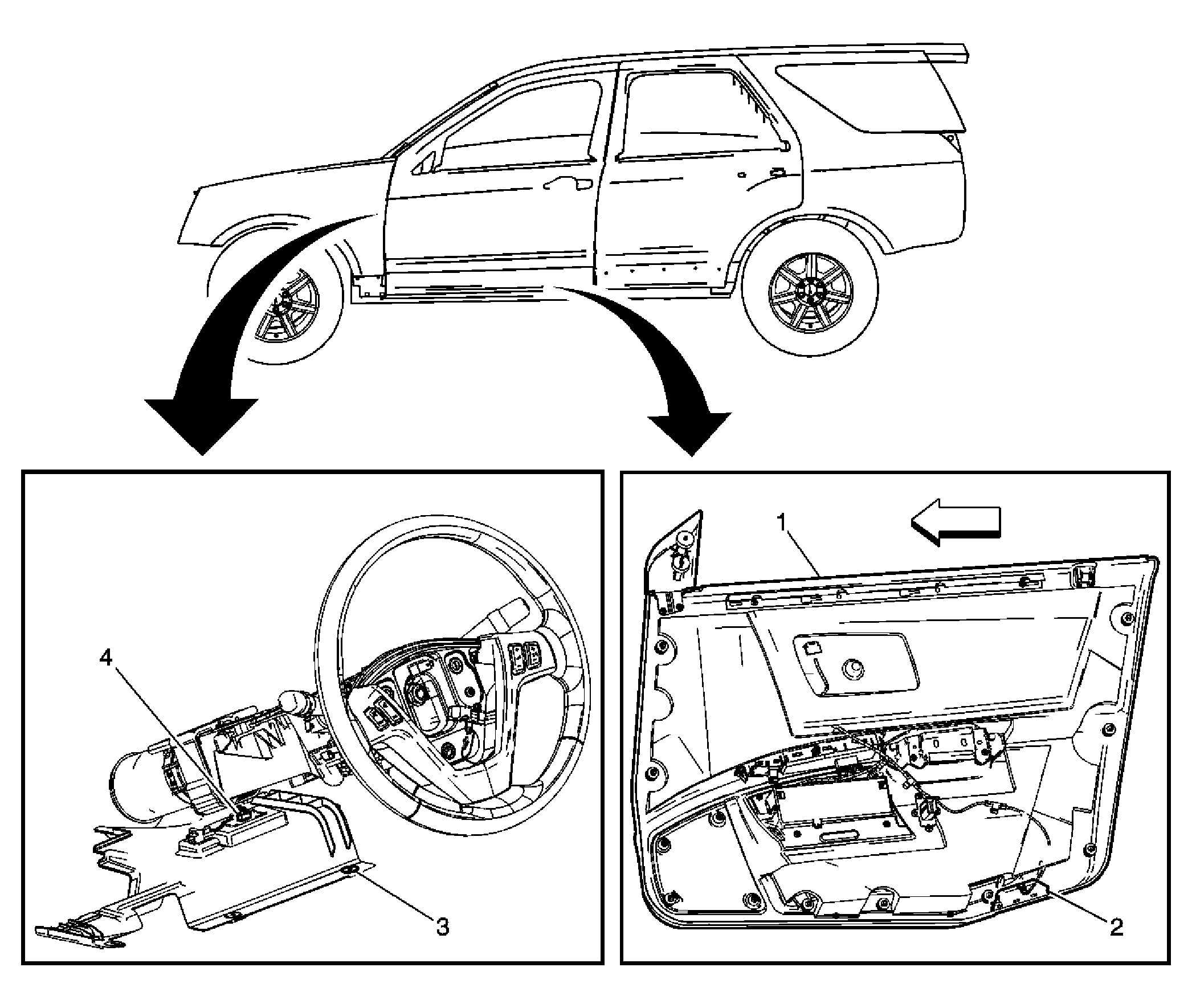

Fig 12: Identifying Door & Footwell Courtesy Lamps

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 12

Callout	Component Name
1	Door - Driver
2	Courtesy Lamp - LF Door, RF Similar
3	Hush Panel
4	Courtesy Lamp - Left Footwell, Right Similar

Fig 13: Identifying Headliner Overhead Lamps

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 13

Callout	Component Name
1	Blower Motor Switch - Front Auxiliary (C57)
2	Blower Motor Switch - Rear Auxiliary (C57)
3	Courtesy/Reading Lamp - Rear
4	Rear Parking Assist (RPA) Display
5	Courtesy/Reading Lamp - Center
6	Courtesy/Reading Lamp - Front

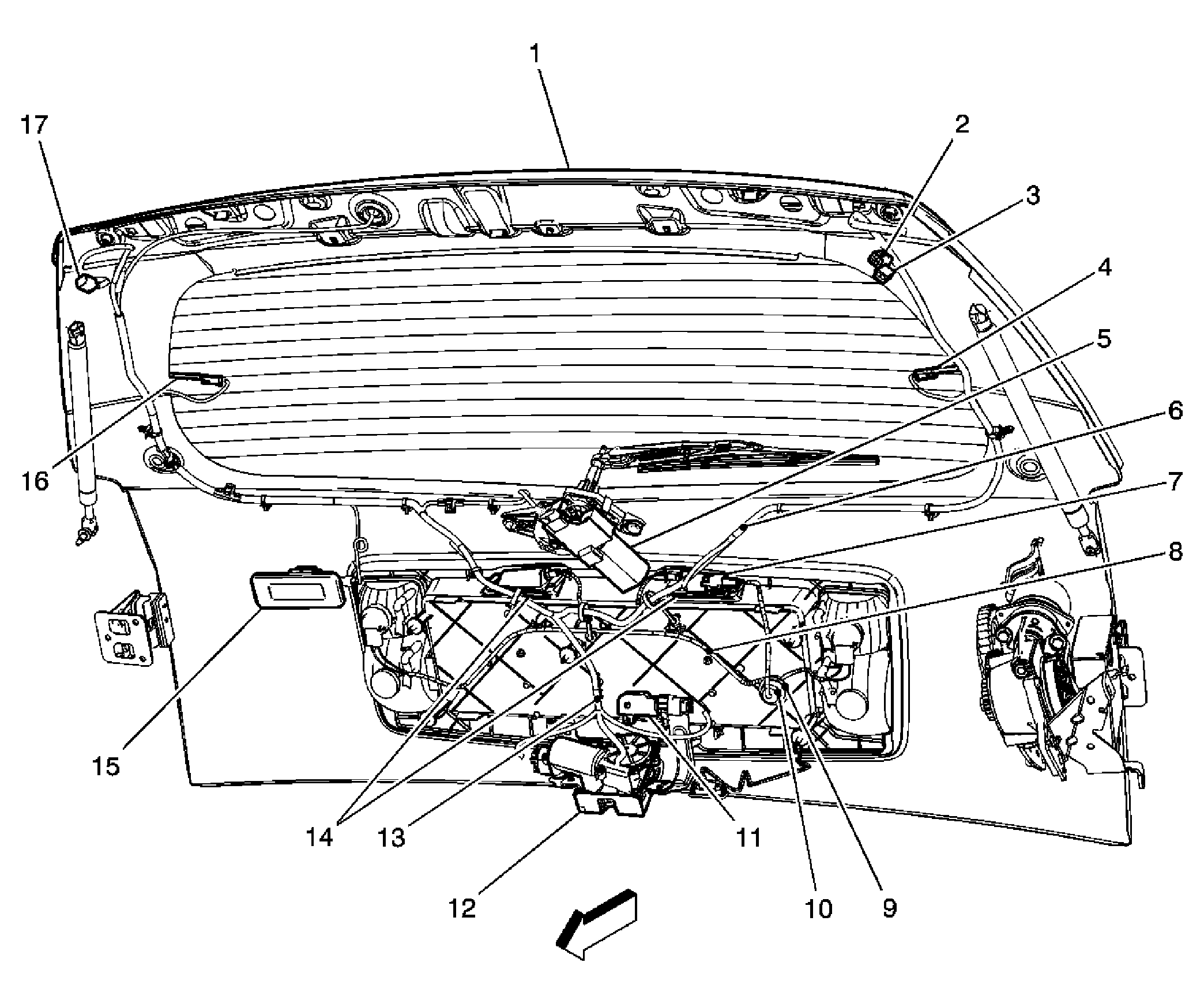

Fig 14: Identifying Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 14

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	C404
3	C403
4	Rear Window Defogger Grid C2
5	Rear Window Wiper Motor
6	S902
7	License Lamp/Backup Lamp Harness
8	S904
9	S903
10	S909
11	Liftgate Handle Switch
12	Liftgate Latch
13	S901
14	License Lamps
15	Courtesy Lamp - Rear Liftgate
16	Rear Window Defogger Grid C2
17	C401
